ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0375
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw (B)
Wire Connector (C)Bolt Nut (D)
Mounting Plate Unit (A)
Turn off the power at fuse or circuit box
Installation Steps
1. Attach the mounting plate unit (A) to the
outlet box by using two mounting screws (B).
2. Adjust the arms of the fixture according to picture on
the package.
3. Rod Connections:
a. Thread the fixture wire from the fixture
through the lower rod, then secure the
lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle
rod and then secure the middle rod onto
the lower rod using the threaded pipe.
c. Thread the fixture wire through the
upper rod, then secure the upper
rod onto the middle rod using the
threaded pipe.
Note: Length adjustable from 23-3/4" to 68-3/4".
Use fewer rods if shorter length is desired.
4. Thread the fixture wire through the canopy kit, then secure the rod assembly to the set threaded pipe of the
canopy kit.

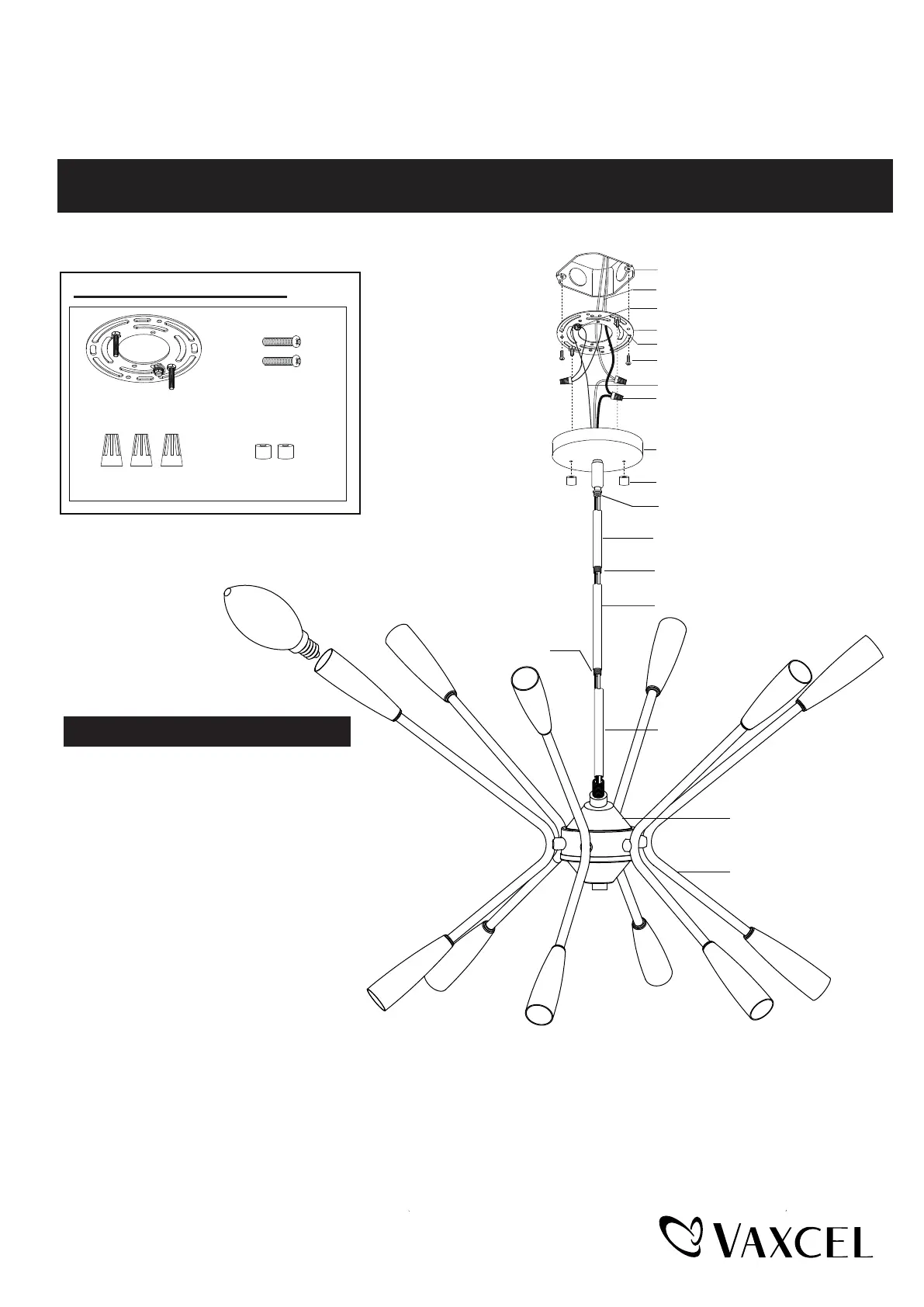

Canopy Kit
Bolt Nut (D)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Threaded Pipe
Lower Rod
Arm
Fixture
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Max.60W Type B Bulb
(not included)
