ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.Read and save this instructions.
P0413
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1.Unscrew the two set screws (DD), remove the ceiling pan (A) from
the mounting plate unit (AA).
2.Attach mounting plate unit (AA) to the outlet box using two mounting
screws (BB).
3.Rod Connections:
a.
Thread the fixture wire through the lower rod, then secure the lower rod
onto the
fixture using the threaded pipe.
b.Thread the fixture wire through the middle rod and then secure the middle
rod onto the lower rod using the threaded pipe.
c.Thread the fixture wire through the upper rod, then secure the upper rod
onto the middle rod using the threaded pipe.
Note: Length adjustable from 34-3/4" to 64-3/4". Use fewer rods if shorter
length is desired.
4.Thread the fixture wires through the canopy kit, then secure the rod
assembly to the set threaded pipe of the canopy kit.
5.Pull out the source wires from the outlet box. Make wire
connections using wire connectors (CC) as follows:
•Connect the hot wire (black insulation) from the fixture
to the black wire from the power source.
•Connect the neutral wire (white insulation) from the
fixture to the white wire from the power source.
•Attach the fixture ground wire (bare wire) to the
mounting plate unit (AA) with the green ground
screw, then depending on local code, connect it to
the house ground wire with the wire connector (CC).
Carefully put all of the wires back into the outlet box.
6.Attach the ceiling pan (A) to the mounting plate unit (AA)
by using two set screws (DD).
240417

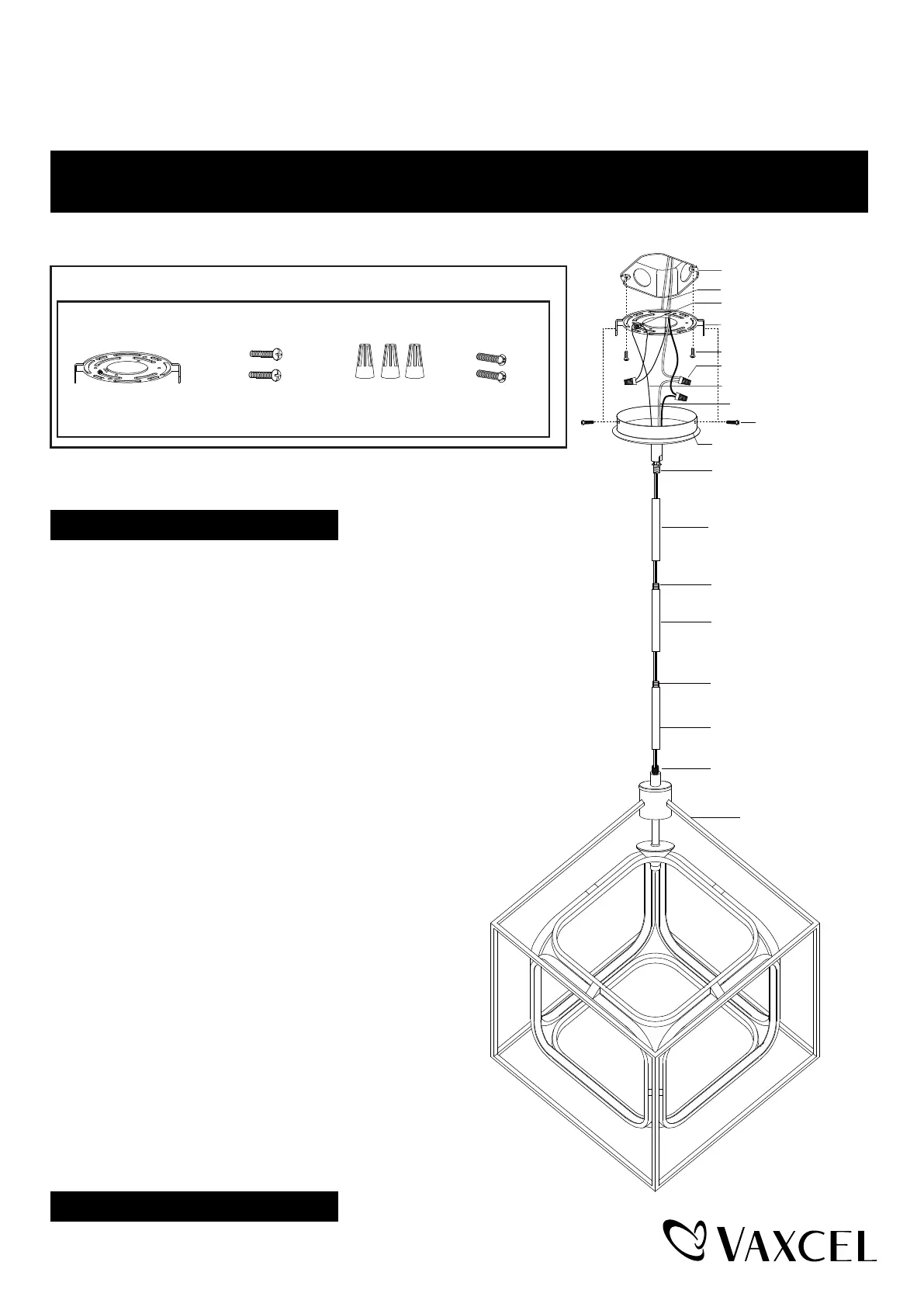

Wire Connector (C)Mounting Screw (B)Mounting plate Unit (A)
Set Screw (D)
Page 1 / 2
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Fixture Wire
Canopy Kit
Set Screw (D)
Set Threaded Pipe
Upper Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Lower Rod
Threaded Pipe
Fixture
