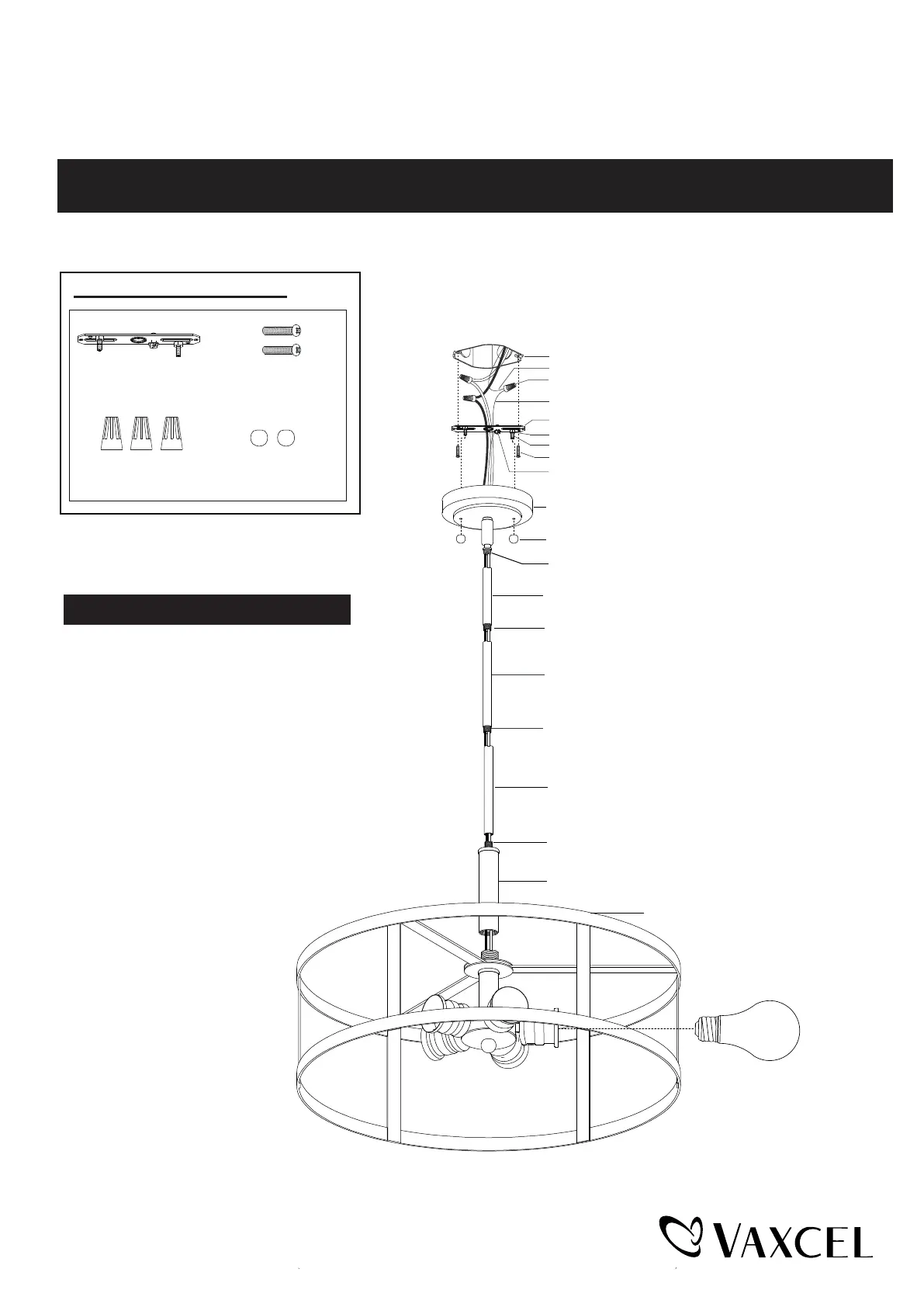

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0376
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw (B)
Wire Connector (C)Bolt Nut (D)
Mounting Strap Unit (A)
Turn off the power at fuse or circuit box
Installation Steps
1. Attach the mounting strap unit (A) to the
outlet box by using two mounting screws (B).
2. Thread the stem onto the fixture.
3. Rod Connections:
a. Thread the fixture wire from the fixture through
the lower rod, then secure the lower rod onto
fixture using the threaded pipe.
b. Thread the fixture wire through the middle
rod and then secure the middle rod onto the
lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod,
then secure the upper rod onto the middle rod
using the threaded pipe.
Note: Length adjustable from
16-3/4" to 70-3/4". Use fewer
rods if shorter length is
desired.
4. Thread the fixture wire
through the canopy kit,
then secure the rod
assembly to the set
threaded pipe of the
canopy kit.
Canopy Kit
Bolt Nut (D)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Threaded Pipe
Lower Rod
Threaded Pipe
Max.60W Type A Bulb
(not included)
Stem
Fixture
Outlet Box
House Ground Wire
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Wire Connector (C)
Fixture Ground Wire
