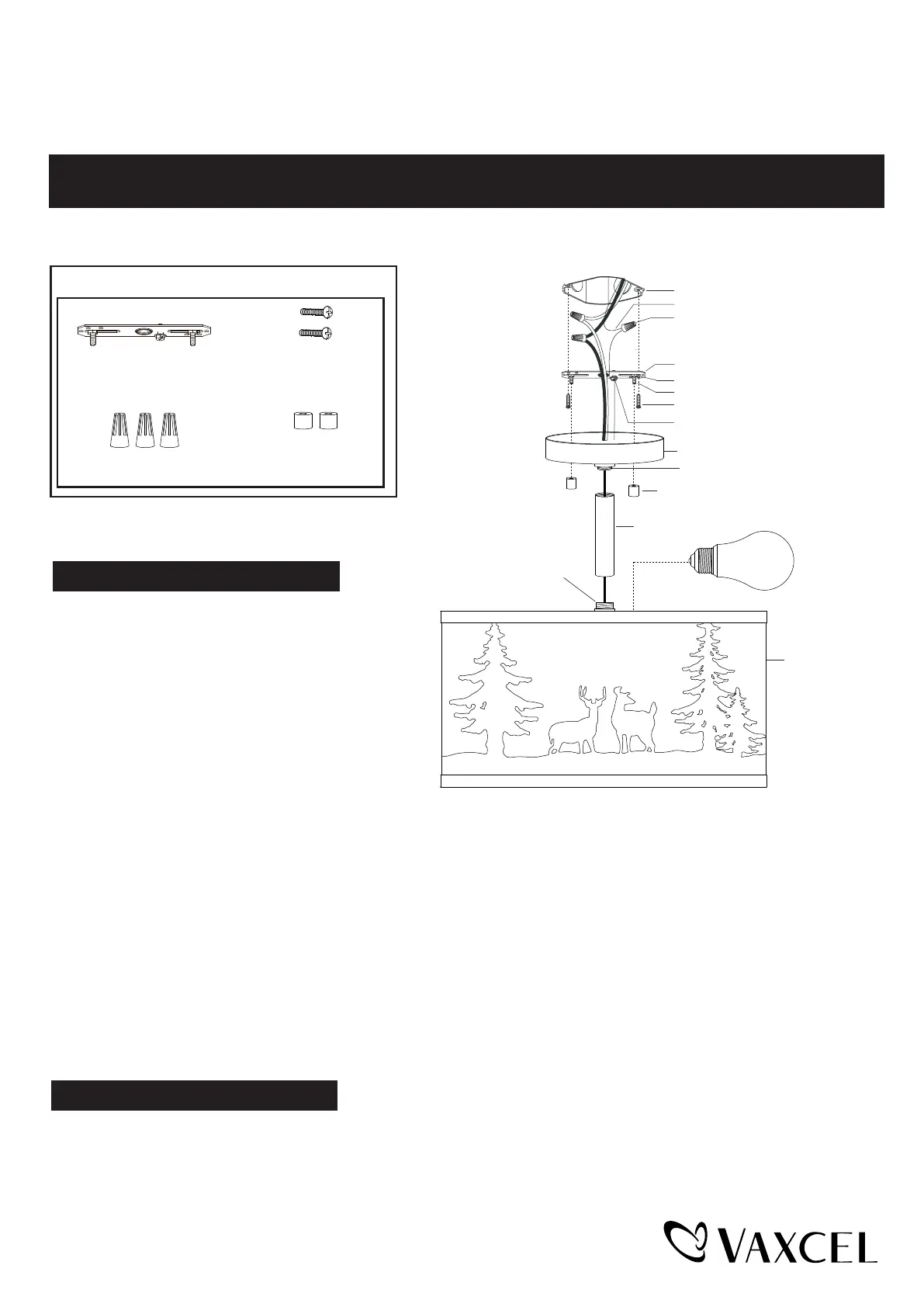

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Bolt Nut (D)
Canopy
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
C0313
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Coupling
Rod
Fixture
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Page 1 / 2
Coupling
Max. 60W Medium
Base Bulb (not included)
240426
Turn on the power at fuse or circuit box
1. Thread the fixture wire from the fixture through the
rod, then secure the rod onto fixture using the
coupling.
2
.
Thread the fixture wire through the canopy, then
secure the rod to the coupling of the canopy.
3. Attach the mounting strap unit (A) to the outlet
box by using two mounting screws (B).
4. Pull out the source wires from the outlet box. Make
wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting strap unit (A) with green ground screw,
then depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
5. Attach the canopy to the mounting
strap
unit (A) by inserting the fixture mounting screws, then secure it with
two bolt nuts (D).
6. Install 3 x 60W Max. Medium base bulbs (not included). See relamping label at socket area or packaging
for maximum wattage allowed.
Turn off the power at fuse or circuit box
Installation Steps
Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting Strap Unit (A)
Bolt Nut (D)
