1. Attach the mounting plate to the outlet box by using two mounting screws.
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors as follows:
---Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.
---Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.
---Attach the fixture grounding wire to the mounting plate with the green grounding screw. Then connect it to the house
grounding wire with a wire connector. If your outlet box does not have a house grounding wire, then wrap the fixture
grounding wire around the green grounding screw.
Carefully put the wires back into the outlet box.
Glass bracket
Interior Glass Shade (H)
Bulb T10 Max.75W
(not included)
Back Plate
Mounting Screw (B)
Headless Screw (D)
Mounting Plate (A)
House Grounding Wire
Green Grounding Screw (C)
Fixture Grounding Wire
Wire Connector (E)
Outlet Box
Fixture Wire
181012
Bulb T10 Max.75W
(not included)
Exterior Glass Shade (G)
“ L ” Screwdriver (F)

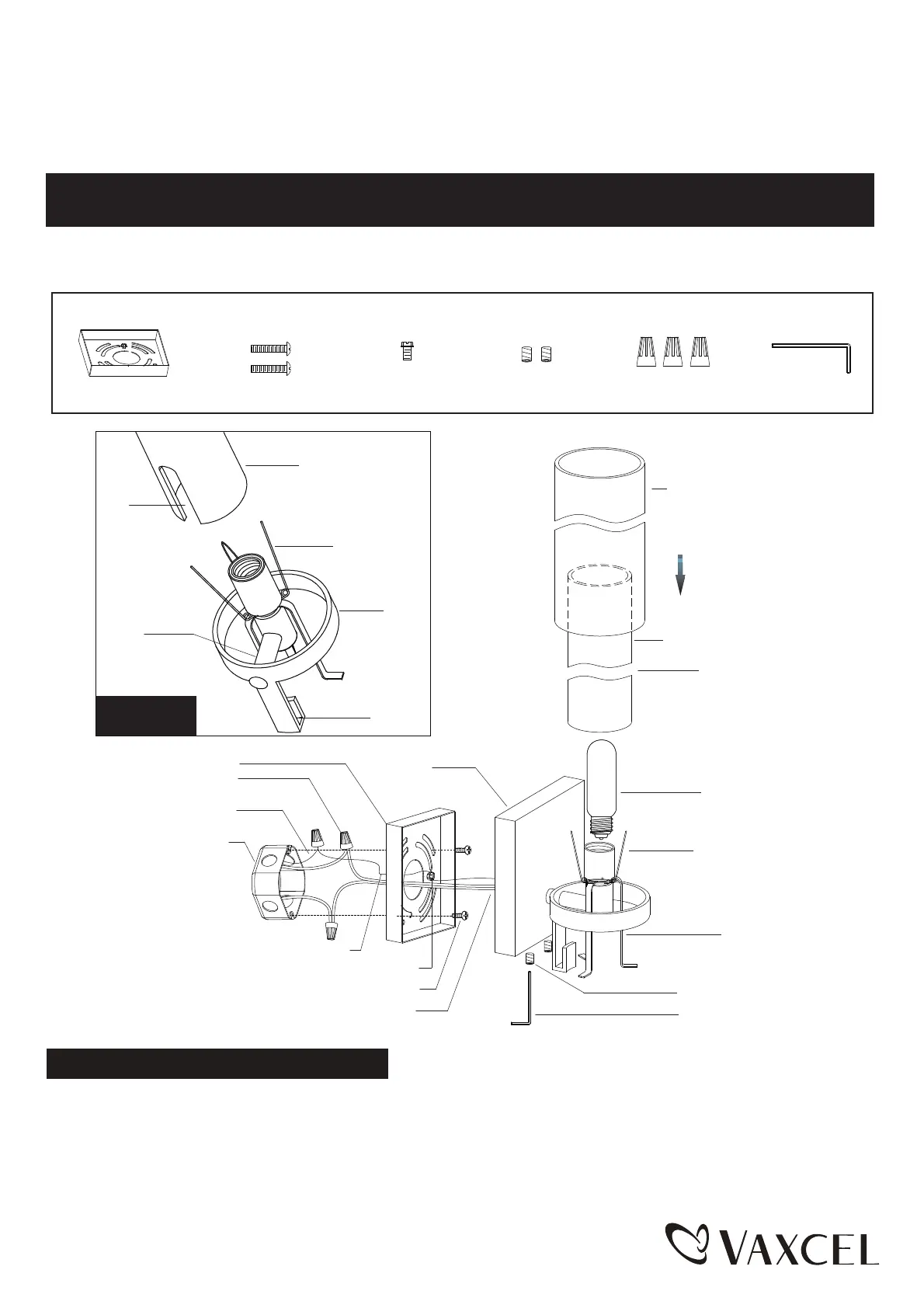

Figure.1
Interior Glass Shade
Slot
Fixture
arm
Slot
Socket Spring
Socket Spring
Mounting Screw (B)
Green Grounding
Screw (C)
“ L ” Screwdriver (F)
Wire Connector (E)
Mounting Plate (A)
Headless Screw (D)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0049 / W0125 / W0309
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Assembly Instructions:
Turn off the power at fuse or circuit box.
Page 1
