ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.
Installation Steps:

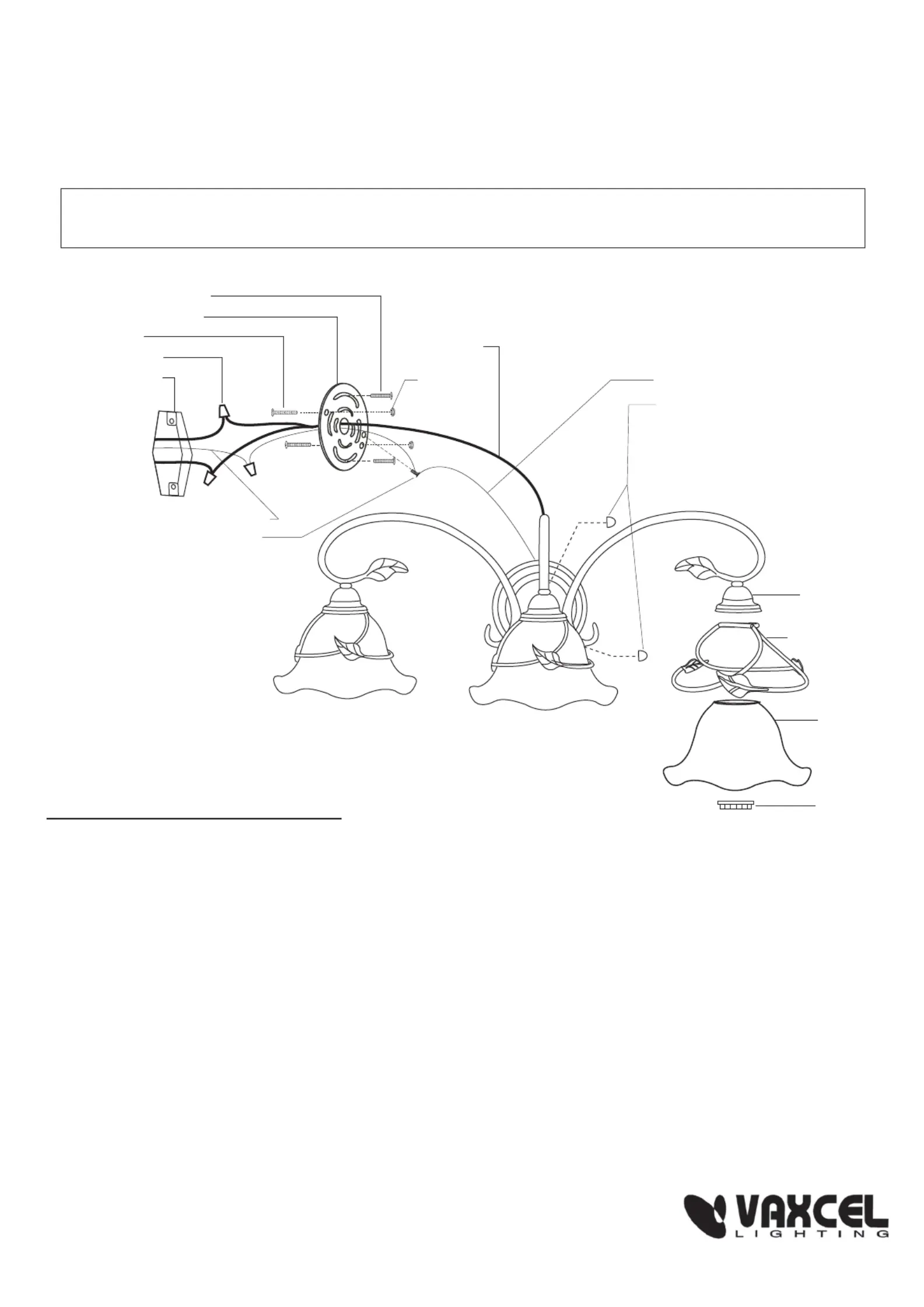

VL38843
Mounting Screw
Fixture Wire
Fixture Grounding Wire
Bolt Nut
Lock Nut
Mounting Plate
Housing Grounding Wire
Green Grounding Screw
Wire Nut
Screw
Wall Box
050708
Socket Ring
Glass Shade
Glass Holder
Decoration Ring
1. Thread two screws to the mounting plate outward, and then secure with two lock nuts.
(You can adjust the length of the screws if necessary.)
2. Attach the mounting plate to the wall box by using two mounting screws.
3. Make wire connections with wire nuts:
---The black wire from light to the black wire from power source.
---The white wire from light to the white wire from power source.
---Attach the xture grounding wire to the mounting plate with the green grounding screw.
Then connect it to the house grounding wire with the wire nut.
Carefully tuck wires back into the wall box.
4. Attach the back plate to the mounting plate by inserting the screws, and then secure with two
bolt nuts.
5. Place the glass shades into the decoration rings carefully, attach then upward to the glass
holders, and then secure with socket rings.
6. Install bulbs. (Please do not exceed the maximum capacity that is recommended on the
package.)
7. Turn on the power at fuse or circuit box.
