ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTIONS.
C0266
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Outlet Box
House Ground Wire
Fixture Mounting Screw
Mounting Strap Unit (A)
Green Ground Screw
Canopy
Lock Nut
Mounting Screw (B)
Fixture Ground Wire
Wire Connector (C)

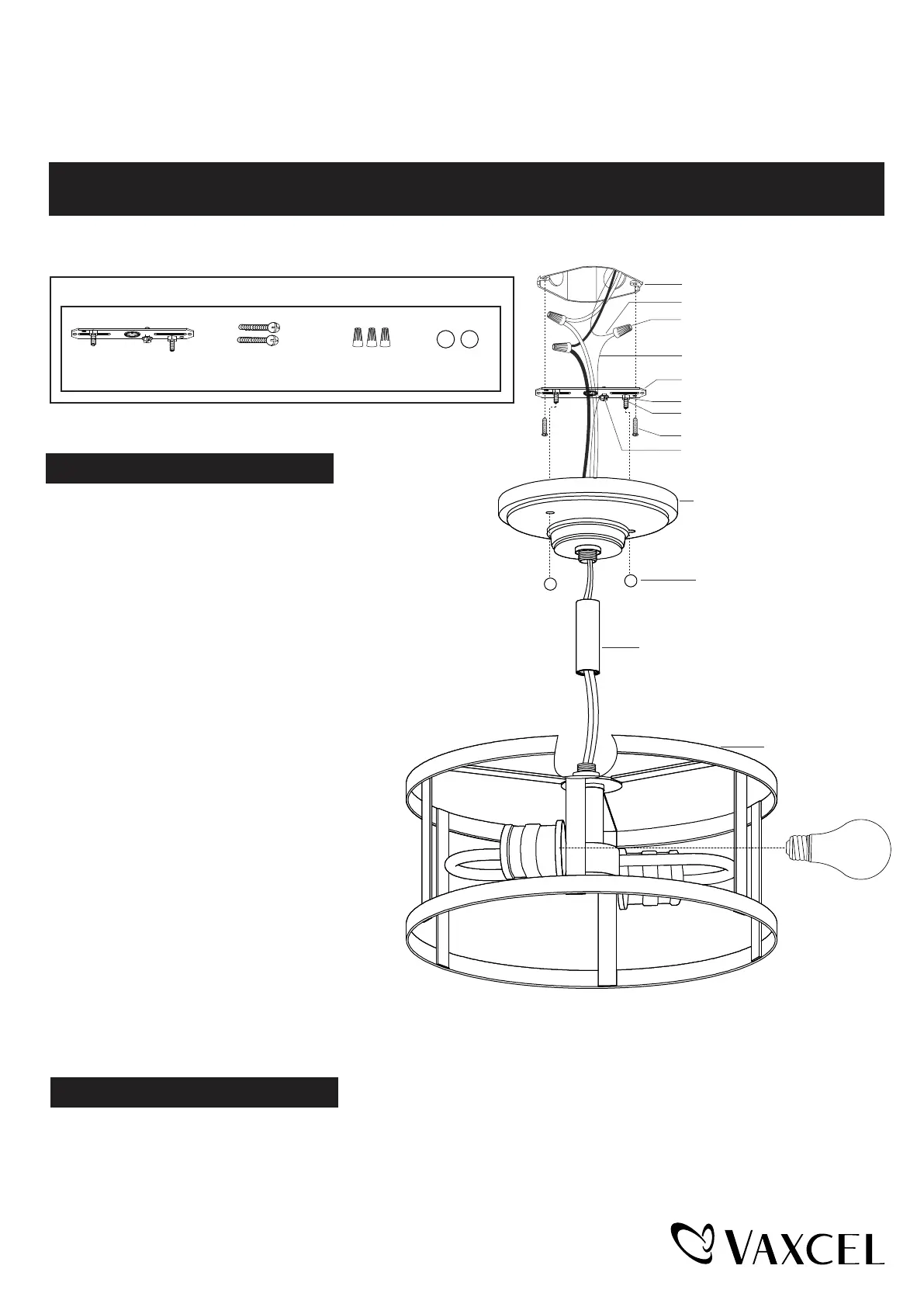

1. Attach the mounting strap unit (A) to the outlet box by
using two mounting screws (B).
2. Thread the wires through the stem and canopy, and
then connect the fixture and canopy through by the
stem.
3. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C)
as follows:
---Connect the hot wire (black insulation)
from the fixture to the black wire from the
power source.
---Connect the neutral wire (white insulation)
from the fixture to the white wire from the
power source.
---Attach the fixture grounding wire (bare wire)
to the mounting strap unit (A) with the green
ground screw, and then connect it to house
ground wire with the wire connector (C).
Carefully put the wires back into the outlet
box.
4. Attach the canopy to the mounting strap unit (A)
by inserting the fixture mounting screws, then
secure it with two bolt nuts (D).
5.
Install 3 x 60W max.medium base bulbs (not included).
See relamping label at socket area or packaging for maximum wattage allowed.
Mounting Screw (B)Wire Connector (C)Mounting Strap Unit (A)Bolt Nut (D)
Turn on the power at fuse or circuit box.
Max.60W Type A Bulb
(not included)
Bolt Nut (D)
Fixture
Stem
220221
