Hardware Package (
included
):
Mounting Screw (B)Wire Connector (C) Bolt Nut (D)
Mounting Plate Unit (A)
W
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0472
Page 1 / 2
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A)
from the backplate.
2. Attach mounting plate unit (A) to the outlet box using two mounting screws (B).
Adjust the length of the preinstalled fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up
horizontally to make the fixture level.

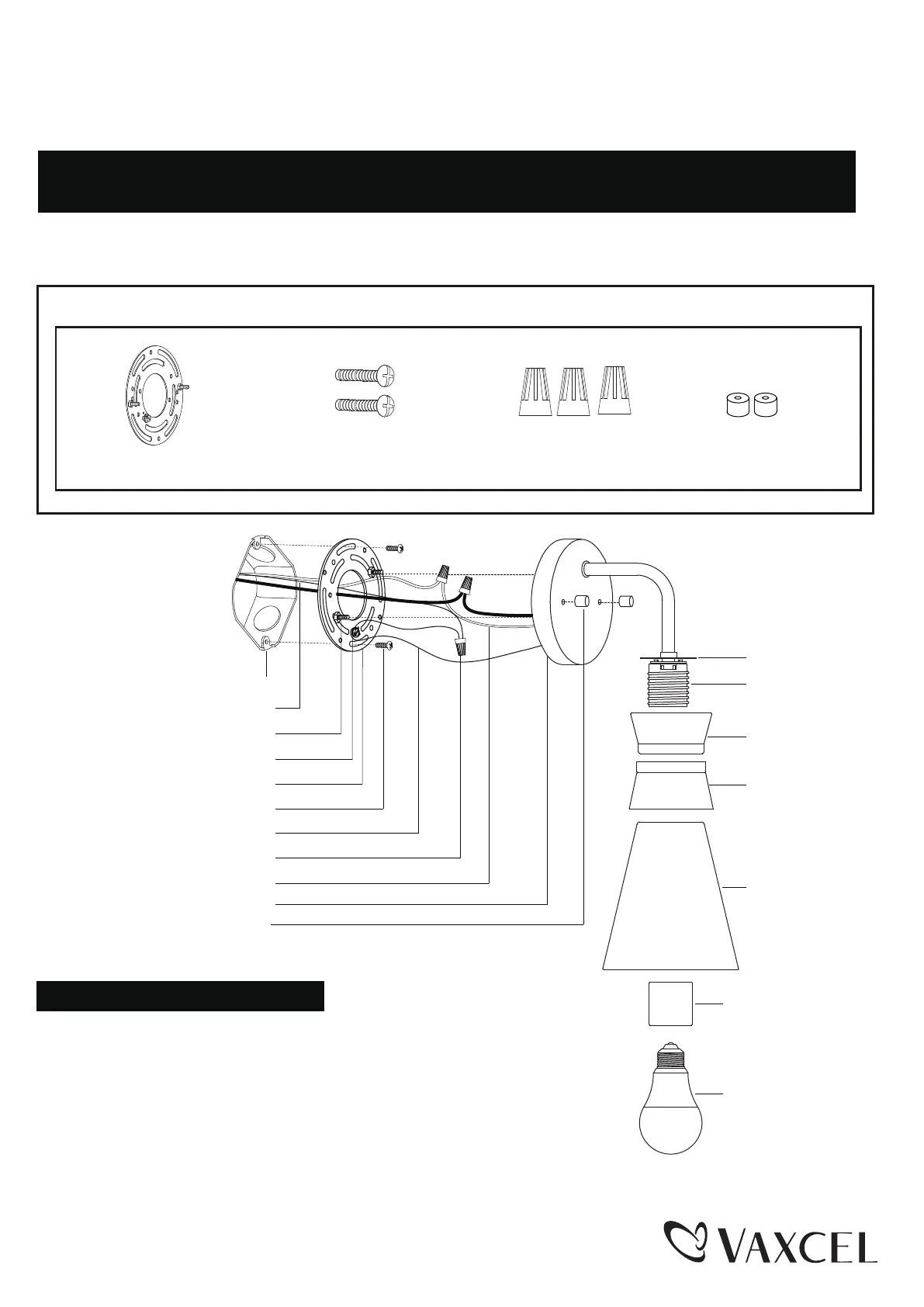

Max. 60W Medium
Base bulb (not included)
Socket Ring
Top Glass Shade
Metal Ring
Bottom Glass Shade
Socket
Glass Holder
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Fixture Wire
Backplate
Fixture Ground Wire
Fixture Mounting Screw
Bolt Nut (D)
240430
