ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0463 / W0464

Set screw (D)

Mounting Screw (B)

Wire Connector (C)

Mounting Plate Unit (A)

Turn off the power at fuse or circuit box

Installation Steps

1. Unscrew the two set screws (D) and remove the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).

Note: Make sure that two set holes are lined up vertically to make the fixture level.

Page 1 / 2

Hardware Package (included):

W

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

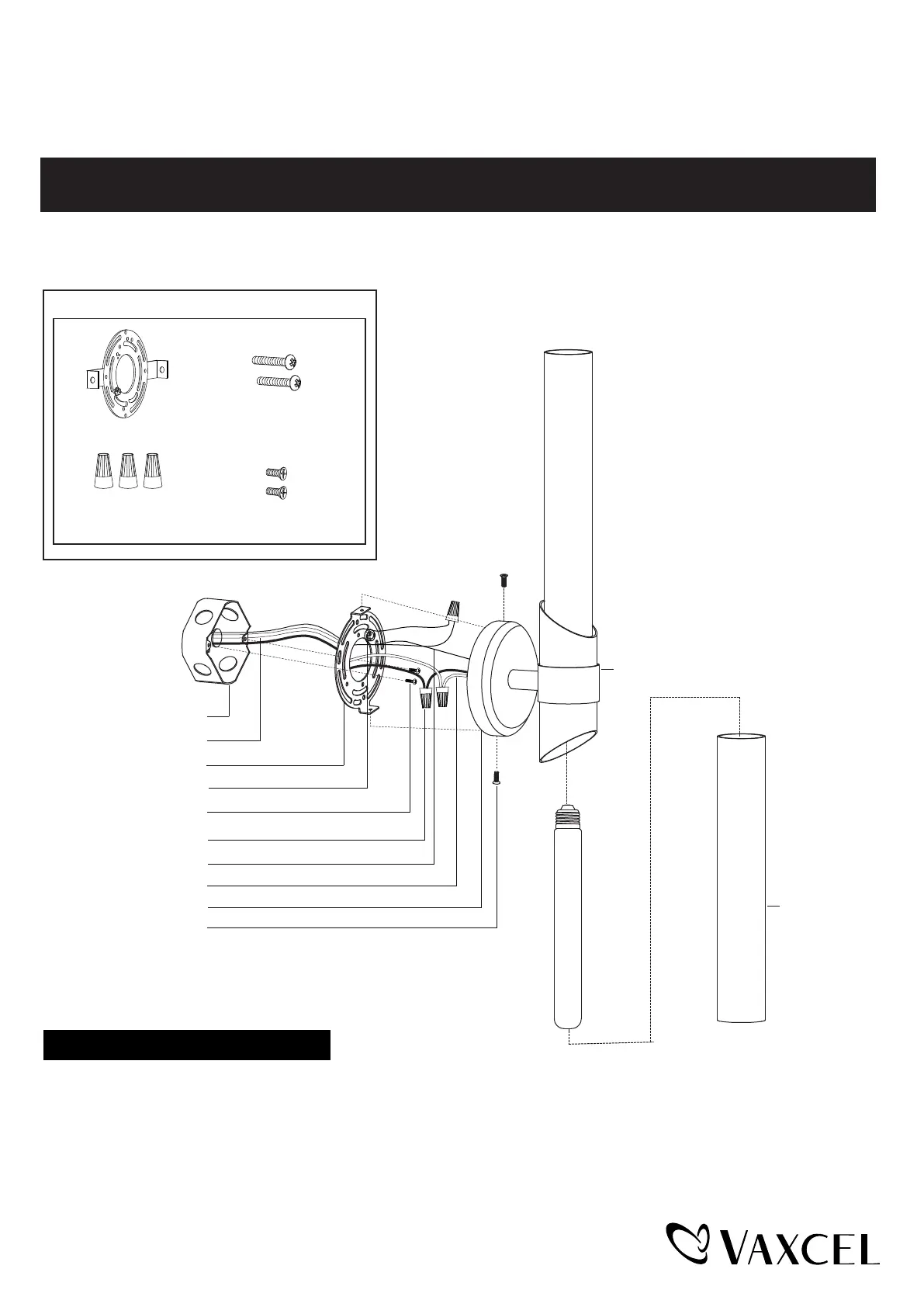

Fixture Ground Wire

Wire Connector (C)

Mounting Plate Unit (A)

House Ground Wire

Fixture Wire

Mounting Screw (B)

Backplate

Set Screw (D)

Outlet Box

Green Ground Screw

Max. 60W Medium Base Bulb

(not included)

Glass Shade

Fixture

231120
