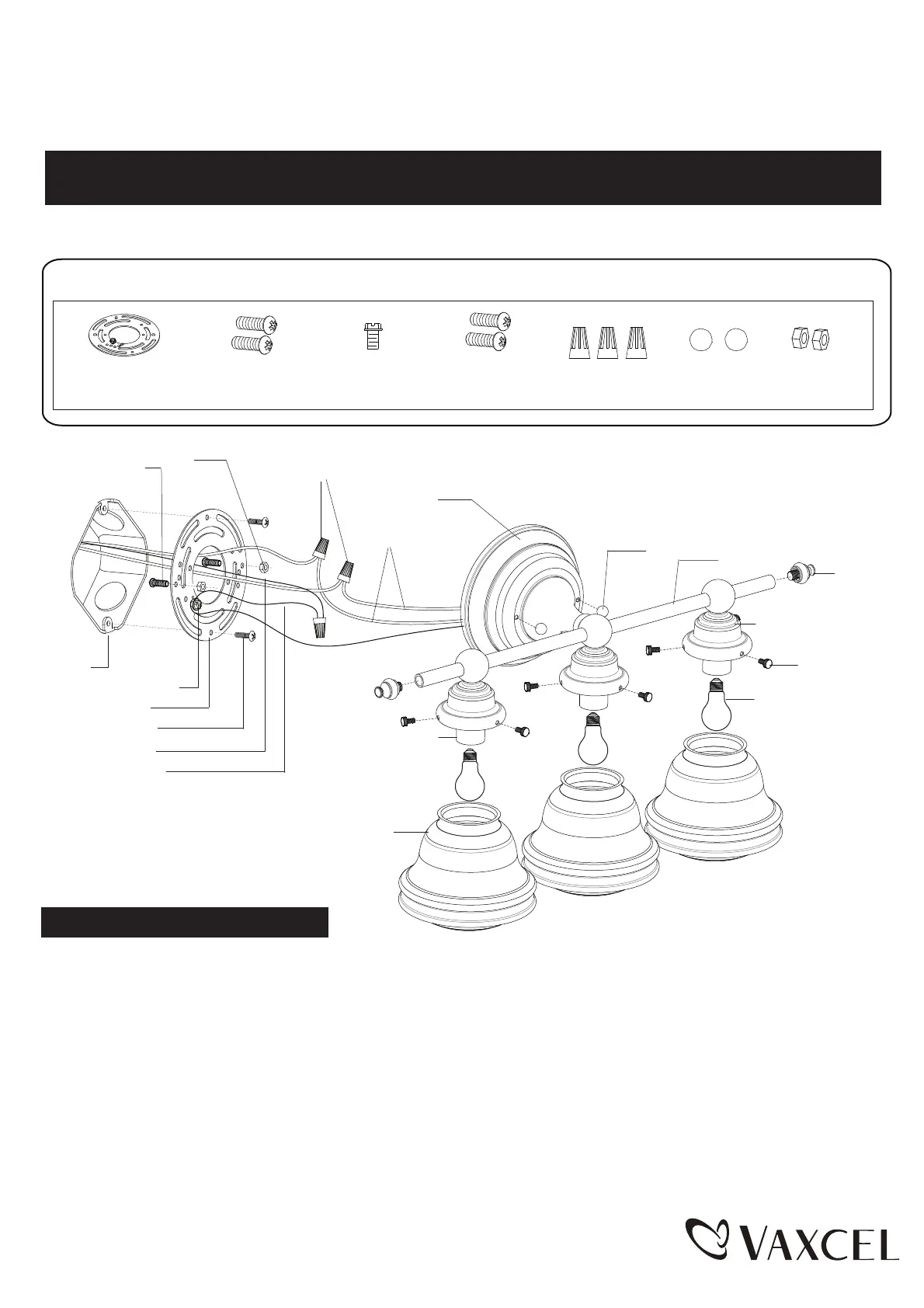

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0170 / W0171
1. Unscrew two ball nuts, and remove the mounting plate from the back plate.
2. Attach the mounting plate to the outlet box by using two mounting screws.
3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follow:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting plate with the green grounding
screw. Then connect it to the house grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting plate by inserting two fixture mounting screws, then secure it with two ball nuts.
141117
Mounting Screw (B)
Wire Nut (E)
Mounting Plate (A)
Ball Nut (F)Lock Nut (G)
Fixture mounting
Screw(D)
Bulb Type A Max.60W
(not included)
Glass Shade
Ball Nut (F)
Socket
Set Screw
Mounting Screw (B)
Mounting Plate (A)
Green Grounding Screw (C)
Wire Nut (E)
House Grounding Wire
Fixture Grounding Wire
Fixture mounting
Screw(D)
Lock Nut(G)
Outlet Box
Fixture Wire
Back Plate
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Green Grounding
Screw (C)
T
Turn off the power at fuse or circuit box.
Installation Steps
Glass Bracket
Finial
Tube
