ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

P0371

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box.

Installation Steps

Hardware Package(included):

Mounting Strap Unit (A)Wire Connector (C)Mounting Screw (B)

Loop Lock (D)

Chain (E)Bolt Nut (F)

Bolt Nut-1

Set Screw

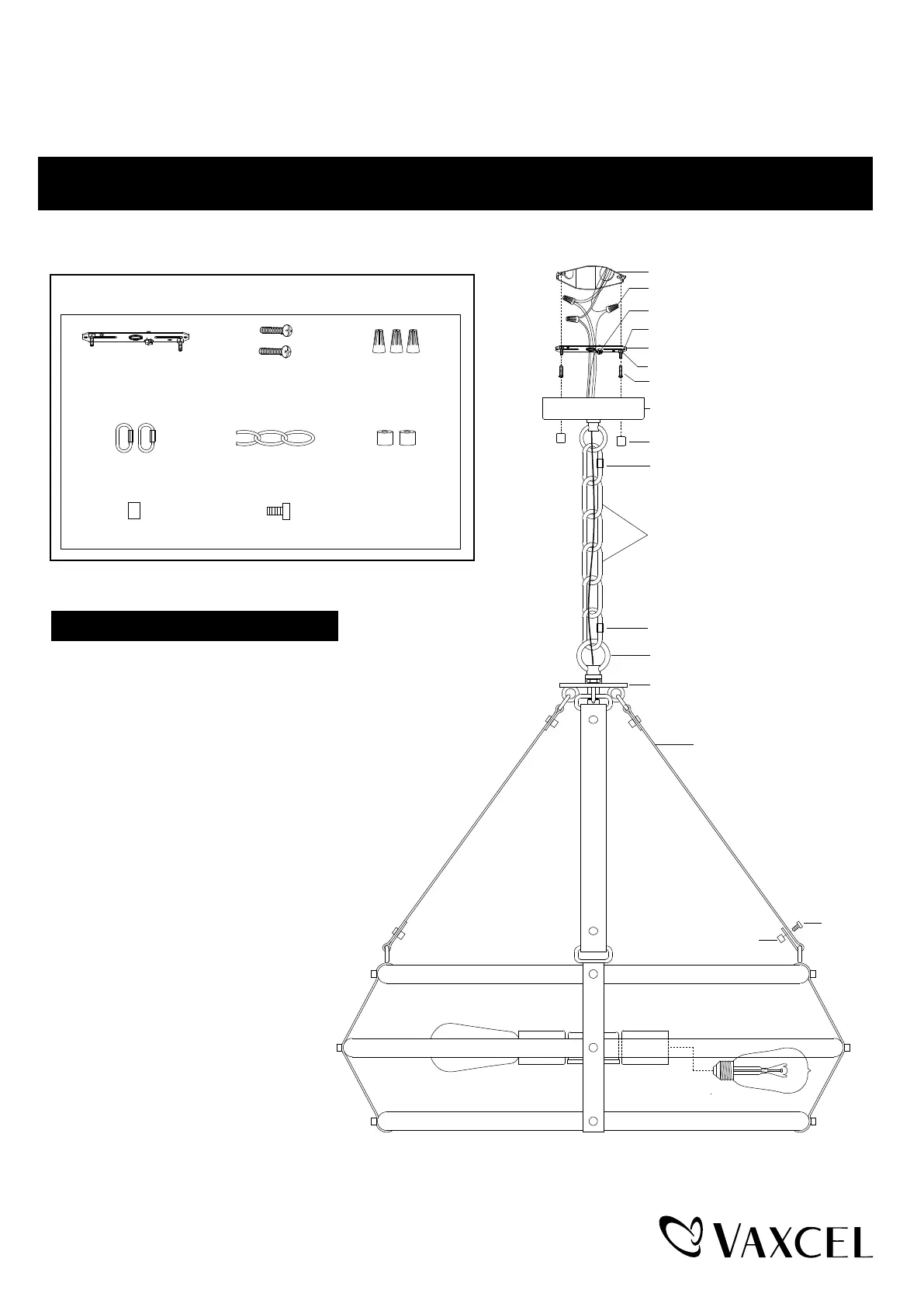

1. Attach the mounting strap unit (A) to the outlet box

using two mounting screws (B).

2. Install four belts with the set screws and the bolt nuts-1.

3. Choose the length of the chain (E) you need,

use pliers (not included) to open and remove

excess chain section, then weave the fixture

wire and the fixture ground wire through the

chain (E) and canopy.

4. Connect one end of the chain (E) with the

loop on canopy by using a loop lock (D).

5. Connect the other end of the chain (E) with the

fixture loop by using another loop lock (D).

6. Thread the fixture wire and fixture ground

wire through mounting strap unit (A).

Mounting Strap Unit (A)

Mounting Screw (B)

Lock Nut

Wire Connector (C)

Fixture Mounting Screw

Green Ground Screw

Outlet Box

Canopy

Bolt Nut (F)

Loop Lock (D)

Loop Lock (D)

Fixture Loop

Fixture

Belt

Set Screw

Bolt Nut-1

Chain (E)

Medium Base Bulb

Max.60W (not included)
