R251S

Installation Manual

Pro1 Technologies

P.O. Box 3377

Springeld, MO 65804

Toll Free : 888-776-1427

Web: www.pro1iaq.com

Hours of Operation: M-F 9AM - 6PM Eastern

Table of Contents

Mounting Locations

Sensor Mounting & Setup

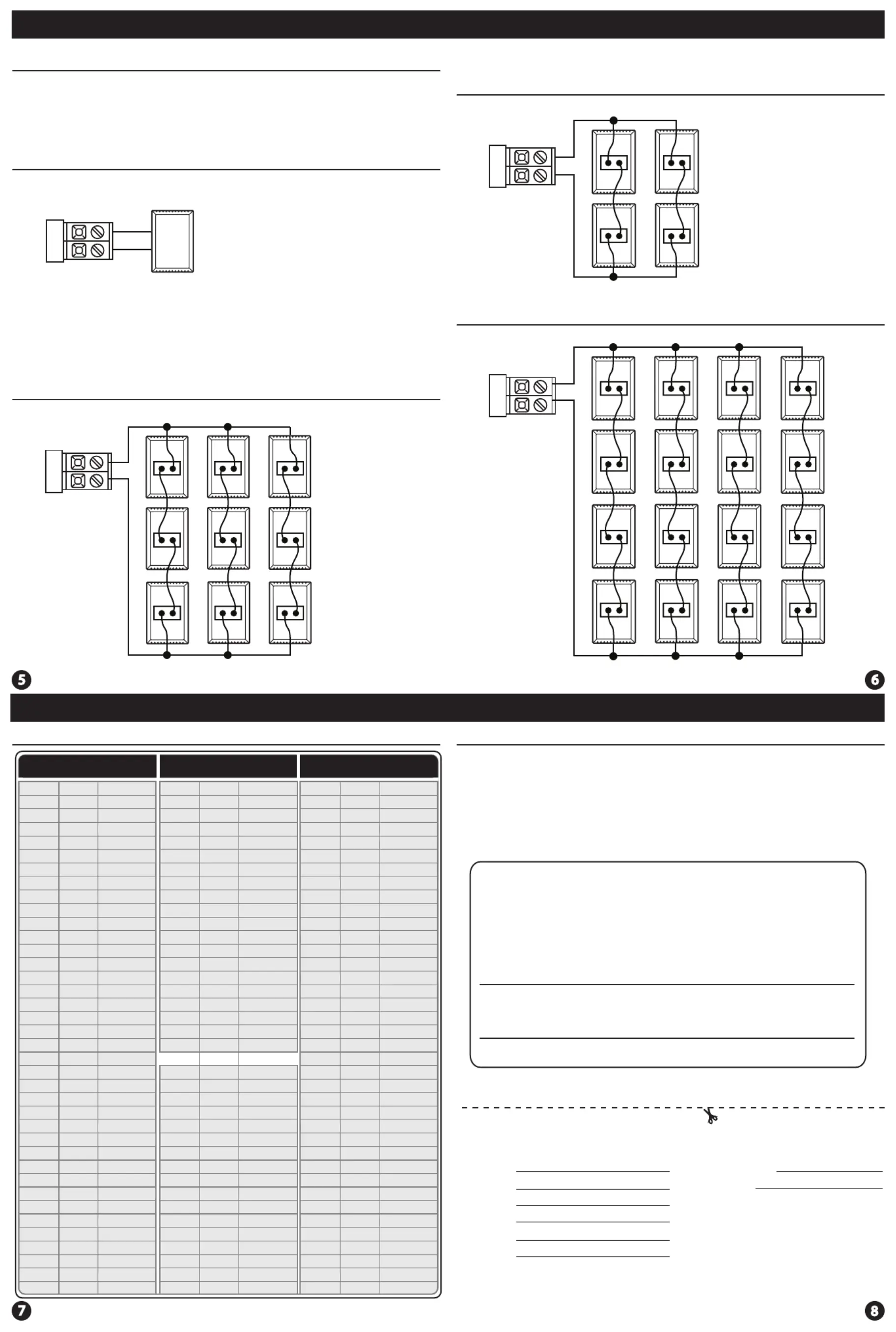

Wiring

Resistance Chart

Specications & Warranty

Page

A trained, experienced

technician must install this

product.

Carefully read these

instructions. You could damage

this product or cause a

hazardous condition if you fail

to follow these instructions.

Una version en espanol de este

manual se puede descargar en

la pagina web de la compania.

Rev. 1809

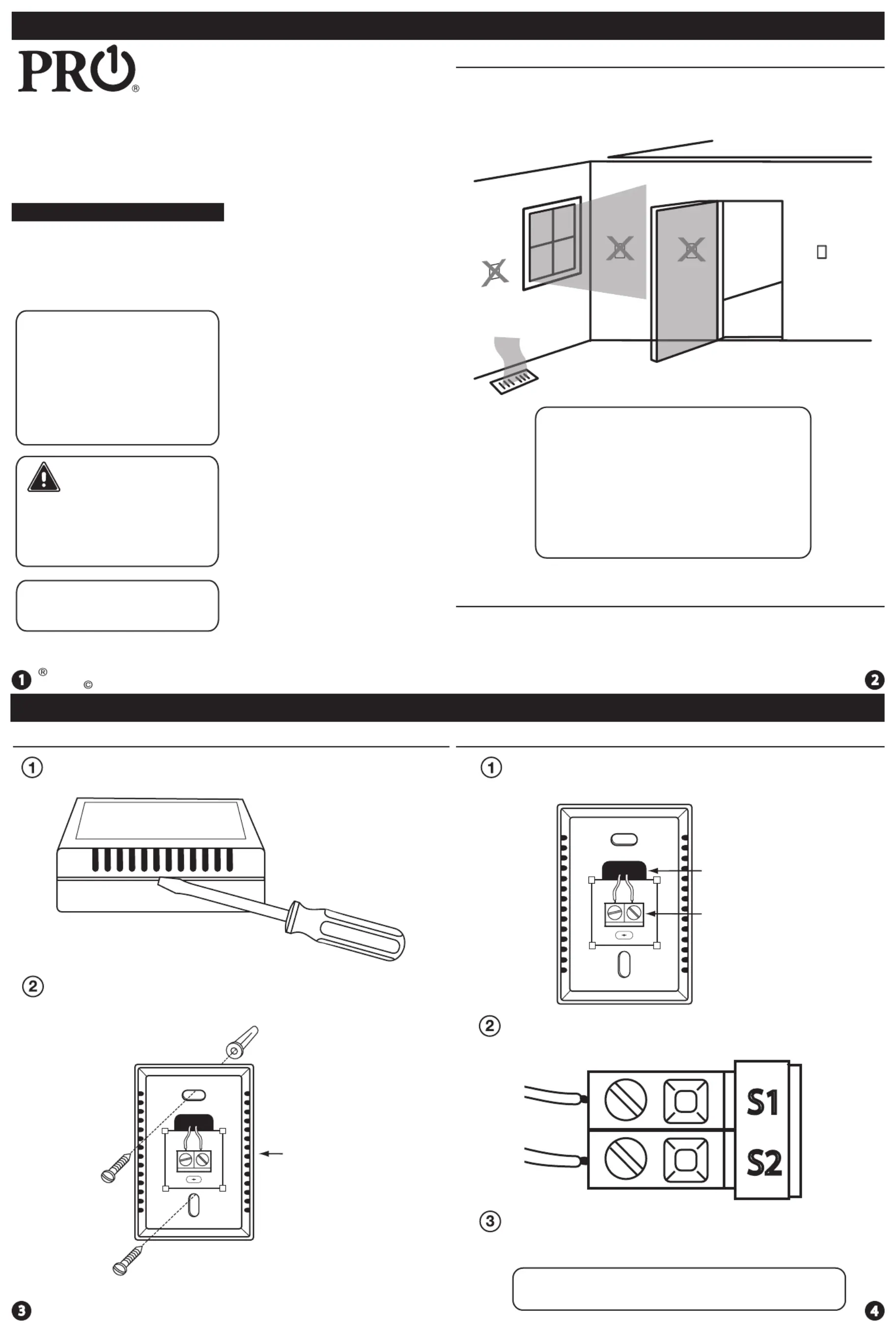

Wall Mount

Mounting Locations

3-4

5-6

7

8

2

Sensor Mounting & SetupSensor Mounting & Setup

Connecting to a Wired Sensor Capable Thermostat

The remote sensor should be mounted or placed approximately 4 to

5 feet above the oor. Select an area with average temperature and

good air circulation.

• Close to hot or cold air ducts

• That are in direct sunlight

• With an outside wall behind the thermostat

• In areas that do not require conditioning

• Where there are dead spots or drafts (in

corners or behind doors)

• Where appliances could radiate heat.

• Near or on hot appliances.

Remote Sensor Locations

Do not mount or place remote

sensors in these locations:

Do not operate the cooling

system if the outdoor

temperature is below 50˚F

(10˚ C) to prevent possible

compressor damage.

Caution: Equipment

Damage Hazard

The range between the remote sensor and the wired sensing master

thermostat is up to 300 feet. The remote sensor should be installed

using 18 AWG thermostat wire.

Wired Range

Remove the cover of the remote sensor

Mount subbase to the wall

Inside view of

subbase or the

remote sensor

Loosen the terminal block screws. Insert wires, then retighten

terminal block screws.

Non-Flammable

Insulation

Terminal Blocks

Connect the remote sensor to the S terminal blocks on the Wired

Sensor Capable Thermostat.

S1

S2

Place non-ammable insulation into wall opening to prevent

drafts.

Note: Refer to your Wired Sensor Capable

Thermostat manual for setup.

U.S. Registered Trademark. Patents pending

Copyright 2017 All Rights Reserved.

NO

NO

NO

YES
