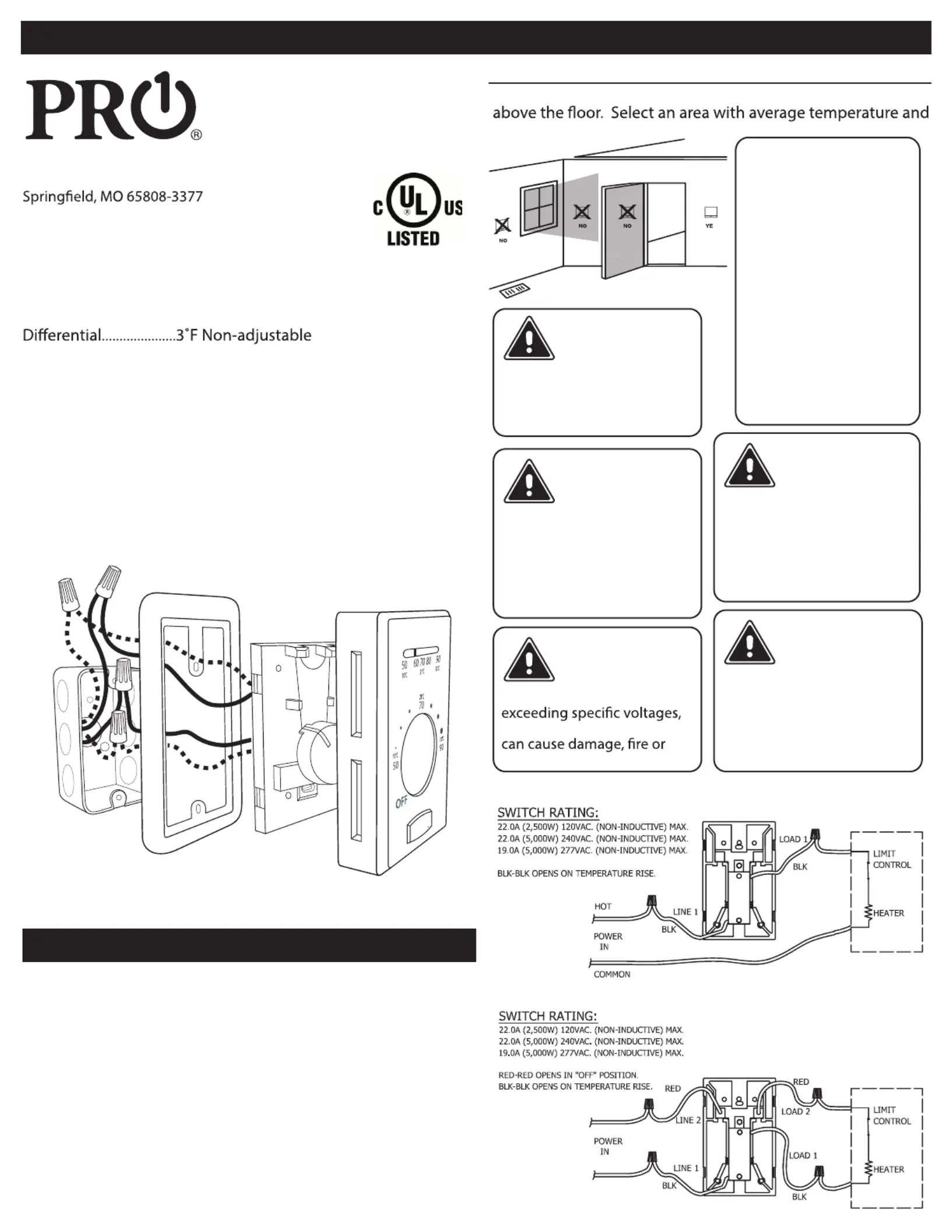

T501ML2
T501ML4
Pro1 Technologies
P.O. Box 3377
Toll Free : 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM Eastern
Installation Manual Installation Tips
Temperature Range....50˚F to 90˚F (10˚C to 32˚C)
Electric Rating............. 22A/120VAC Resistive (Non-Inductive)
22A/240VAC Resistive (Non-Inductive)
19A/277VAC Resistive (Non-Inductive)
Mou .............................Verticalnt
Color................................White
T501ML2........................SPST Switch - Singleline disconnect
Black - Black: Opens on tempe ture risera
T501ML4........................DPST Switch - Double line disconnect
Black - Black: Opens on tempe ture risera
Red - Red: Opens in OFF position for
double line disconnect
Wire..................................6 inch leads (12 AWG)
Dimensions...................W - 2.9”, L - 4.7”, D - 9” (from wall).1.6”(total)
Application...................Electric heat thermostat
Warranty........................2 year
Installation Steps
Disconnect electrical power at main fuse or circuit box.1.
Remove Thermostat Cover from the thermostat base.2.
Place the wall ver plate on back of the thermostat base, co
then connect wires to the thermostat as shown in wiring
dia am (Without pushing on knob or triangular bimetal gr
element).
3.
Push lead wires into junction box, then secure wall ver co
plate and thermostat base to junction box with screws
provided.
4.
Mount thermostat cover to the thermostat base and set to
desired setting.
5.
Turn on electrical power.6.
The thermostat should be installed approximately 4 to 5 feet
good air circulation.
• Close to hot or cold
air ducts
• That are in direct
sunlight
• With an outside wall
behind the thermostat
• In areas that do not
require conditioning
• Where there are dead
spots or drafts (in
corners or behind doors)
• Where there might be
concealed chimneys or
pipes.
Wall Locations
Do not install
thermostat in
locations:
Do not install this thermostat
unless you are a trained and
experienced service
technician. Failure to follow
cautions and warnings can
cause injury or death.
Warning:
Failure to disconnect
electrical power before
beginning to install this
product can cause electrical
shock or equipment damage.
Electrical
Hazard:
No not use on circuits
or on inductive loads. This
shock.
Attention:
Use ONLY with copper
conductors and approved
wire connectors for 12 AWG.
Wiring must conform to local
and national electrical codes
and ordinances.
Caution:
Thermostat
Cover
Base
Thermostat
Wall Cover
Plate
Junction Box
T501ML4
T501ML2
NEMA type 1 enclosure, IP20
Attention:
Install only in a suitable
UL Listed outlet box or the
equivalent.
Rev. 1810
