ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0440 / W0442

Mounting Plate Unit (A)

Wire Connector (C)

Mounting Screw (B)

Bolt Nut (D)

Turn off the power at fuse or circuit box

Installation Steps

1.

Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.

2.

Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).

Note: Make sure that two fixture mounting screws are vertical horizontally to make the fixture level.

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then connect it

to the house ground wire with the wire connector (C).

Carefully put all of the wires back into the outlet box.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

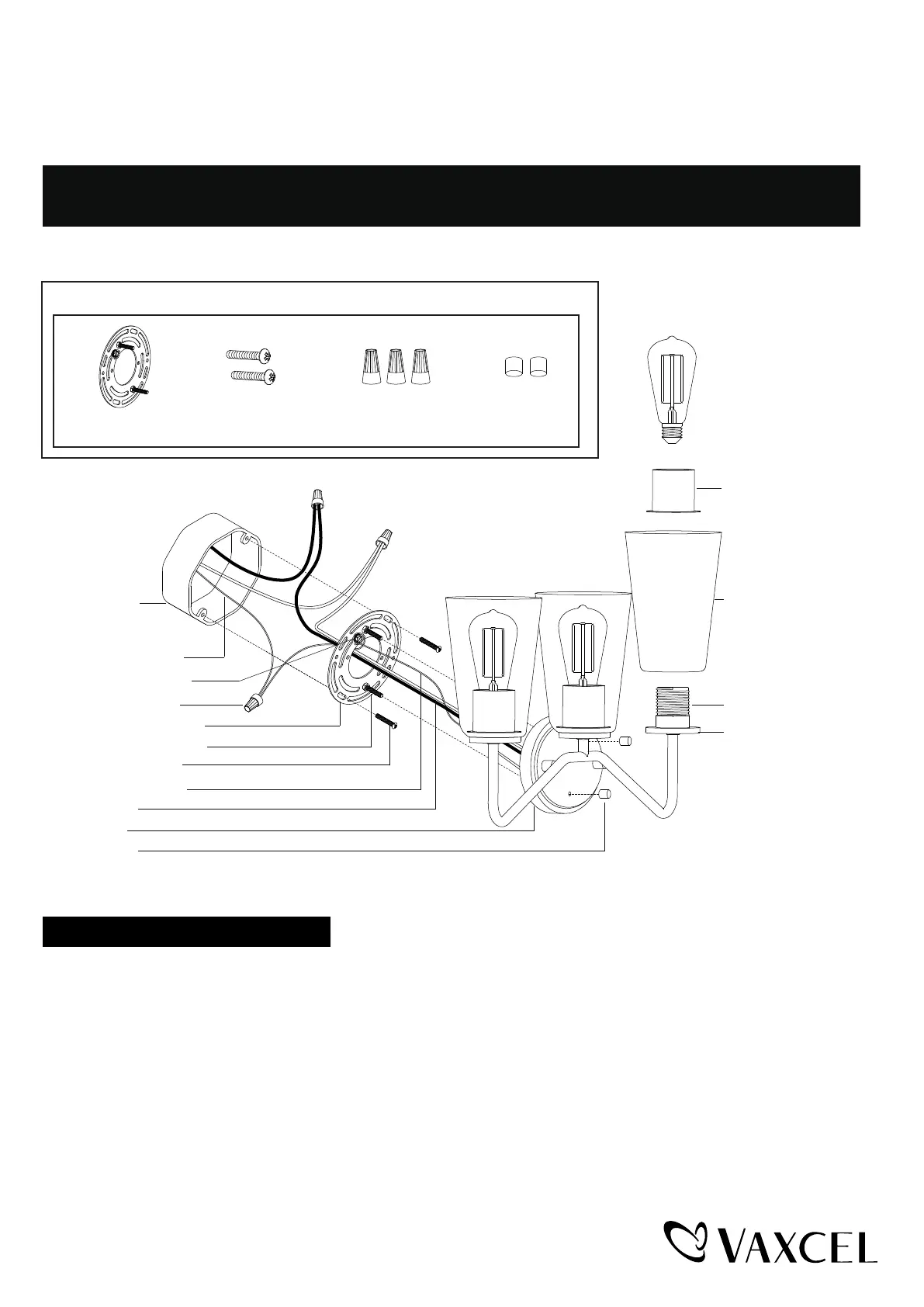

Hardware Package (included):

Fixture Ground Wire

Wire Connector (C)

Mounting Plate Unit (A)

House Ground Wire

Green Ground Screw

Fixture Wire

Backplate

Bolt Nut (D)

Mounting Screw (B)

Socket

Fixture

Glass Shade

Socket Ring

Outlet Box

Fixture Mounting Screw

Max. 60W Medium Base

Bulb (not included)

Page 1 / 2
