1. Attach the mounting plate to the wall.
a) If the wall material is wood:
Attach the mounting plate to the outlet box by using two mounting screws, then secure the dry wall screws through
the set holes to the wall.
b) If the wall material is cement:
Place the mounting plate to the outlet box and mark the target on the wall from the set hole for drilling two holes.
Remove the mounting plate. Drill the holes and thread the anchors into the holes, then attach the mounting plate to
the outlet box by using two mounting screws. Secure the dry wall screws through the set holes into the anchors.

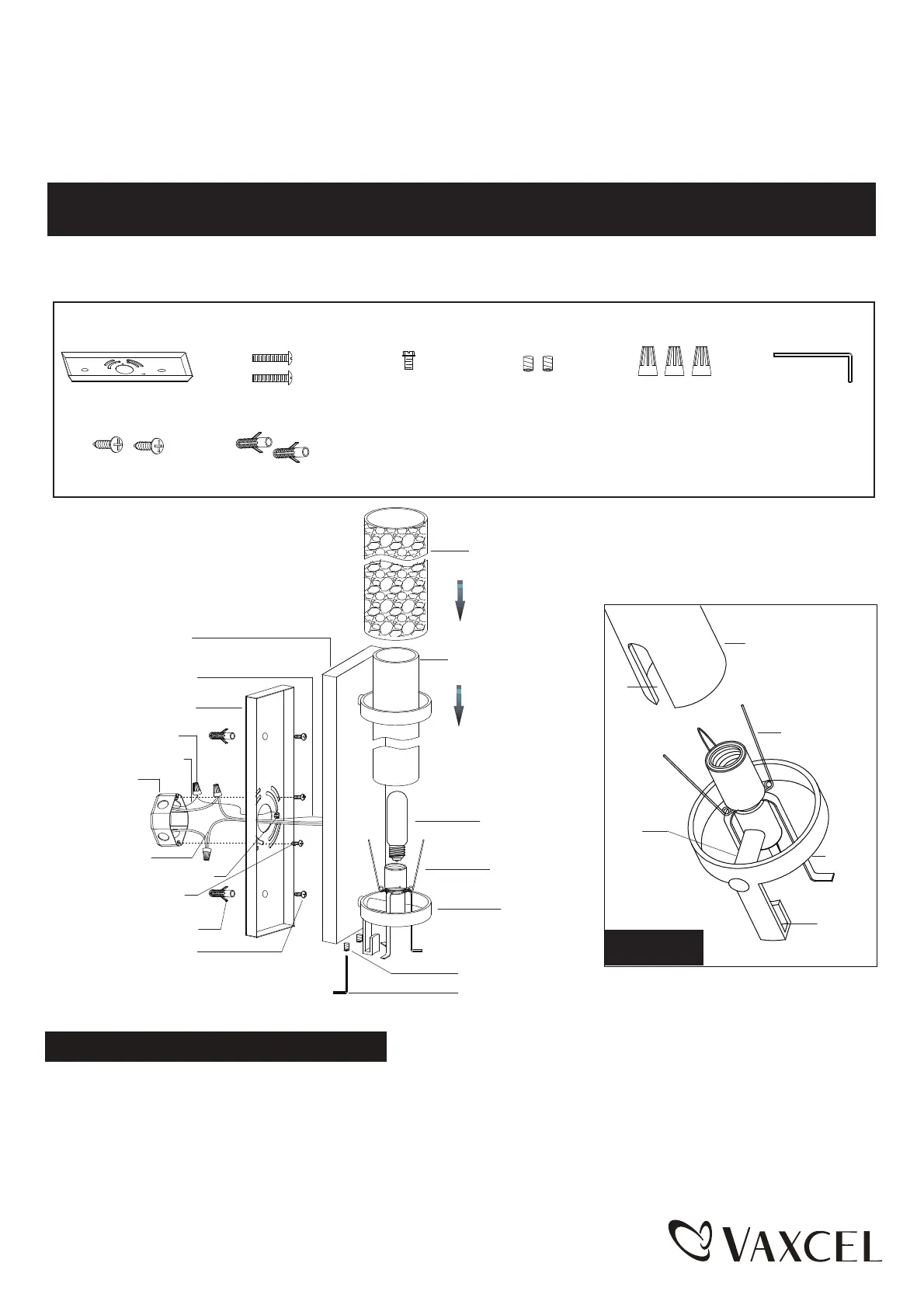

Glass bracket
Bulb T10 Max.75W
(not included)
Back Plate
Mounting Screw (B)
Headless Screw (D)
Mounting Plate (A)
House Grounding Wire
Green Grounding Screw (C)
Fixture Grounding Wire
Wire Connector(E)
Outlet Box
Fixture Wire
181012
Mounting Screw (B)
Green Grounding
Screw (C)
“ L ” Screwdriver (F)
Wire Connector (E)
Mounting Plate (A)
Headless Screw (D)
“ L ” Screwdriver (F)
Anchor (H)
Dry Wall Screw (G)
Interior Glass Shade (J)
Exterior Glass Shade (I)
Anchor (H)
Dry Wall Screw (G)
Figure.1
Interior Glass Shade
Slot
Fixture
arm
Slot
Socket Spring
Socket Spring
Page 1
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0048 / W0124 / W0310
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Assembly Instructions:
Turn off the power at fuse or circuit box.
