Hex Nut (F)

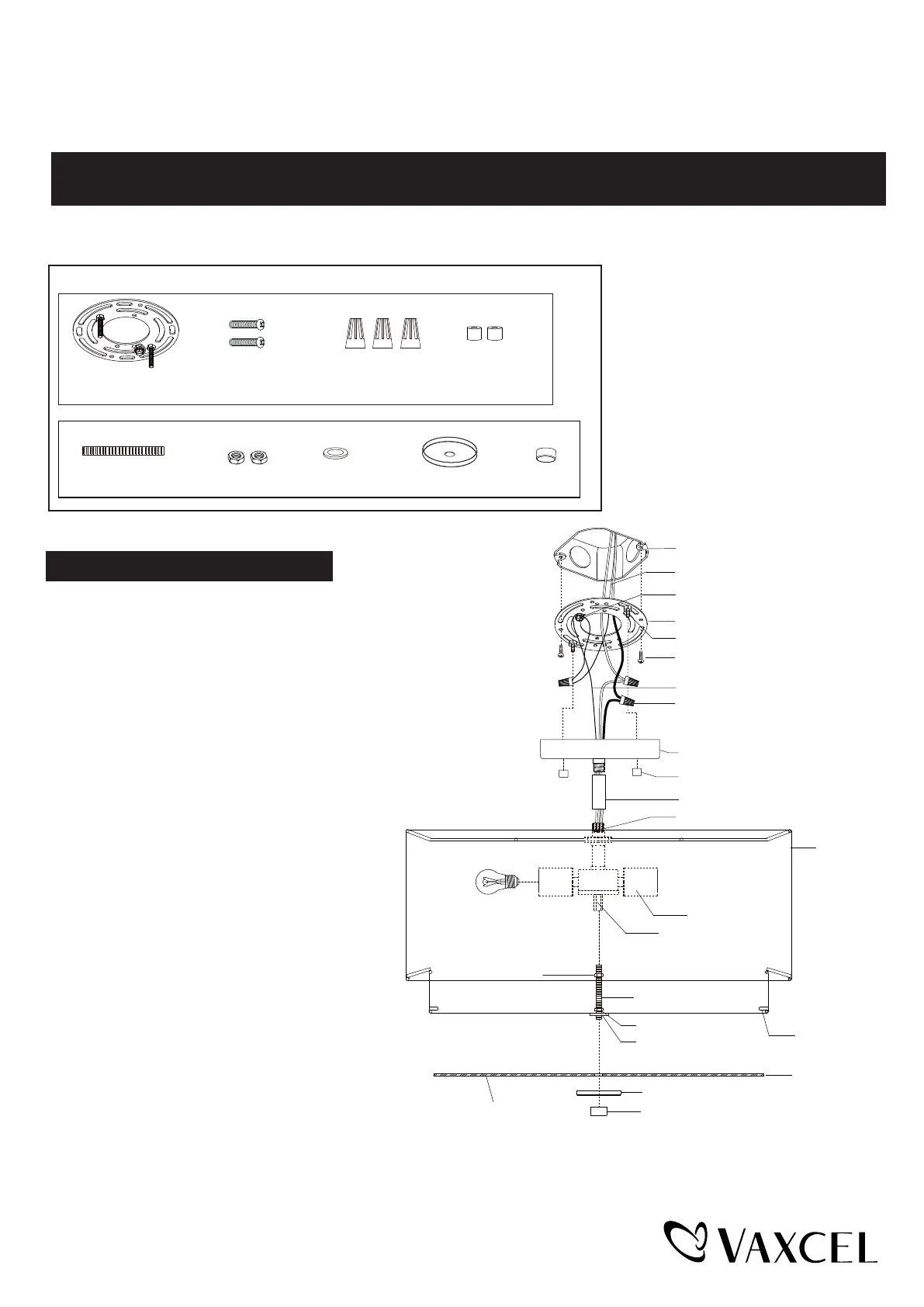

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
C0258 / C0308
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
Canopy
Bolt Nut (D)
Threaded Pipe
Mounting Screw (B)Wire Connector (C)Bolt Nut (D)
Mounting Plate Unit (A)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Page 1 / 2
240222
Max. 60W Medium Base bulb
(not included)
Socket
Coupling
Tube
Hex Nut (F)
Metal Pad (G)
Long Threaded Pipe (E)
Decorative Cup (H)
Finial (I)
Acrylic Diffuser
Frosted Side
Bracket
Linen Shade
Hex Nut (F)
Metal Pad (G)Long Threaded Pipe (E)Decorative Cup (H)Finial (I)
1
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2.
Thread the fixture wire through the tube and the canopy.
3. Attach one end of the tube to the canopy, then connect the other
end to the threaded pipe of the fixture.
4. Install 4 x 60W Max. medium base bulbs (not included).
See relamping label at socket area or packaging for
maximum wattage allowed.
5. Attach the long threaded pipe
(E)
to coupling,
then secure the preinstalled hex nut
(F)
.
6.
Attach the hex nut
(F)
and the metal pad
(G)
to
the long threaded pipe
(E)
, slip the acrylic diffuser
and decorative cap
(H)
up through the long
threaded pipe
(E)
, then secure them with the
finial
(I)
.
NOTE: The depth of the lower hex nut (F) and
the metal pad (G) in long threaded pipe may
need to be adjusted to properly fit the acrylic
diffuser. The acrylic diffuser should be flatly
laid on three brackets, and the frosted side of
the acrylic diffuser should be faced down.
Product specificaties
| Merk: | Vaxcel |
| Categorie: | Verlichting |
| Model: | Burnaby C0308 |
