ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

W0350

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

190724

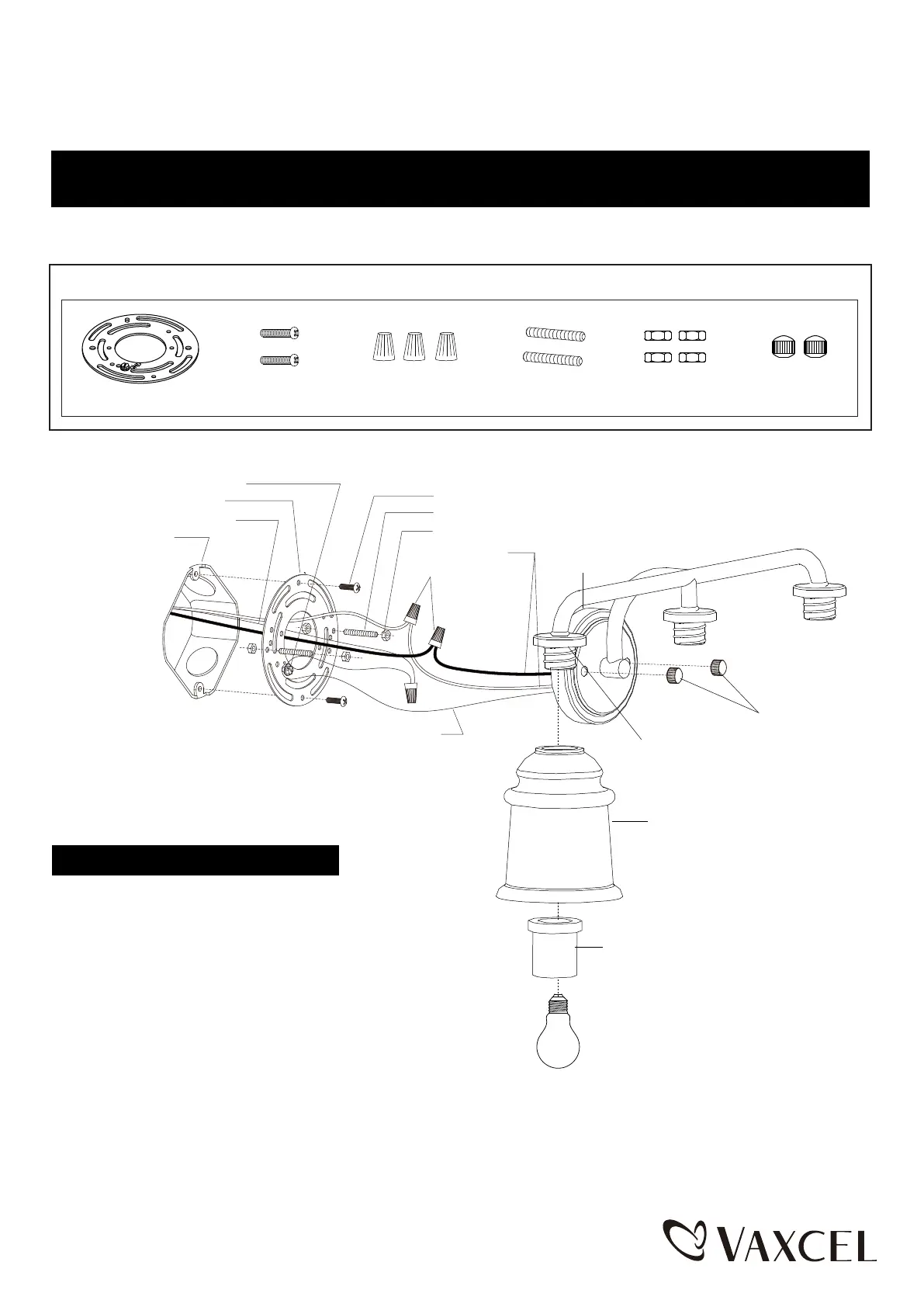

Hardware Package (included):

Headless Screw (D)Mounting Screw (B)Wire Connector (C)

Lock Nut (E)

Mounting plate (A)Ball Nut (F)

Ball Nut (F)

Glass Shade

Glass Holder

Socket Ring

Type A Max.60 W

or ST Vintage Bulb

(not included)

House Ground Wire

Green Ground Screw

Fixture Ground Wire

Wire Connector (C)

Mounting Screw (B)

Headless Screw (D)

Mounting Plate (A)

Outlet Box

Fixture Wire

Lock Nut (E)

Back Plate

Installation Steps

1. Thread two headless screws (D) through the mounting plate (A),

then secure them with four lock nuts (E) (two on each side of the

mounting plate). Adjust the length of the headless screws (D) if

necessary.

Note: Make sure that the headless screws are lined up

horizontally, in order to ensure that the fixture will be

level.

2. Attach the mounting plate (A) to the outlet box by using two

mounting screws (B).
