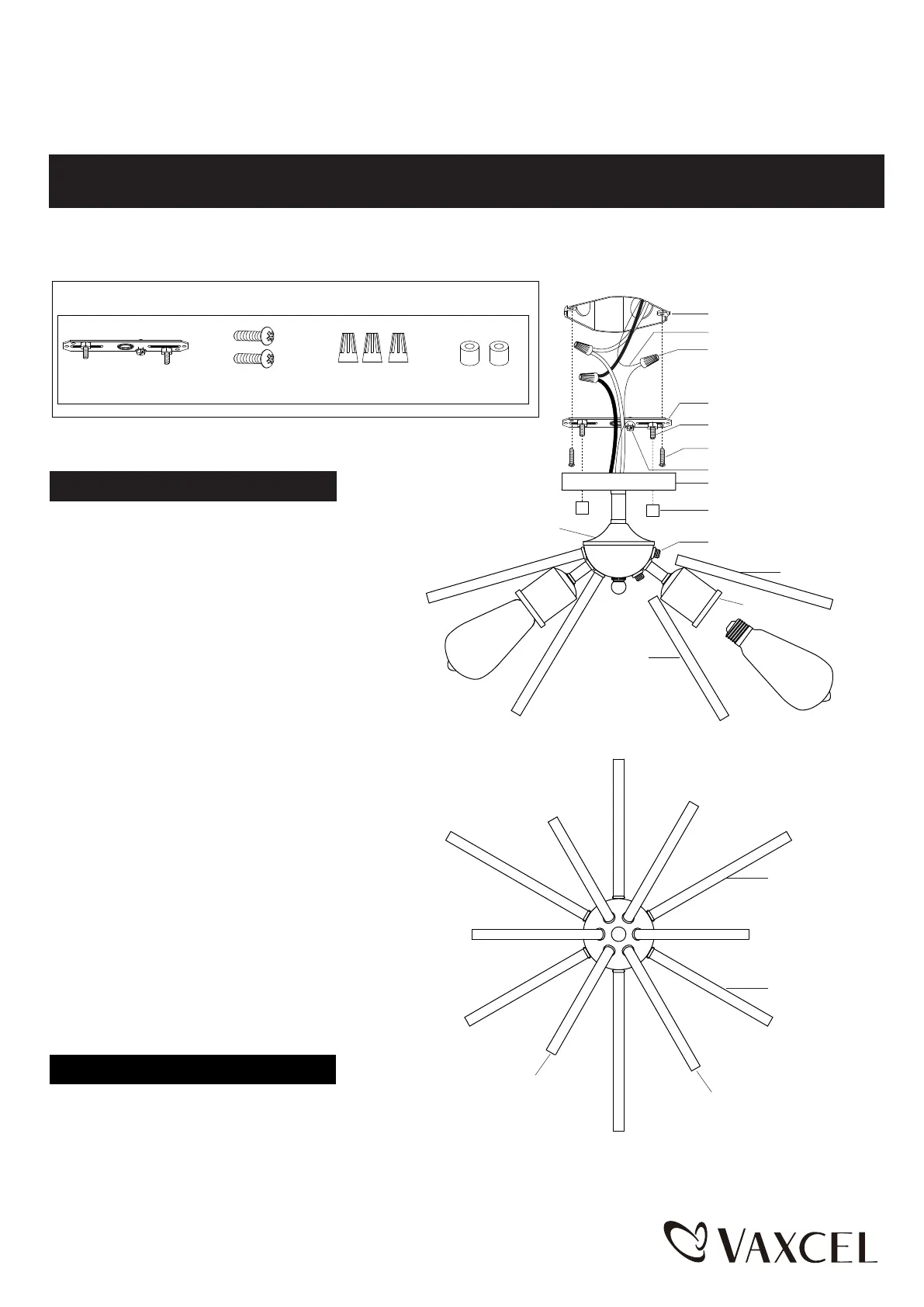

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0249

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

240628

Hardware Package (included):

Mounting Strap Unit (A)Mounting Screw (B)Wire Connector (C)Bolt Nut (D)

Outlet Box

House Ground Wire

Wire Connector (C)

Mounting Strap Unit (A)

Fixture Mounting Screw

Green Ground Screw

Mounting Screw (B)

1. Attach the mounting strap unit (A) to the outlet box

using two mounting screws (B).

2. Screw 185mm long rods and 160mm short rods to

the threaded pipes of fixture according to the

figure.

3. Pull out the source wires from the outlet box.

Make wire connections using wire connector (C)

as follows:

---Connect the black wire from the fixture to the

black wire from the power source.

---Connect the white wire from the fixture to the

white wire from the power source.

---Attach the fixture ground wire to the mounting

strap unit (A) with the green ground screw,

then connect it to the house ground wire with

a wire connector (C).

Carefully put the wires back into the outlet box.

4. Attach the fixture canopy to the mounting strap

unit (A) by inserting the fixture mounting screw,

then secure it with two bolt nuts (D).

5. Install bulbs (not included).

Check relamping label at socket area or

packaging for maximum wattage allowed.

Turn off the power at fuse or circuit box

Installation Steps

Fixture Canopy

Fixture

Bolt Nut (D)

Long Rod

Threaded Pipe

Socket

Short Rod

Type ST Max.40W

Vintage Bulb

(not included)

Long Rod

Short Rod

Short Rod

Long Rod

Turn on the power at fuse or circuit box
