1. Unscrew the bolt nuts from the xture, and remove the mounting plate.
2. Thread the two screws to the mounting plate, then secure them with the two lock nuts.
Adjust the length of the screws if necessary.
3. Attach the mounting plate to the outlet box by using two mounting screws.
4. Pull out the outlet wires and the house grounding wire from the outlet box. Make
wire connections using the wire nuts:
---The black wire from the xture to the black wire from the power source.
---The white wire from the xture to the white wire from the power source.
---Attach the xture grounding wire to the mounting plate with the green grounding
screw. Then connect it to the house grounding wire with a wire nut.
Carefully tuck the wires back into the outlet box.
5. Reattach the back plate to the mounting plate by inserting the two screws, then
secure it with the two bolt nuts.
6. Attach the glass shades to the xture.
7. Install bulbs (not included). See relamping label at socket area or packaging for
maximum allowed wattage.
8. Turn on the power at the main fuse or circuit breaker box.

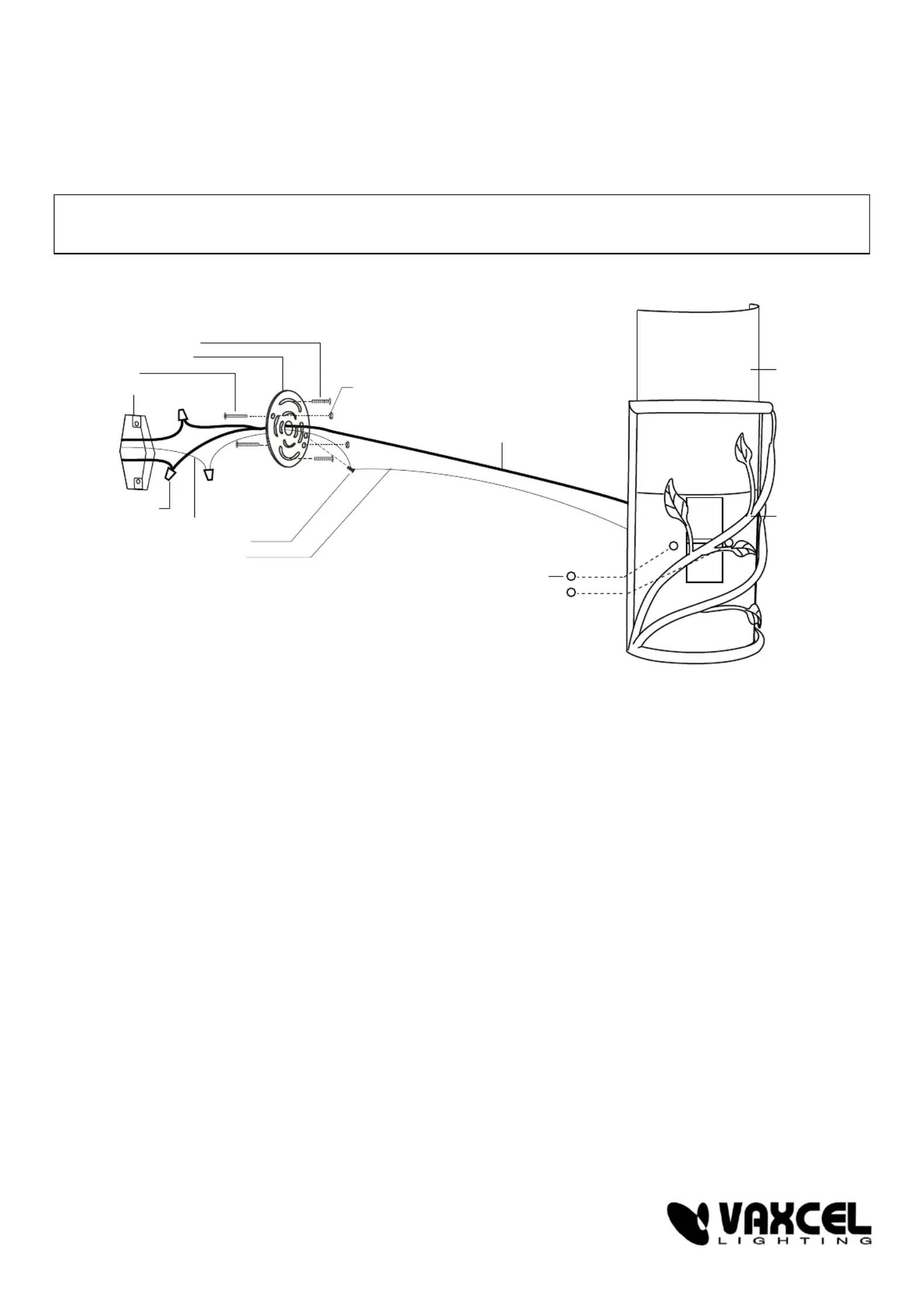

Glass Shade
Fixture
Bolt Nut
Mounting Screw
Fixture Wire
Lock Nut
Mounting Plate
House Grounding Wire
Fixture Grounding Wire
Green Grounding Screw
Wire Nut
Screw
Outlet Box
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.
