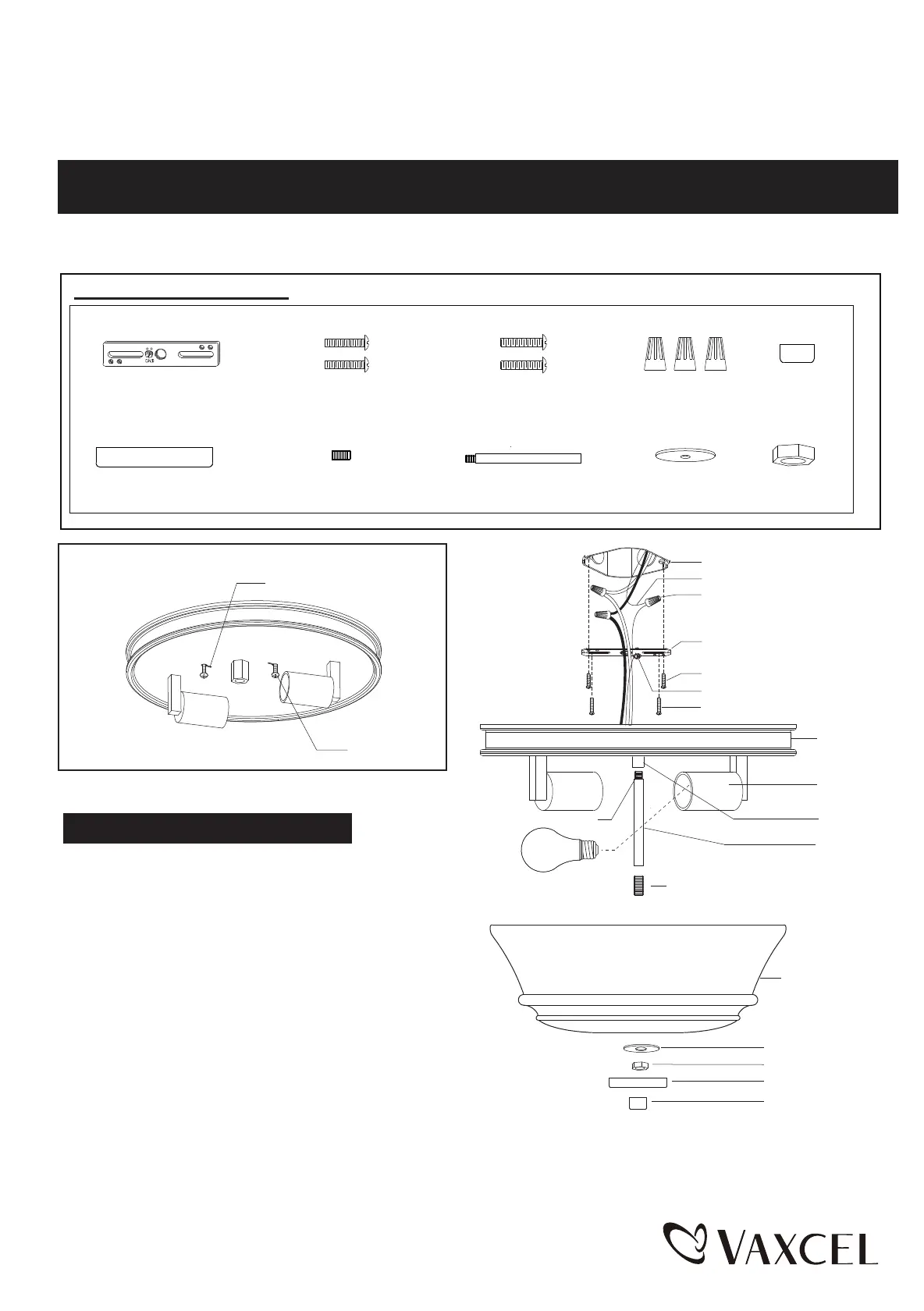

Fig.1
Screw
Key Hole Slot
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0232
Outlet Box
House Ground Wire
Wire Connector (D)
Fixture Mounting Screw (C)
Ceiling Pan
Socket
Coupling
Tube (H)
Glass Shade
Metal Pad (I)
Threaded Pipe-1
(G)
Hex Nut (J)
Cover (F)
Finial (E)
Mounting Strap (A)
Green Ground Screw
Mounting Screw (B)
Hardware Package (included):
190724
Threaded Pipe-1 (G)
Tube (H)
Mounting Screw (B)Wire Connector (D)Mounting Strap (A) Fixture Mounting Screw (C)
Metal Pad (I)Hex Nut (J)
Cover (F)
Finial (E)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
Type A Max.60 W
or ST Vintage Bulb
(not included)
Threaded Pipe
1. Attach the two fixture mounting screws (C)
to the holes on the mounting strap (A) and
screw them in 2 to 3 turns.
2. Attach the mounting strap (A) to the outlet box
using two mounting screws (B).
