Hardware Package (
included
):
Crossbar Unit (A)Mounting Screw (B)Wire Connector (C) Bolt Nut (D)
W
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0484
Page 1 / 2
Max. 60W Medium
Base Bulb
(not included)

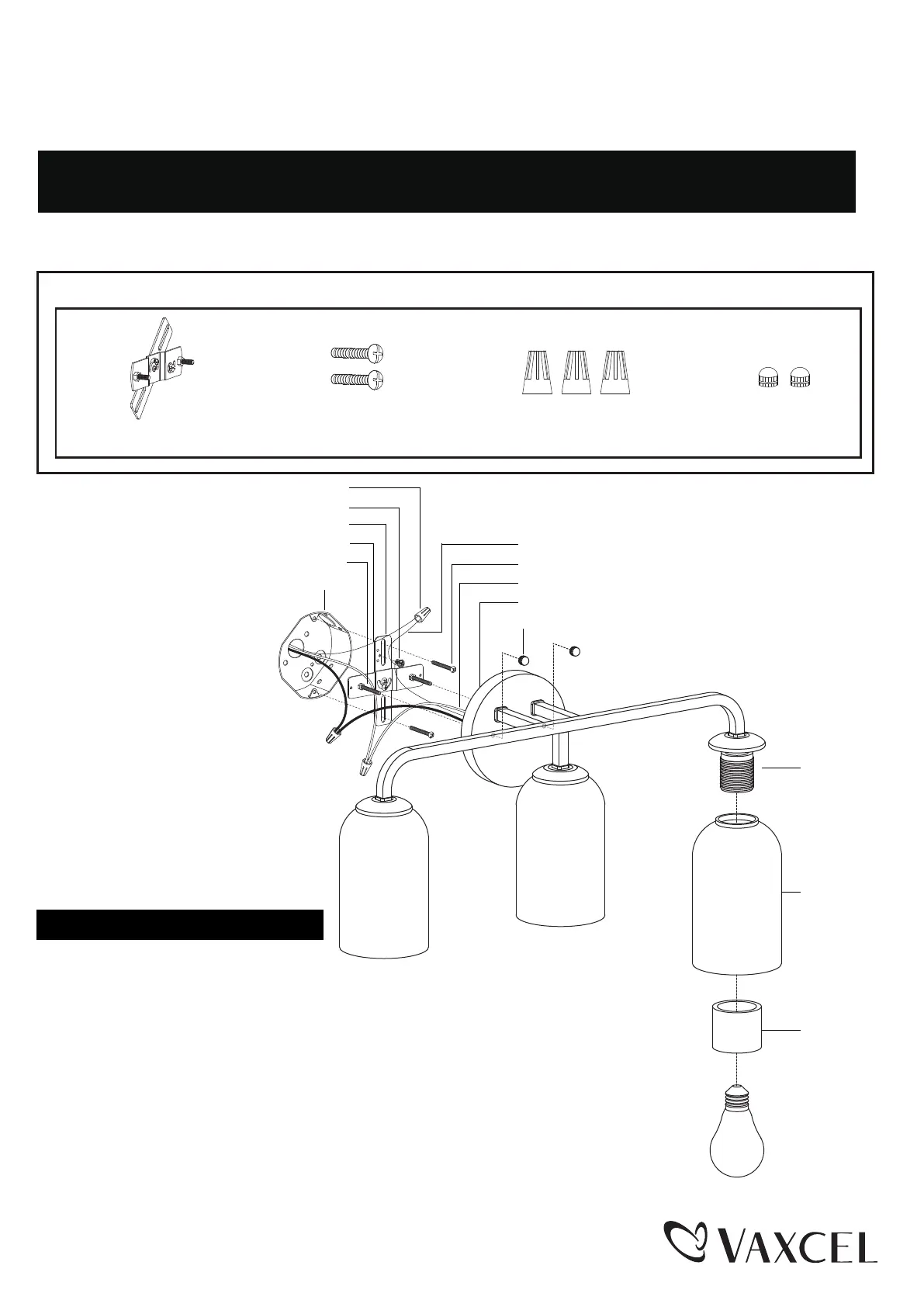

Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Backplate
Bolt Nut (D)
Fixture Mounting Screw
Green Ground Screw
Crossbar Unit (A)
Fixture Wire
Socket
Socket Ring
Glass Shade
Fixture Ground Wire
Turn off the power at fuse or circuit box
Installation Steps
1. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B).
Adjust the length of the preinstalled fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up horizontally
to make the fixture level.
2. Pull out the source wires from the outlet box. Make wire connections using
wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the
power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the
power source.
• Attach the fixture ground wire (bare wire) to the crossbar unit (A) with green ground
screw, then depending on local code, connect it to the house ground wire with the
wire connector (C).
Carefully put all of the wires back into the outlet box.
240320
