ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0276
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

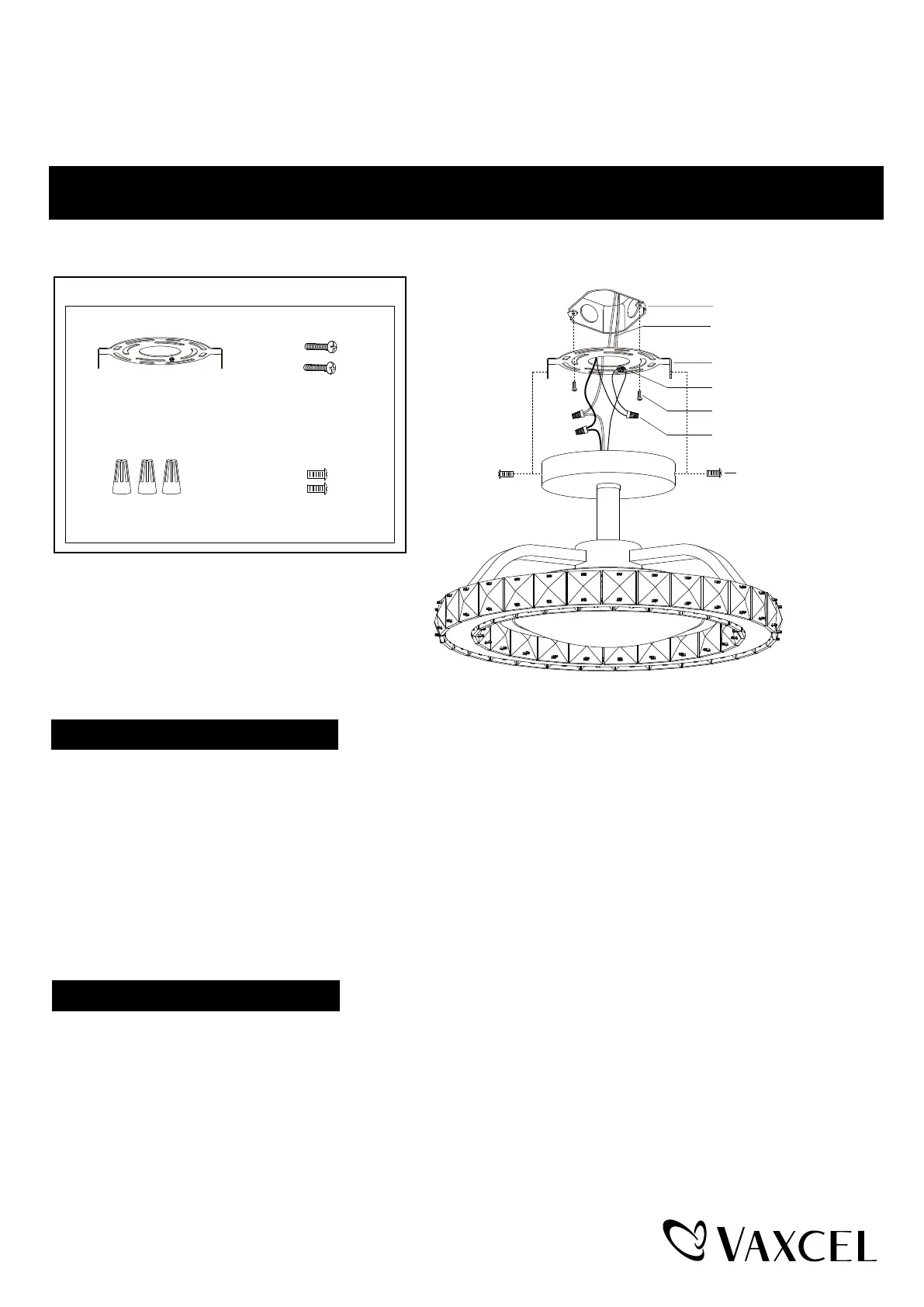

Hardware Package (included):
1. Attach mounting plate unit (A) to outlet box using two mounting screws (B).
2. Fasten the canopy to the mounting strap with two set screws (D).
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors
(C)
as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting
plate unit (A)
with the green ground screw, then connect it to
the house ground wire with a wire connector
(C)
.
Note: It can use the wall switch to control the lighting status.
The light can be switched to full light, lighting the middle part or lighting the crystal part only by switch on
and off everytime.
Dimming range: 100% full illumination to 10% of full illumination.
Turn off the power at fuse or circuit box.
Installation Steps
Turn on the power at fuse or circuit box.
Wire Connector (C)Set Screw (D)
Mounting Screw (B)Mounting Plate Unit (A)
House Ground Wire
Mounting Plate Unit (A)
Green Ground Screw
Outlet Box
Mounting Screw (B)
Wire Connector (C)
Set Screw (D)
