ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0267
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw (B)
Wire Connector (C)Bolt Nut (D)
Mounting Plate Unit (A)
Turn off the power at fuse or circuit box

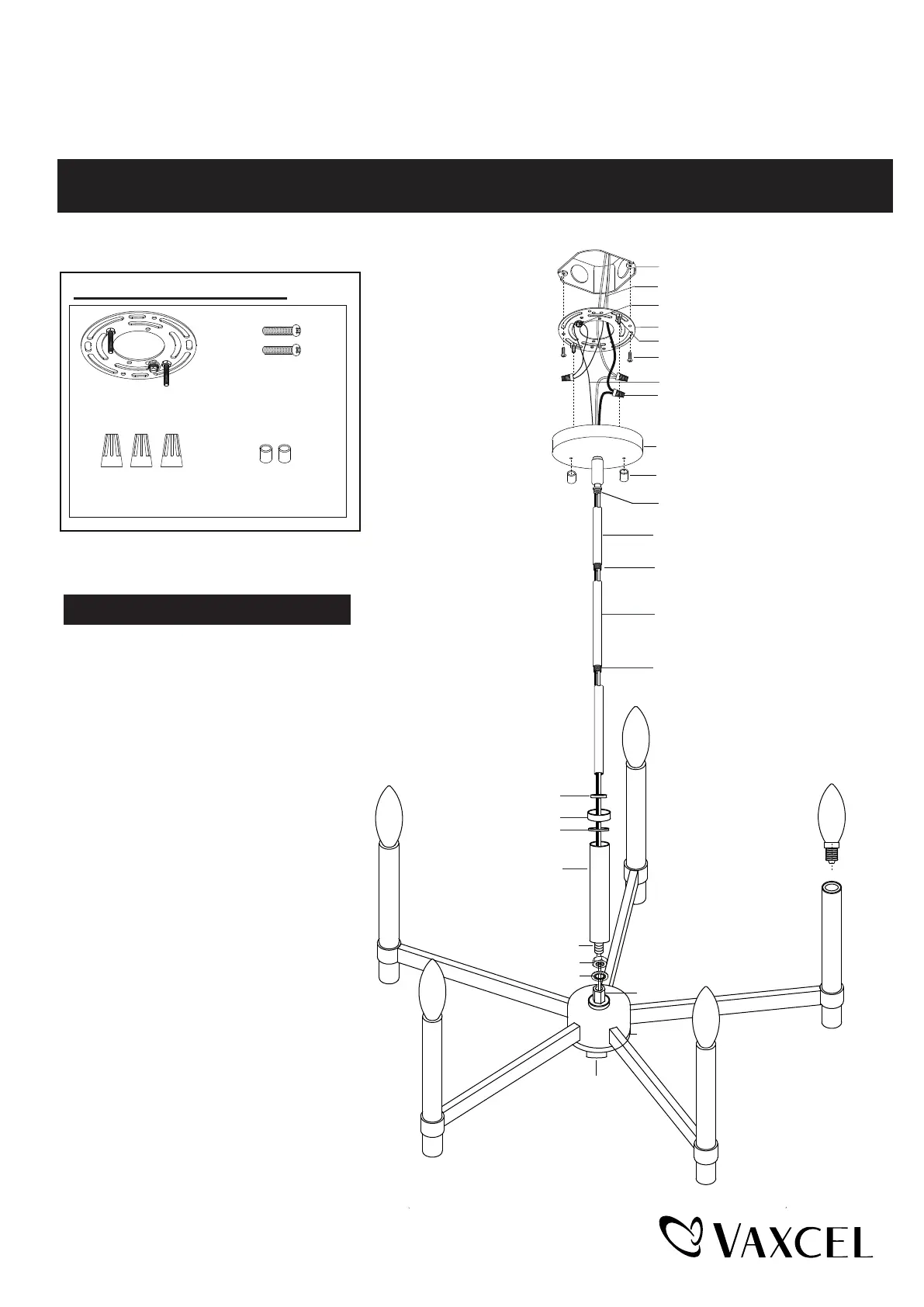

Installation Steps
1. Attach the mounting plate unit (A) to the
outlet box by using two mounting screws (B).
2. Attach the threaded pipe to the coupling of the
main fixture, secure it with a washer and hex nut.
Adjust the length of the threaded pipe if necessary.
3. Attach the tube, metal pad and metal cap
onto the coupling by inserting the
threaded pipe, and then secure with the
metal ring.
4. Rod Connections:
a. Thread the fixture wire from the
fixture through the lower rod,
then secure the lower rod onto
fixture using the threaded pipe.
b. Thread the fixture wire through
the middle rod and then secure
the middle rod onto the lower rod
using the threaded pipe.
c. Thread the fixture wire through
the upper rod, then secure the
upper rod onto the middle rod
using the threaded pipe.
Note: Length adjustable from
18-1/2" to 72-1/2". Use fewer
rods if shorter length is
desired.
5. Thread the fixture wire through the canopy kit,
then secure the rod assembly to the set
threaded pipe of the canopy kit.
Canopy Kit
Bolt Nut (D)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Threaded Pipe
Max.60W Type B Bulb
(not included)
Threaded Pipe
Hex Nut
Washer
Finial
Coupling
Fixture
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Metal Ring
Metal Pad
Metal Cap
Tube
220331
