220725

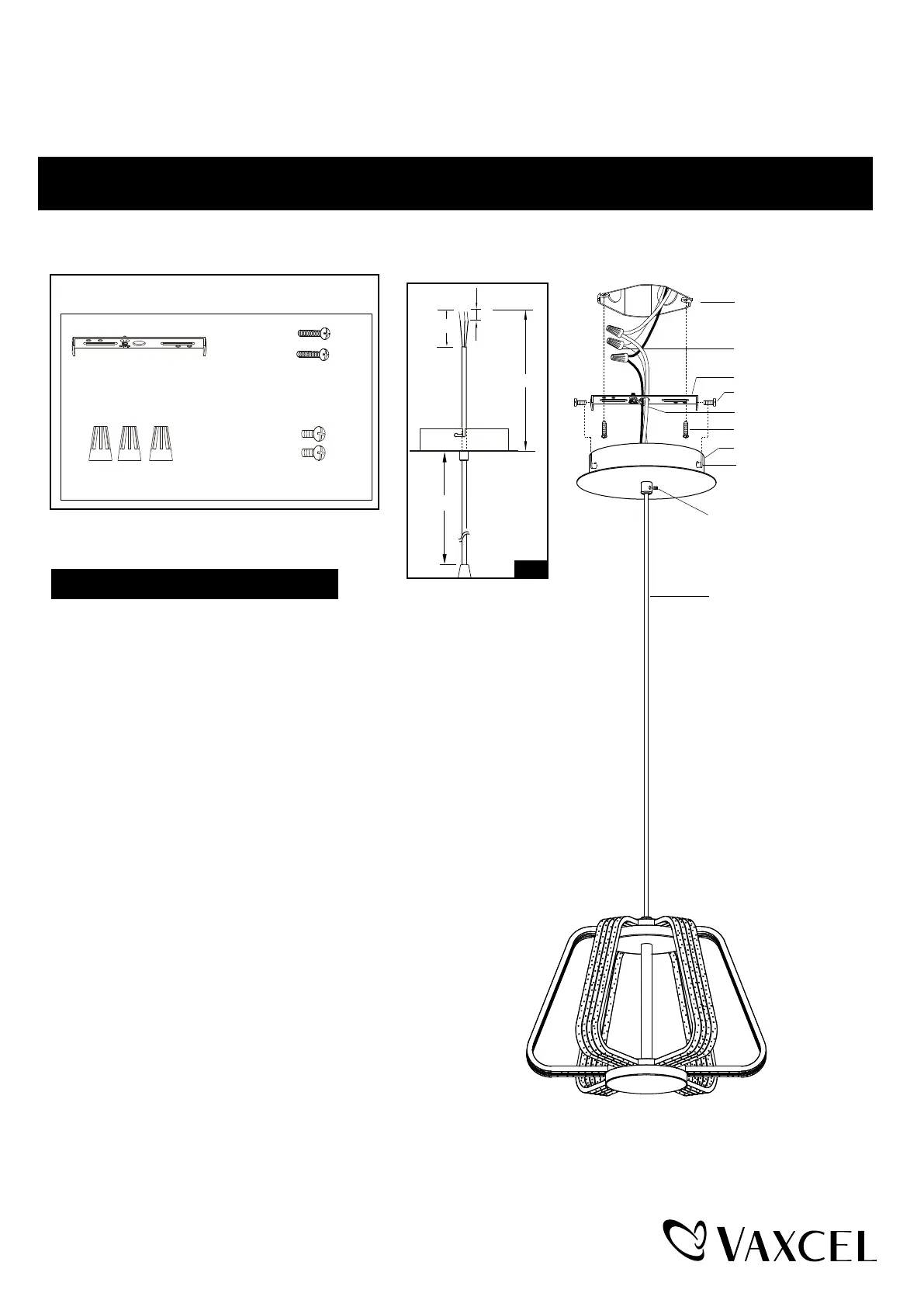

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0387
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box.
Installation Steps
Hardware Package(included):
1. Measure the desired length of the cord (a) from the canopy to
the top side of the cover and leave an additional 9" of cord (b)
above the canopy (include the canopy), then cut off the
unnecessary cord. (See Fig.1)
2. Adjust strain relief at 9" position from the top of the cord.
3. Mark the 3" of cord (c) from the top of the cord (b). Use a knife to
peel off the insulation of the cord (c) carefully to expose the 3 wires
inside. (See Fig.1)
Caution: Cutting too deep may cut off the three inside wires and
destroy the insulation surface of the three inside wires.
4. Peel off the 3 wires from the top about 3/8" long (d) to expose the
copper for wiring.
5. Adjust desired length of cord by pulling the cord through
canopy, tighten headless screw with slotted screwdriver
(not included), fold excess cord and fasten it using the cable
tie (not included), then put them into canopy.
6. Attach the set screws (D) to the hole on the mounting strap (A),
thread them in part way: 4 to 5 turns only.
Attach the mounting strap (A) to the outlet box by using two
mounting screws (B).
7. Connect fixture black wire to house black wire and fixture white wire to
house white wire using wire connectors (C) provided. Connect the copper
wire or green/yellow wire on the light fixture to the mounting strap (A) by
securing it with the preinstalled green ground screw, then connect it to the
house ground wire with wire connector (C).
Tuck all the wires into outlet box.
Wire Connector (C)
Outlet Box
Green Ground Screw
Mounting Strap (A)
Set Screw (D)
Mounting Screw (B)
"L" Slot
Canopy
Headless Screw
Mounting Strap (A)
Set Screw (D)
Mounting Screw (B)
Wire Connector (C)
Cord
a
c (3")
d (3/8")
b (9")
Fig.1
Page 1 / 2
