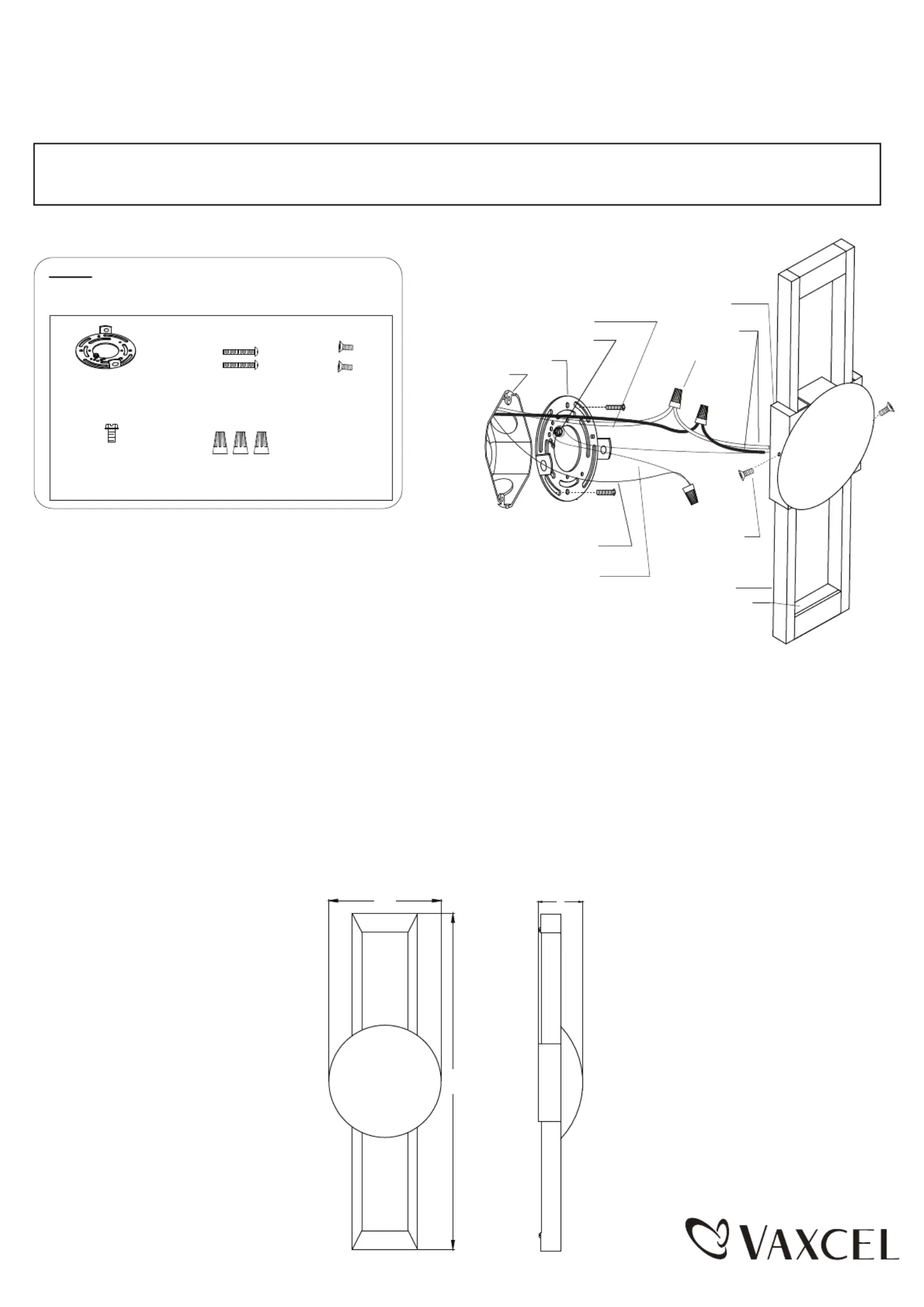

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
W0065
1. Attach the mounting plate to the outlet box by using two mounting screws.
2. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections by using the
wire nuts:
---Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.
---Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.
---Attach the fixture grounding wire to the mounting plate with the green grounding screw. Then connect it to the
house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
3. Attach the back plate to the mounting plate by aligning holes, secure the set screw from the side hole of the
back plate into the hole in the side of the mounting plate.
4. Turn on the power at the main fuse or circuit breaker box.
Non-replaceable warm white LED Bulb
Back Plate
Mounting Screw (C)
Mounting Plate (A)
House Grounding Wire
Green Grounding Screw (B)
Fixture Grounding Wire
Wire Nut (D)
Outlet Box
Fixture Wire
Set Screw (E)
Parts:
121219
Parts Number (4611MM)
Mounting Screw (C)
Green Grounding
Screw (B)
Wire Nut (D)
Mounting Plate (A)
Set Screw (E)
Fixture
A: 18"
B: 6"
C: 2-3/8"
A
B
C
