ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
W0375
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

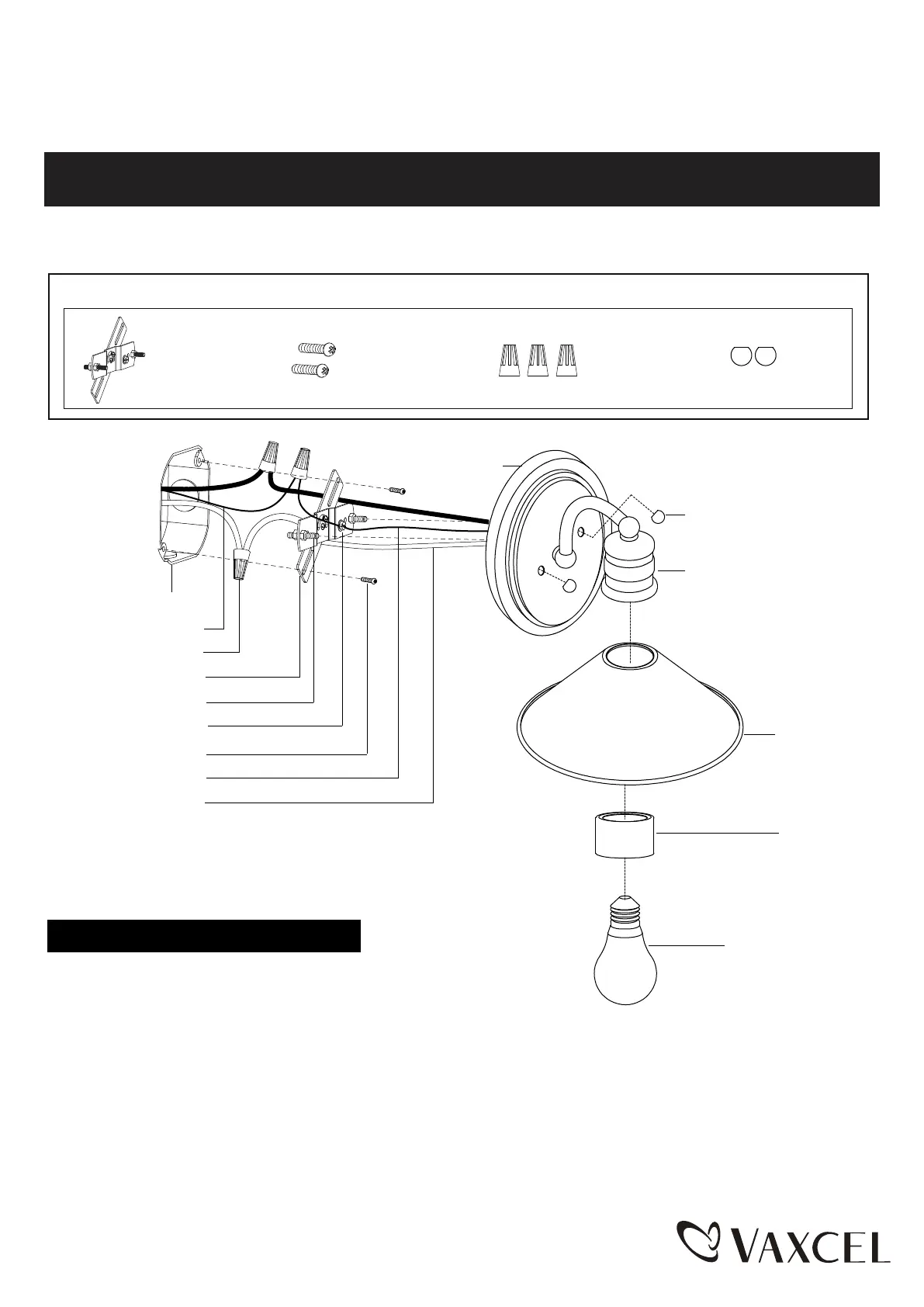

Hardware Package (included):
200907
Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Cross Bar Unit (A)
Bolt Nut (D)
Metal Shade
Socket Ring
Bulb Type A Max.100W
( Not included )
Backplate
Fixture
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Headless Screw
Cross Bar Unit (A)
Fixture Wire
Fixture Ground Wire
Installation Steps
Turn off the power at fuse or circuit box
1. Attach the cross bar unit (A) to the outlet box by using
two mounting screws (B).
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the cross bar unit (A) with the green ground screw. Then,
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all the wires back into the outlet box.
