W

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

220519

1. Attach mounting bracket to the outlet box

using two mounting screws (A).

2. Pull out the source wires from the

outlet box. Make wire connections

using wire connectors (B) as follows:

---Connect the hot wire (black insulation)

from the power source to the black wire from the fixture.

---Connect the neutral wire (white insulation) from the

power source to the white wire from the fixture.

---Attach the fixture ground wire (bare wire) to the

mounting plate with the green ground screw, or connect

to the source ground wire if available.

Carefully put the wires back into the outlet box.

3. Attach the fixture to the mounting bracket, then secure it with four assembly screws.

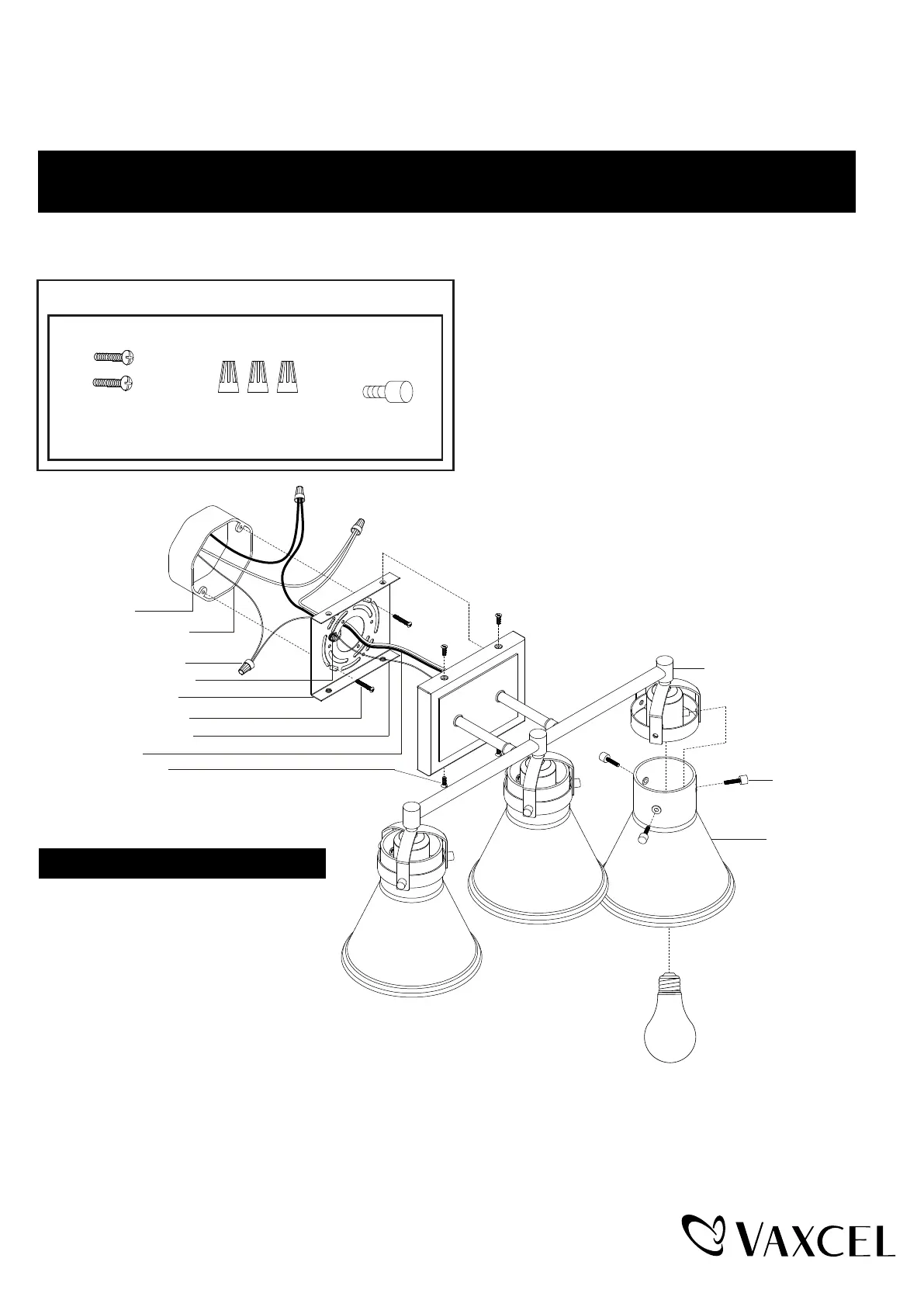

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0412

Turn off the power at fuse or circuit box.

Installation Steps

Hardware Package (included):

Mounting Screw (A)Wire Connector (B)

Set Screw (C)

House Ground Wire

Fixture Ground Wire

Wire Connector (B)

Mounting Bracket

Outlet Box

Fixture Wire

Mounting Screw (A)

Green Ground Screw

Assembly Screw

Fixture

Set Screw (C)

Max. 60W Type A / ST Bulb

(not included)

Glass Shade
