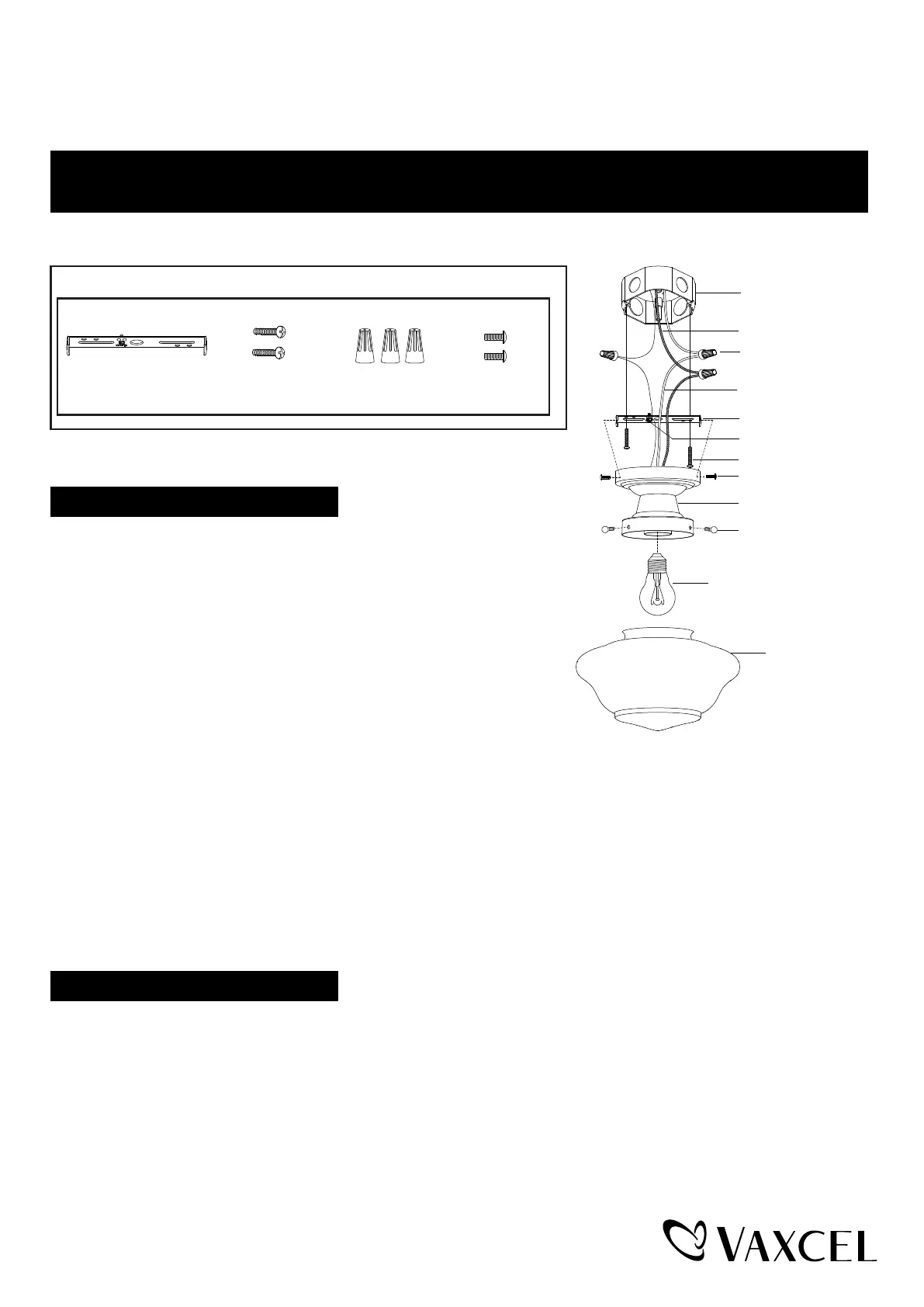

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
C0311 / C0312
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1. Unscrew the two set screws (D) and separate the mounting strap
unit (A) from the fixture.
2. Attach the mounting strap unit (A) to the outlet box by using two
mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire
connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to
the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture
to the white wire from the power source.
---Attach the fixture ground wire (green insulation or bare wire) to the mounting strap with the green ground screw,
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
4. Attach the fixture to the mounting strap unit (A), and then secure it with two set screws (D).
5. Install 1 x 60W max. medium base bulb (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
6. Attach the glass shade to the fixture, and then secure it with three fixture screws.
240327
Wire Connector (C)
Mounting Screw (B)
Set Screw (D)
Page 1 / 2
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Set Screw (D)
Fixture
Fixture Screw
Max. 60W Medium
Base Bulb (not Included)
Glass Shade
Mounting Strap Unit (A)
