ASSEMBLY AND INSTALLATION
INSTRUCTIONS
181207
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0221
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

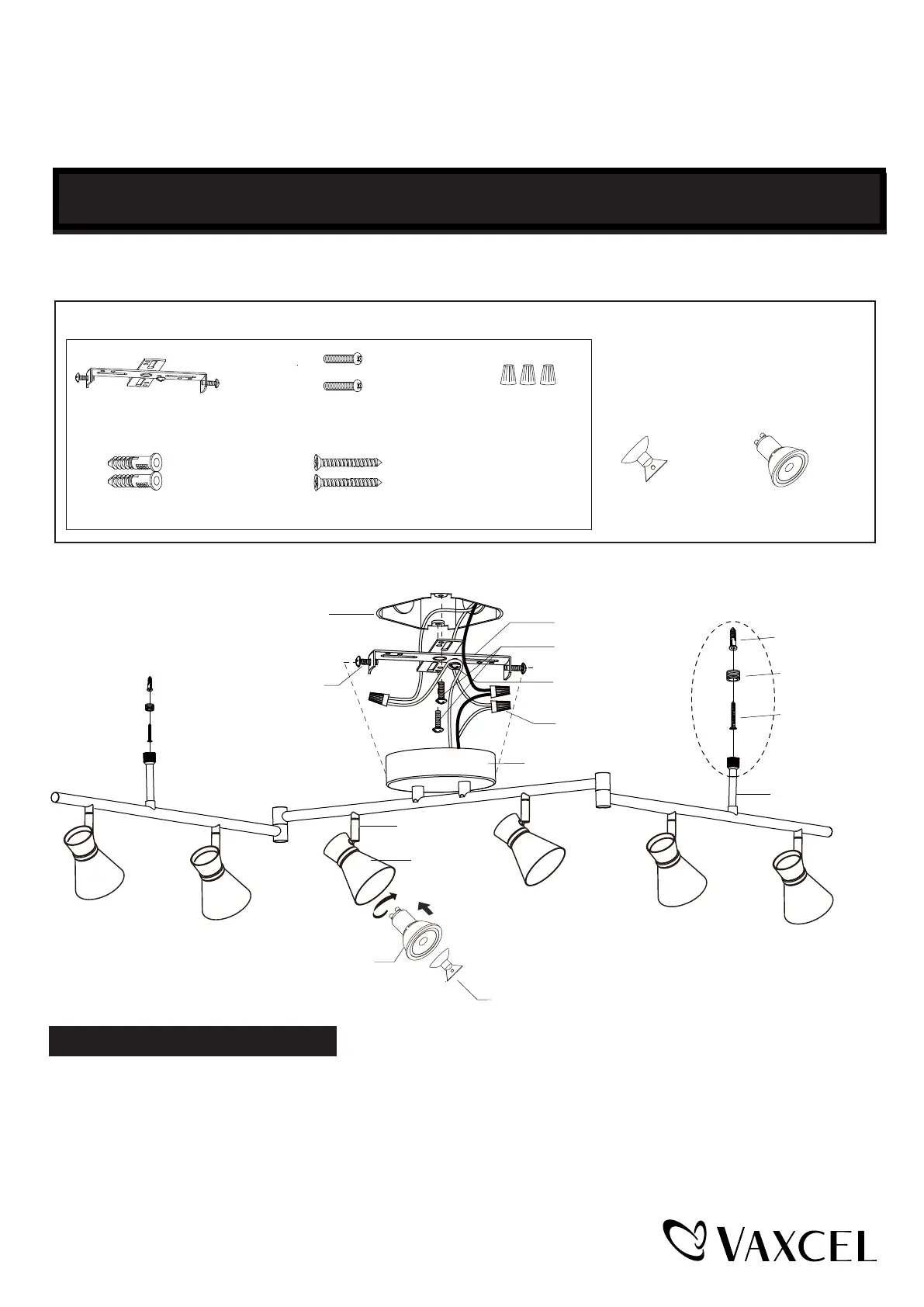

Hardware Package (included):
x
GU10 LED Max.7W (G)
(included)
Swivel
Light Head
Stem
Plastic Anchor (D)
Ceiling Support
Stem Bushing (H)
Wood Screw (E)
Canopy
Outlet Box
Set Screw
Mounting Screw (B)
Wire Connector (C)
Cross Bar (A)
Green Grounding
Screw
Cupule (F)
Cupule (F)
GU10 LED Bulb
Max.7W X 6 (G)
Cross Bar (A)
Mounting Screw (B)
Wire Connector (C)
Plastic Anchor(D)
Wood Screw (E)
Turn off the power at fuse or circuit box
Installation Steps
1. Attach the cross bar (A) to the outlet box by using two mounting screws (B).
2. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections by using the wire
connector (C) as follows:
--- Connect the black (hot) wire from the fixture to the black (hot) wire from the power source.
--- Connect the white (neutral) wire from the fixture to the white (neutral) wire from the power source.
--- Attach the fixture grounding wire to the cross bar (A) with the green grounding screw. Then connect it to the house
grounding wire with a wire connector (C).
Carefully put the wires back into the outlet box.
