Vaxcel Milano PD57111 Handleiding
Pagina's 1 Verlichting
Bekijk de handleiding van Vaxcel Milano PD57111 gratis online of download de PDF. 6 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag

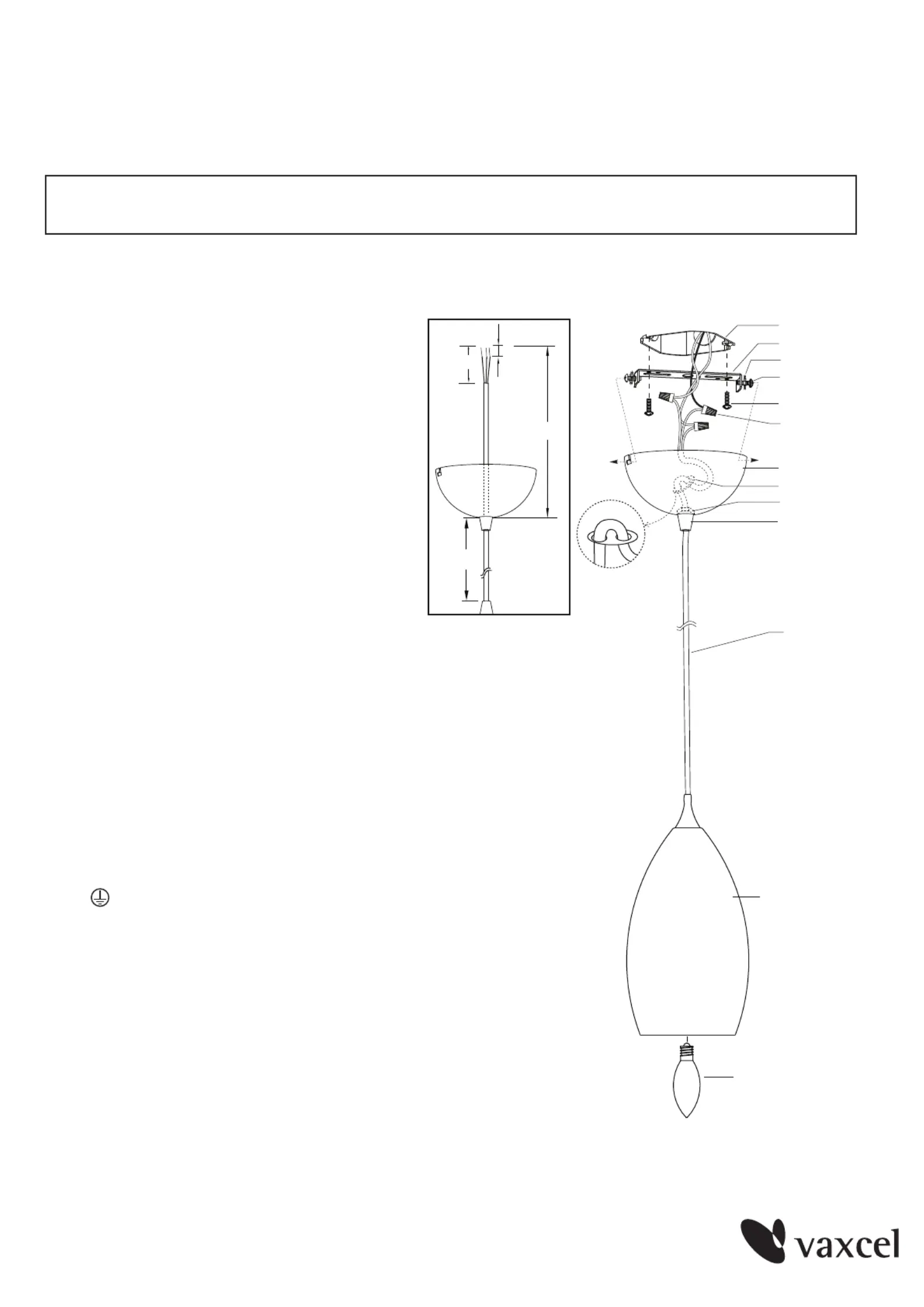

Canopy
Outlet Box
Mounting Strap
Washer
Screw
Mounting Screw
Wire Nut
c
a
b
A
C(3")
D(3/8")
B(9")
FIG.1
Strain Relief
Hex Nut
Cap Nut
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
PD57111 / PD57112 / PD57115
Glass Shade
Cord
1. Take out the socket with cord, thread the cord
through cap nut, canopy and two holes of the
strain relief.
2. Measure the desired length of the cord (A)
from the canopy to the top side of the cover
and leave an additional 9" of cord (B) above
the canopy (include the canopy). Then cut
off the unnecessary cord. (See Fig.1)
3. Adjust strain relief at 9" position from the top
of the cord.
4. Mark the 3" of cord (C) from the top of the
cord (B). Use a knife to peel off the insulation
of the cord (C) carefully to expose the 3 wires
on the inside. (See Fig.1)
Caution: Cutting too deep may cut off the
three inside wires and destroy the insulation
surface of the three inside wires.
5. Peel off the 3 wires from the top about 3/8" long(D) to
expose the copper for wiring.
6. Attach the mounting strap to the outlet box by using two
mounting screws.
7. Pull out the outlet wires and the house grounding wire from
the outlet box. Make wire connections using the wire nuts:
a. The clear wire marked "L" from the fixture to the black
wire from the power source.
b. The clear wire with white line and marked "N" from the
fixture to the white wire from the power source.
c. The clear grounding wire with green line and marked
" " from the fixture to the green grounding wire from
power source.
Carefully put wires back into the outlet box.
8. Pull the cord ( A ) down slightly until the strain relief touches
the hex nut.
Note: Adjusting the strain relief of the canopy can decrease
or increase the length of cord that is exposed.
9. Attach the canopy to the mounting strap. Lift the canopy, allowing
the two screws and washers to slide into the mating slots. Rotate
the canopy clockwise until both screws from the mounting strap
drop into the slot recesses. Tighten screws securely.
10. Install a bulb (not included). See relamping label at socket area or
packaging for maximum allowed wattage.
11. Turn on the power at the main fuse or circuit breaker box.
110218
Bulb Type B Max.60W
(not included)
