ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.
READ AND SAVE THESE INSTRUCTIONS
.
WS55408 / WS55508 / WS55608 / WS55708
WS55408

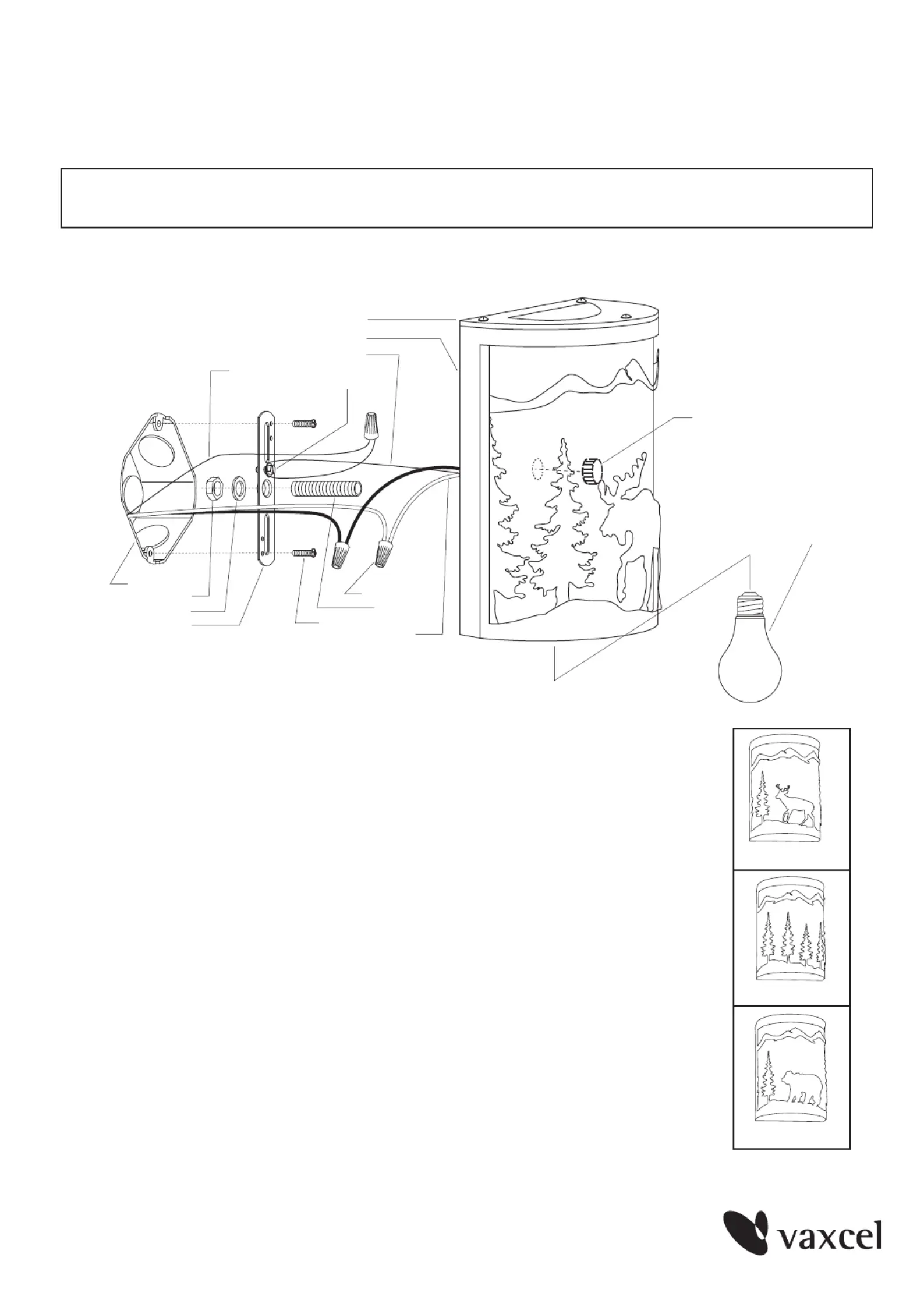

1. Attach the nipple to the mounting strap, then secure it with a washer and hex
nut.
2. Attach the mounting strap to the outlet box by using two mounting screws.
3. Pull out the outlet wires and house grounding wire from the outlet box. Make
wire connections using the wire nuts:
---The black wire from the fixture to the black wire from the power source.
---The white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green
grounding screw. Then connect it to the house grounding wire with a wire
nut.
Carefully put the wires back into the outlet box.
4. Attach the fixture to the mounting strap by inserting the nipple, then secure
it with the end cap.
CAUTION: With silicone caulking compound, caulk completely around
where the back side of the fixture meets with the wall surface to
prevent water from seeping into the outlet box.
5. Install a bulb (not included). See relamping label on socket area or packaging
for maximum allowed wattage.
6. Turn on the power at the main fuse or circuit breaker box.
100325
Mounting Screw
Fixture Wire
Nipple
Mounting Strap
Hex Nut
Wire Nut
Washer
Fixture Grounding Wire
Back Side of the Fixture
Fixture
Green Grounding Screw
Outlet Box
House Grounding Wire
End Cap
Bulb Type A Max.100W
(not included)
WS55508
WS55708
