Hardware Package (
included
):
Crossbar Unit (A)Mounting Screw (B)Wire Connector (C) Bolt Nut (D)
W
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0461
Page 1 / 2
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two bolt nuts (D), remove the crossbar unit (A)
from the backplate.
2. Attach crossbar unit (A) to the outlet box using two mounting screws (B).
Adjust the length of the preinstalled fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are lined up
horizontally to make the fixture level.
3. Pull out the wires and ground wire from the outlet box. Make wire
connections using the wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the crossbar unit (A) with the green ground screw,
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.

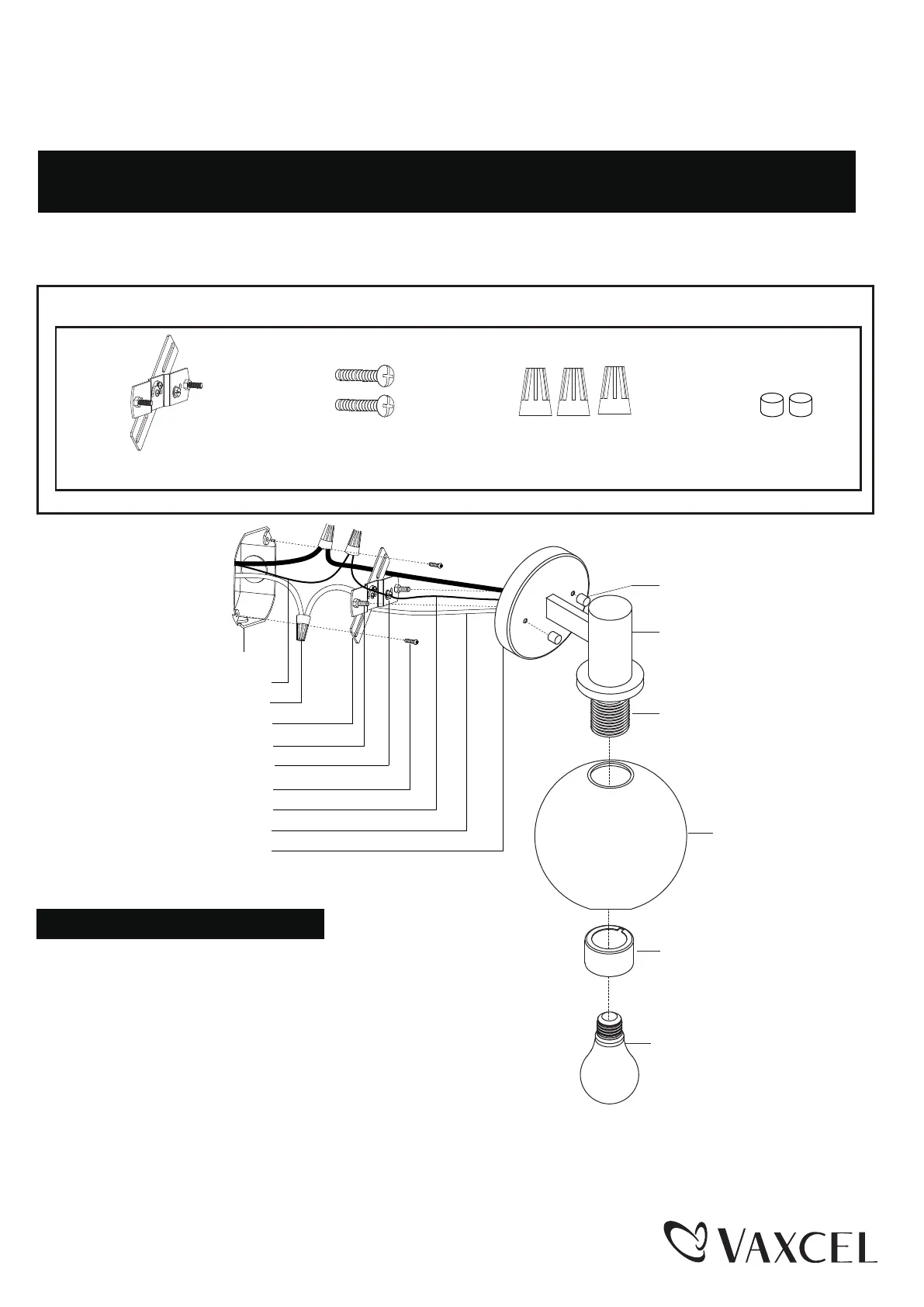

Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Fixture Mounting Screw
Crossbar Unit (A)
Fixture Wire
Backplate
Fixture Ground Wire
Glass Shade
Socket Ring
Max. 60W Medium Base
Bulb (not included)
Bolt Nut (D)
Fixture
Socket
231121
