ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

W0399 / W0400

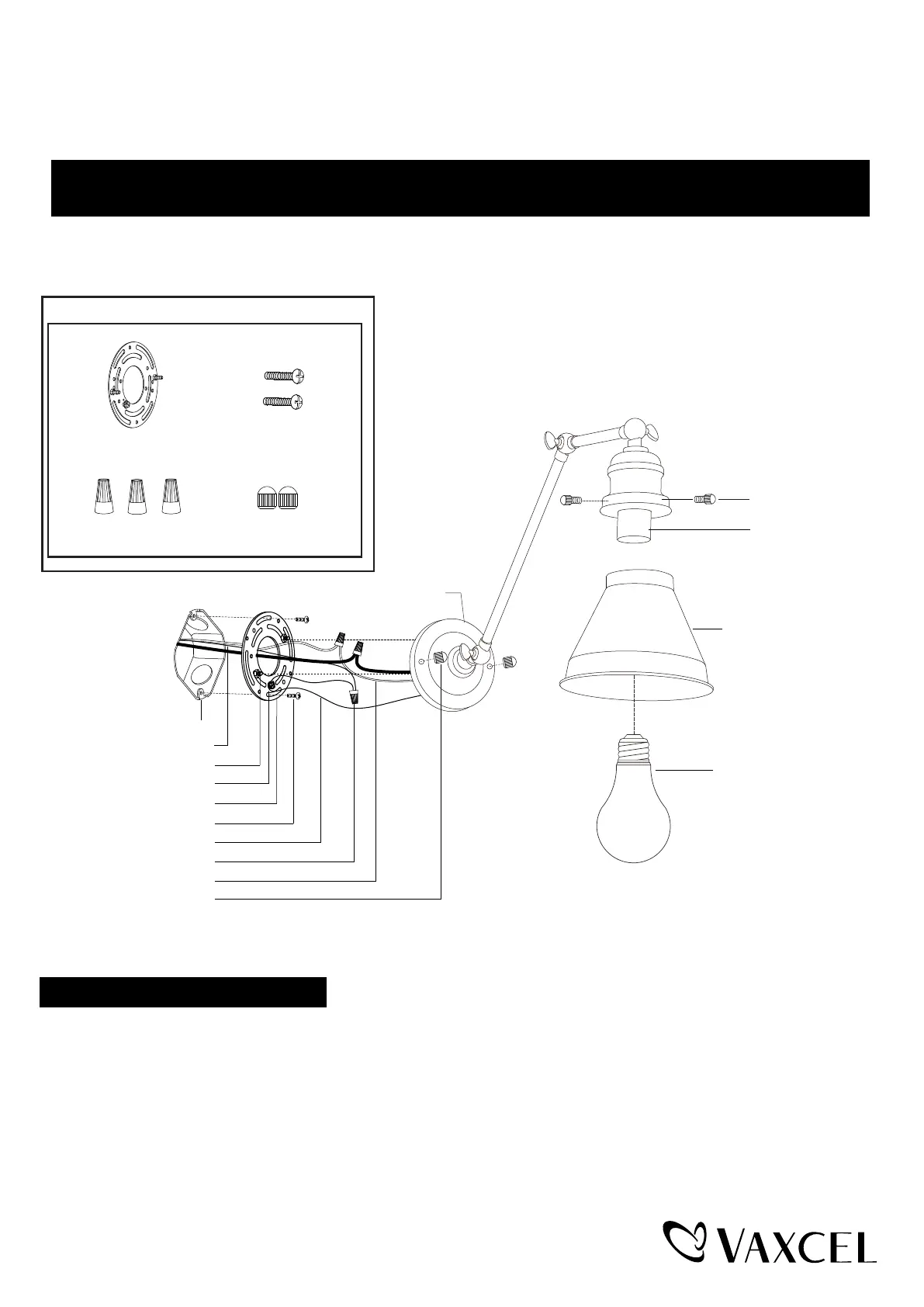

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Mounting Screw (B)

Wire Connector (C)

Mounting plate Unit (A)

Bolt Nut (D)

Bolt Nut (D)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Fixture Mounting Screw

Mounting Plate Unit (A)

Fixture Wire

Fixture Ground Wire

Backplate

Steel Shade

Socket

Max.60W Type A Bulb

(not included)

Bolt Nut-a

1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the

preinstalled fixture mounting screws if necessary.

Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.

Turn off the power at fuse or circuit box.

Installation Steps
