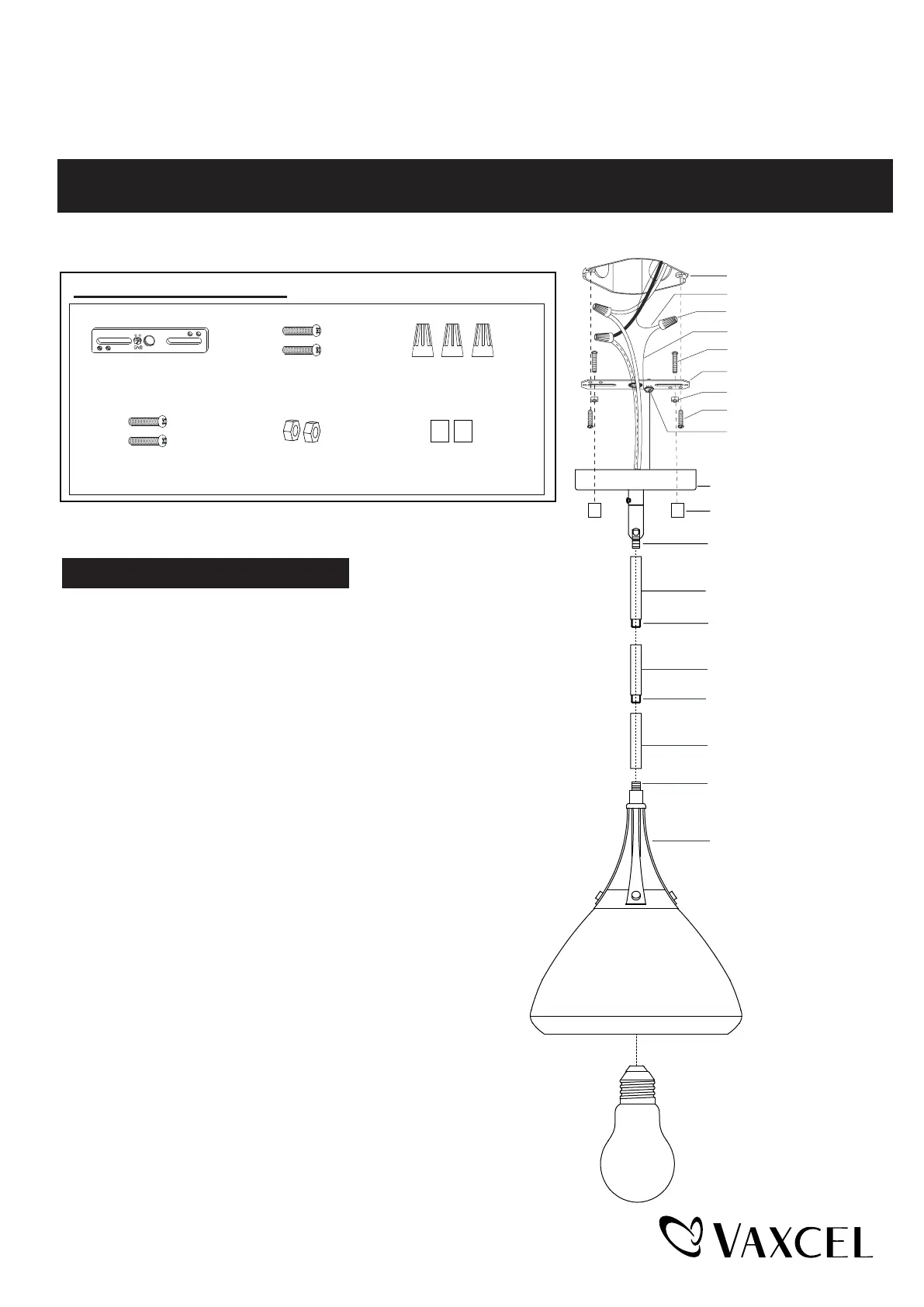

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0369
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Strap (A)
Mounting Screw (B)Wire Connector (C)
Fixture Mounting Screw (D)
Lock Nut (E)Bolt Nut (F)
Threaded Pipe
Fixture Canopy
Bolt Nut (F)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
OutletBox
HouseGround Wire
Wire Connector (C)
Fixture Ground Wire
Fixture Mounting Screw (D)
Mounting Strap (A)
Green Ground Screw
Lock Nut (E)
Mounting Screw (B)
Threaded Pipe
Fixture
Turn off the power at fuse or circuit box
Installation Steps
1. Thread two fixture mounting screws (D) through the
mounting strap (A), then secure with two lock nuts (E),
adjust the length of the fixture mounting screws (D)
if necessary.
2. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
3. Rod connections:
a. Thread the fixture wire from the fixture through
the lower rod, then secure the lower rod onto
fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod,
then secure the middle rod onto the lower rod
using the threaded pipe.
c. Thread the fixture wire through the upper rod,
then secure the upper rod onto the middle rod
using the threaded pipe.
d. Thread the fixture wire through the canopy,
then secure the canopy onto the upper rod
using the threaded pipe.
Note: Length adjustable from 17-1/4” to 59-3/8”,
use fewer rods if shorter length is desired.
Max.60W Medium
Base bulb
(not included)
211029
