1. Attach two fixture mounting screws (C) to the mounting strap (A), and

then secure it with two lock nuts (E). Adjust the length of the fixture

mounting screws if necessary.

2. Attach the mounting strap (A) to outlet box by using two mounting

screws (B).

3. Rod Connections:

a. Thread the fixture wire through the lower rod, then secure the

lower rod onto tube using the threaded pipe.

b. Thread the fixture wire through the middle rod and then secure

the middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then secure the

upper rod onto the middle rod using the threaded pipe.

Note: Length adjustable from 22" to 64". Use fewer rods

if shorter length is desired.

4. Thread the fixture wire through the canopy kit, then secure the

rod assembly to set threaded pipe of the canopy kit.

5. Pull out the source wires from the outlet box. Make wire connections

using wire connectors

(D)

as follows:

--- Connect the smooth-coated wire (marked) from the fixture

to the black wire from the power source.

--- Connect the ribbed-coated wire (unmarked) from the fixture

to the white wire from the power source.

--- Attach the fixture ground wire to the mounting strap

(A)

with

the green ground screw, then connect it to the house ground

wire with a wire connector

(D).

Carefully put the wires back into the outlet box.

6. Attach the canopy kit to the mounting strap

(A)

by inserting the

fixture mounting screws

(C)

, then secure it with two bolt nuts

(F)

.

7. Attach the glass shades onto the fixture, secure them with the socket rings.

8. Install bulbs (not included). See relamping label at socket area or packaging

for maximum allowed wattage.

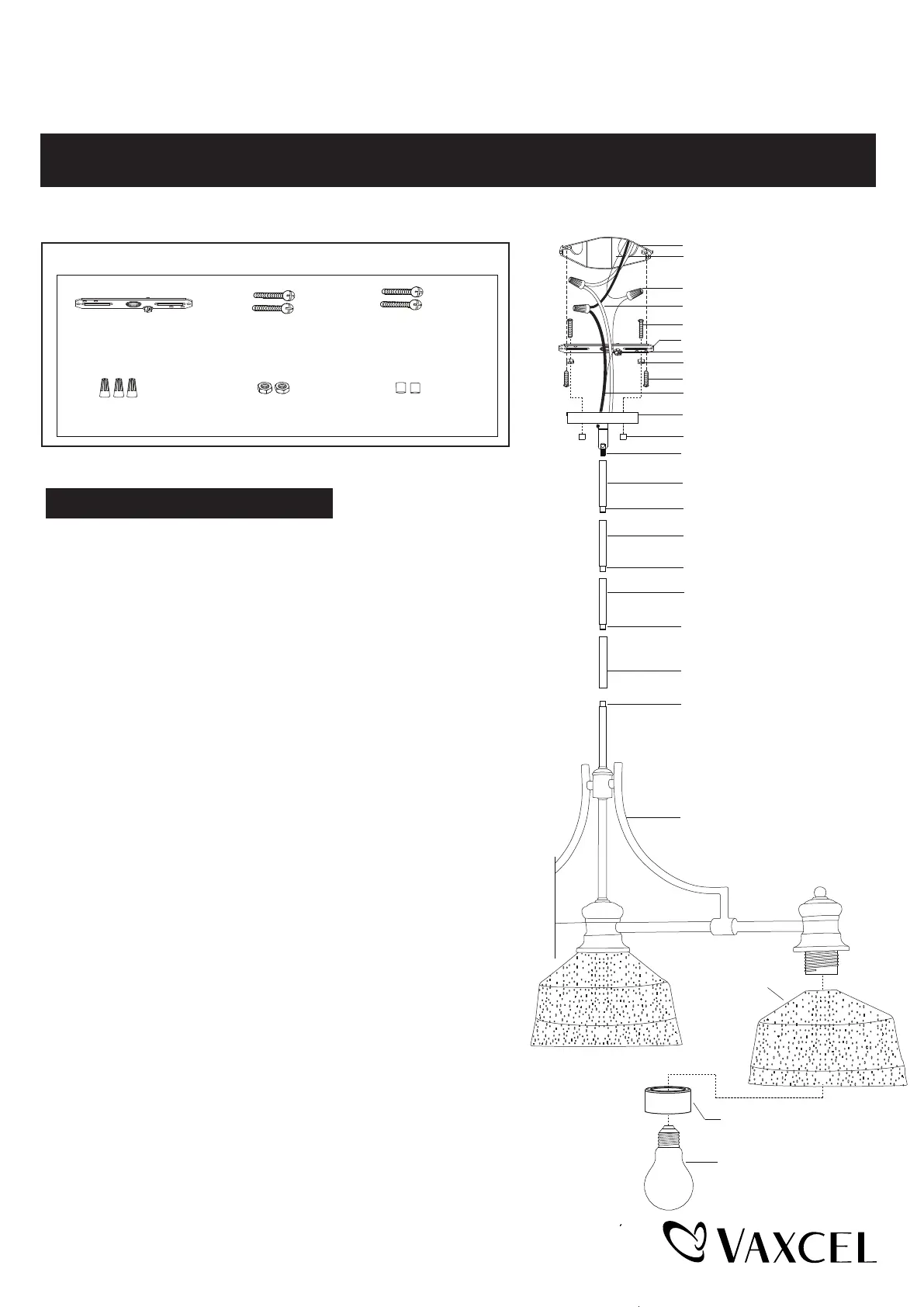

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instruction.

H0293 / H0221

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Canopy Kit

Outlet Box

House Ground Wire

Wire Connector (D)

Lock Nut (E)

Mounting Strap (A)

Green Ground Screw

Mounting Screw (B)

Upper Rod

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Threaded Pipe

Threaded Pipe

Fixture Wire

Fixture Mounting Screw (C)

Fixture Ground Wire

Threaded Pipe

Set Threaded Pipe

Bolt Nut (F)

Fixture

Max. 60W Type A Bulb

(not included)

Socket Ring

Glass Shade

Mounting Screw (B)

Lock Nut (E)Wire Connector (D)

Mounting Strap (A)Fixture Mounting Screw (C)

Bolt Nut (F)

Page 1 / 2

231107
