ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0381
T
Turn on the power at fuse or circuit box.
W
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.READ
AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):

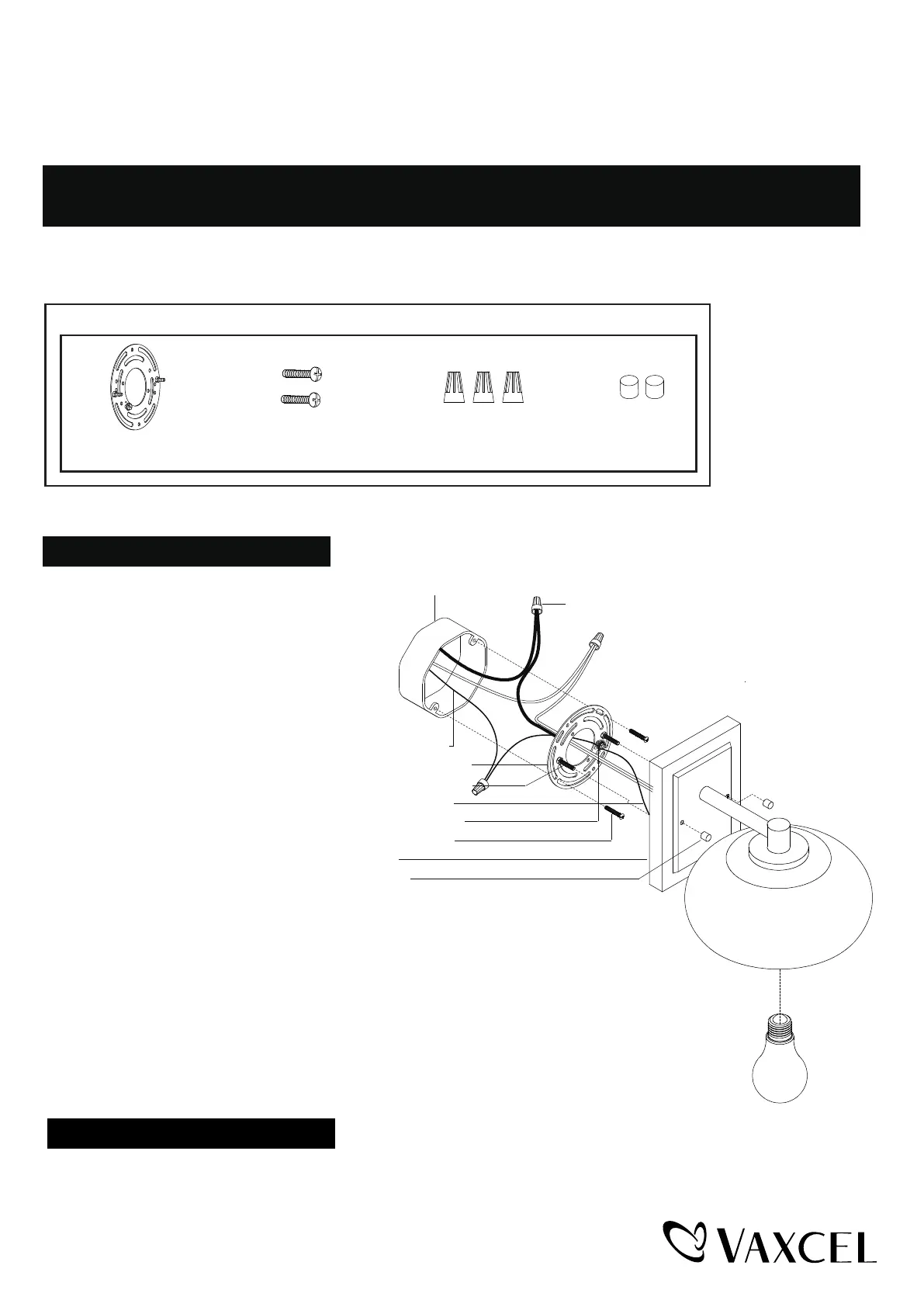

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Mounting Plate Unit (A)
Backplate
Bolt Nut (D)
Fixture Ground Wire
Outlet Box
Wire Connector (C)
House Ground wire
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Mounting Screw
Max 60W Medium base bulb
(not included)
Turn off the power at fuse or circuit box
Installation Steps
1.Attach mounting plate unit (A) to the
outlet box using two mounting screws (B).
Adjust the length of the preinstalled fixture
mounting screws if necessary.
Note: Make sure that the fixture
mountingscrews are lined up
horizontally to make the fixture level.
2.Connect the smooth wire (marked)
to black wire (power), the ribbed
wire (unmarked) to white wire
(neutral) with the wire
connectors (C) provided.
Connect the copper wire on the
light fixture to the mounting plate
unit (A) by securing it with the
green ground screw, then connect
it to the house ground wire with
wire connectors (C).
Carefully put all the wires into outlet box.
3.
Attach the backplate to the mounting plate unit (A) by aligning and inserting the two
fixture mounting screws from the mounting plate unit (A) into the open holes on the
backplate, then expose fixture mounting screws before screwing the two bolt nuts (D).
4.Install 1 X 60W medium base bulb (not included).
See relamping label at socket area or packaging for maximum wattage allowed.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
