ASSEMBLY AND INSTALLATION
INSTRUCTIONS
191105
1. Attach threaded pipe (E) to the mounting strap (A),
then secure it with a washer (G) and hex nut (F).
2. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
3. Secure the top loop (I) to threaded pipe (E).
4. Choose the length of the chain (L) you need,
then weave the fixture wire and the fixture
ground wire through the chain (L), collar (J)
and canopy (H).
5. Connect one end of the chain (L) with the loop by using a loop lock (K).
6. Connect the other end of the chain (L) with the top loop (I) by using another loop lock (K).
7. Thread the fixture wire and fixture ground wire through the top loop (I), threaded pipe (E) and
mounting strap (A).
Turn off the power at fuse or circuit
box.
Installation Steps
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0311

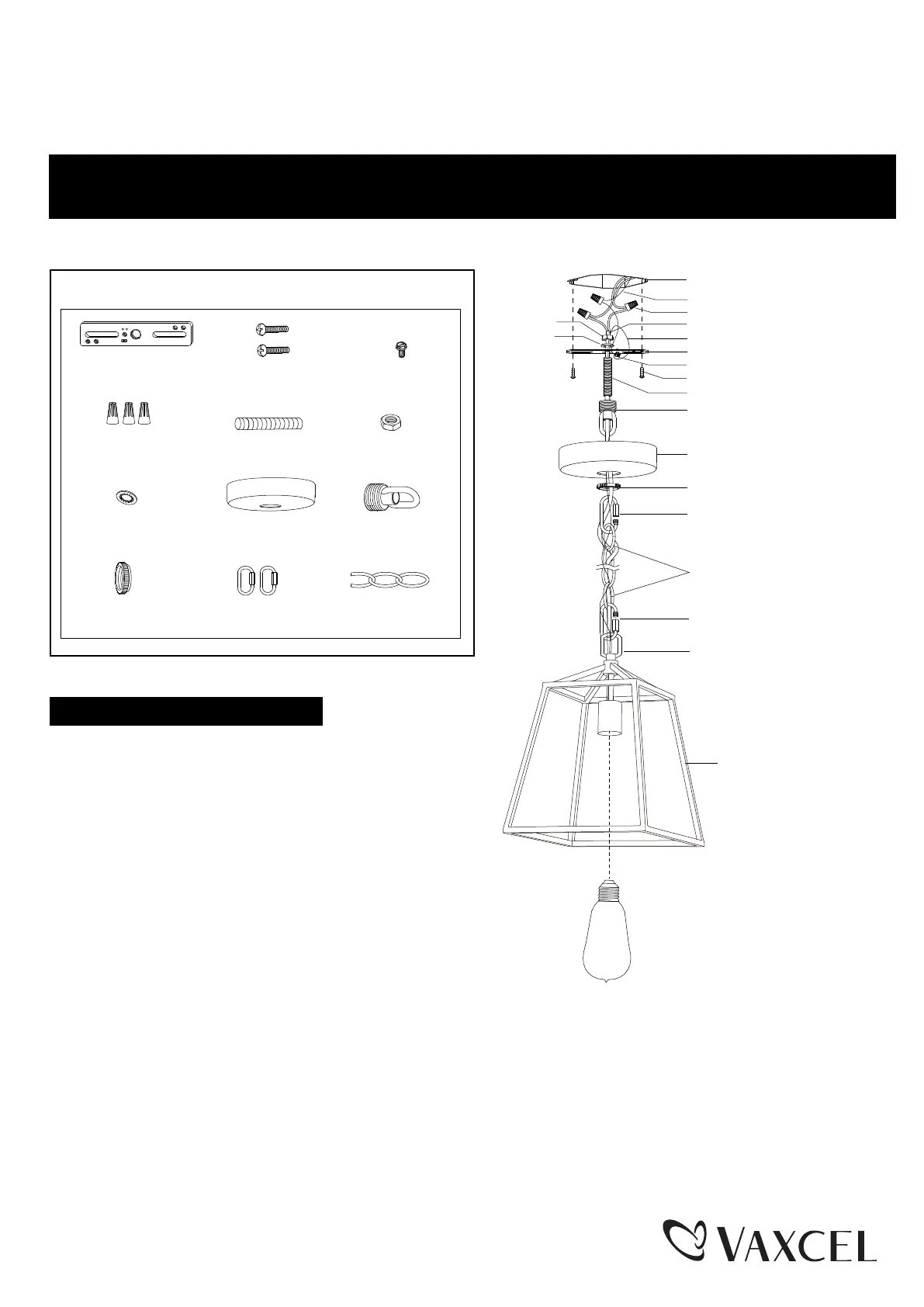

Mounting Strap (A)
Wire Connector (D)
Collar (J)
Washer (G)
Mounting Screw (B)Green Ground
Screw (C)
Hex Nut (F)
Canopy (H) Top Loop (I)
Threaded Pipe (E)
Loop Lock (K)
Chain (L)
Hardware Package(inculded):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Outlet Box
Housing Ground Wire
Wire Connector (D)
Fixture Wire
Fixture Ground Wire
Mounting Strap (A)
Green Ground Screw (C)
Mounting Screw (B)
Threaded Pipe (E)
Hex Nut (F)
Washer (G)
Top Loop (I)
Fixture
Canopy (H)
Loop
Loop Lock (K)
Loop Lock (K)
Collar (J)
Chain (L)
Medium Base Bulb Max.60W
(not included)
