PD35454/PD35459
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.

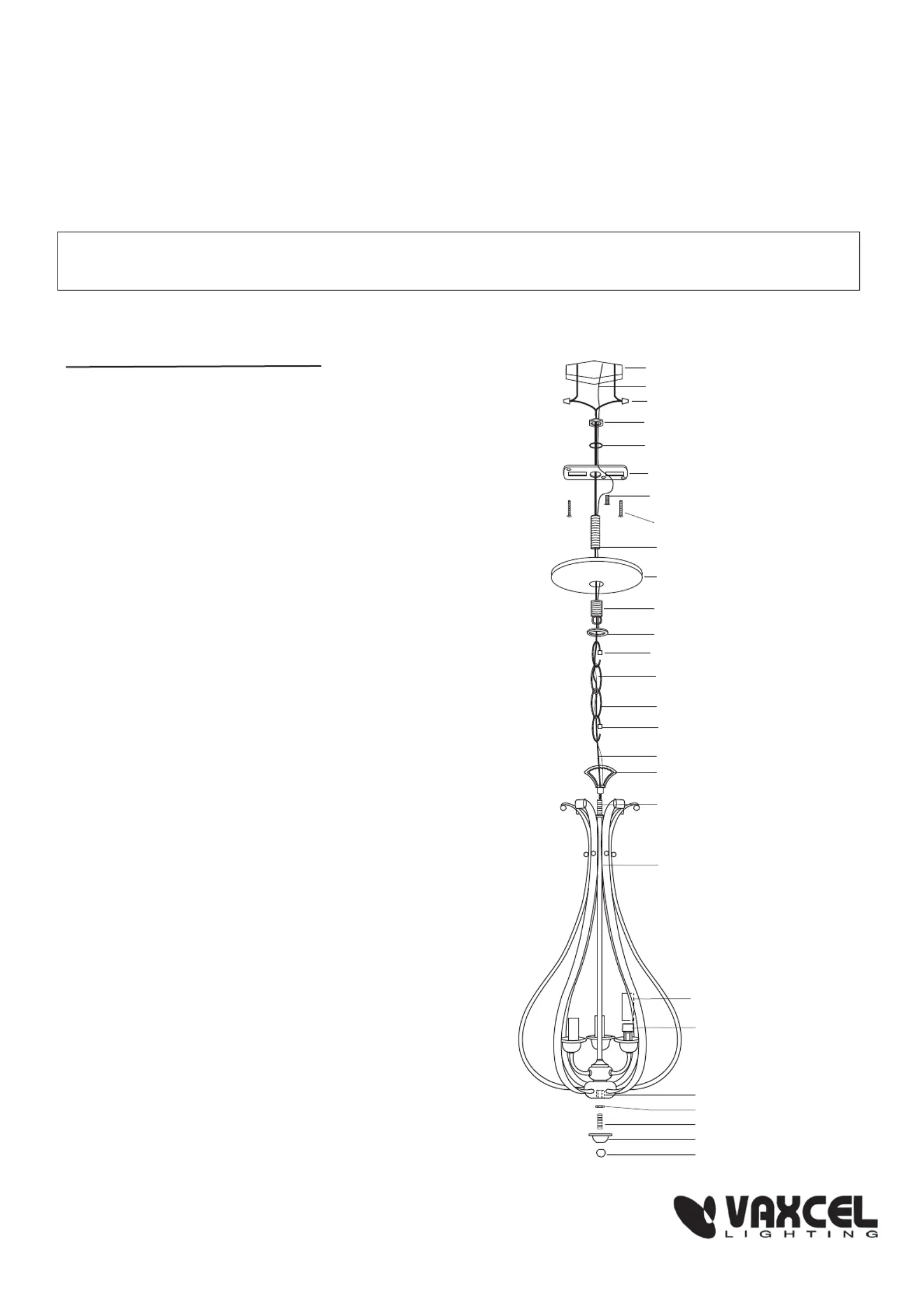

Installation Steps
Nipple-2
Fixture
Fixture Wire
Chain
Mounting Screw
Nipple-1
Grounding Wire
Collar
Top Loop
Canopy
Mounting Strap
Green Grounding Screw
Hex Nut
Wire Nut
Washer
Ceiling Box
House Grounding Wire
Loop
Loop Lock
Loop Lock
1. Attach the nipple-1 to the mounting strap, and then
secure with a washer and a hex nut.
2. Attach the mounting strap to the ceiling box by using
two mounting screws.
3. Secure the loop to the nipple-2 tightly.
4. Choose a certain length of the chain you need, and
then weave the fixture wire and the grounding wire
through the chain links. Connect one end of the chain
with the loop by using the loop lock.
5. Secure the top loop to the nipple-1.
6. Thread the fixture wire and grounding wire through
the collar, top loop, canopy, nipple-1 and mounting
strap in order.
7. Connect the other end of the chain link to the top loop by
using the loop lock.
8. Make wire connections with wire nuts:
---The smooth wire (marked) from fixture to the black
wire from power source.
---The ridged wire (unmarked) from fixture to the white
wire from power source.
---Attach the grounding wire and house grounding wire
to the mounting strap with a green grounding screw.
Carefully tuck wires back into the ceiling box.
9. Attach the canopy to the mounting strap by inserting
the top loop, and secure with the collar.
10. Screw the nipple-3 into the couple, and secure with the
hex nut. Then attach the cap upward to the fixture, and
secure with the finial.
11. Attach the candle covers to the sockets.
12.Install bulbs. (Please do not exceed the maximum
capacity which, is recommended on the package.)
13.Turn on the power at fuse or circuit box.
Candle Cover
Socket
Couple
Nipple-3
Cap
Finial
Hex Nut
