INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

67-120: Green

67-121: Red

67-122: Red / Remote Compatible

67-125: Green / Remote Compatible

© Copyright 2023 Satco Products, Inc. 3/23 v1.3

WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or any

maintenance of the xture.

• To avoid damage, falling, electric shock or re, do not

modify the xture or replace accessories.

• Only authorized, qualied personnel should install this

xture and should follow the owner’s manual.

• Do not dismantle the xture.

• Do not touch the power supply when the xture is

operating.

• For use in environments where an accumulation of

non-conductive dust on the xture may be expected.

• Damp rated. Do not use outdoors.

• Do not mount near gas or electric heaters.

• Do not let power cords touch hot surfaces.

• Use caution when servicing batteries. Avoid possible

shorting.

• Equipment should be mounted in locations and at heights

where it will not readily be subjected to tampering by

unauthorized personnel.

• The use of accessory equipment is not recommended

and may cause an unsafe condition.

• Do not use this equipment for other than intended use.

• Disconnect AC Power and unplug battery before

servicing.

• Battery in this unit may not be fully charged. After the

AC service is supplied to unit, let the battery charge up

for at least 24 hours before performing any tests.

IMPORTANT: This product must be installed in accordance

with the applicable installation code by a person familiar

with the construction and operation of the product and the

hazards involved.

MAXIMUM MOUNTING HEIGHT: 117ft (5.18m)

MAINTENANCE: Battery may need to recharge upon

initial power up. We recommend that the equipment be

tested regularly in accordance with local codes. Replace

the batteries as needed if discharge time does not achieve

90 minutes.

OPERATION: Press the test button, unit luminance by

battery backup and the LED indicator will turn off, release

the test switch, LED indicator will turn on.

ROUTINE TESTING: National Electric Code (NEC) and

NFPA life safety code regulations require that routine tests

need to be performed as stated:

• Once every month, perform 30 second duration test.

Push in and hold the test switch to perform this test.

• Once every 12 months, perform full 90 minute test.

Disconnect AC power supply and transfer to emergency

mode. The unit should stay on 90 minutes minimum.

Models: 67-120, 67-121, 67-122, 67-125

Use Flexible Conduit Only

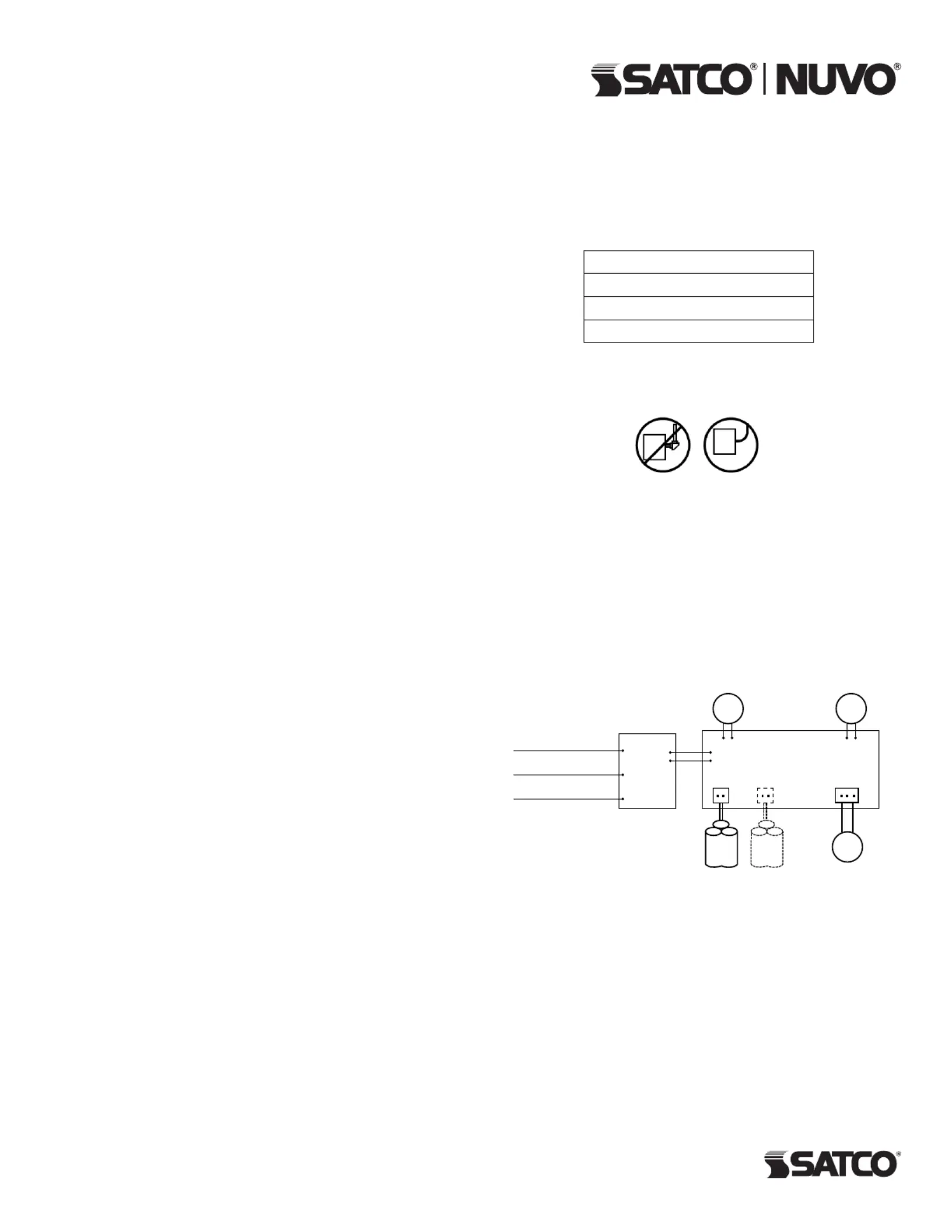

WIRING DIAGRAM

• Connect the white wire to neutral.

• If using 120VAC, connect the black wire to the

hot lead.

• If using 277VAC, connect the orange wire to

the hot lead.

• Cap off unused wires. In all cases, use standard

wire nuts to connect to wires.

Transformer

PC Board

Lamp

Head

Battery

Battery

(option)

Lamp

Head

Remote

Head

Remote

Connector

Orange 277VAC

Black 120VAC

White NEUTRAL

TROUBLE SHOOTING GUIDE: If LED indicator

does not illuminate, check the following:

1. Check AC supply – verify that unit has 24 hours

AC supply.

2. Unit is shorted or battery is not connected.

3. Battery discharged. Permit unit to charge for

24 hours then re-test.

LED EXIT SIGNS

EXIT AND EMERGENCY LIGHT COMBO

BATTERY BACKUP
