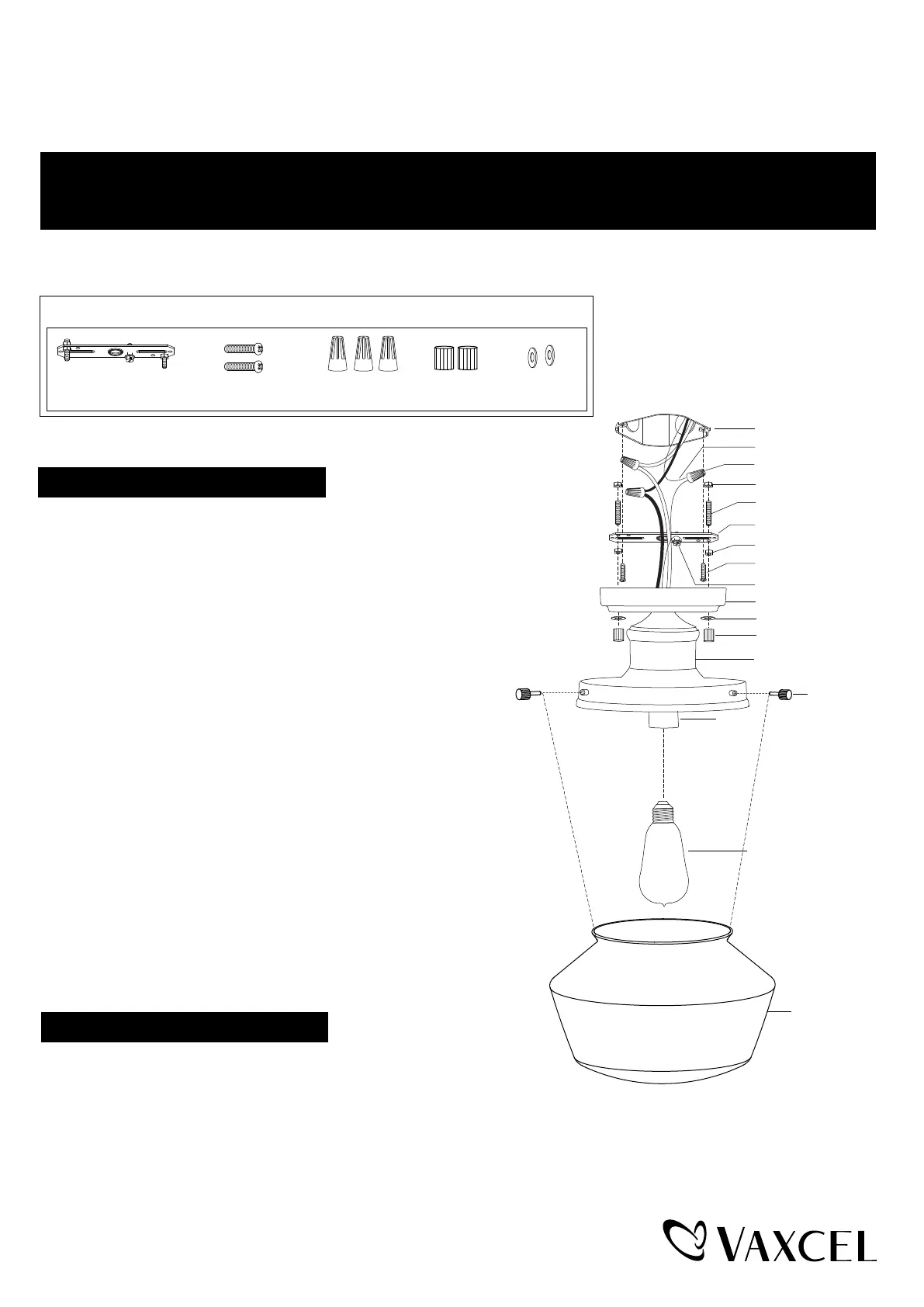

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

191128

T0546

Hardware Package (included):

W

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING:

TO AL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ

AND SAVE THESE INSTRUCTIONS.

Mounting Strap Unit (A)Mounting Screw (B)Wire Connector (C)

Bolt Nut (D)Rubber Pad (E)

Outlet Box

House Grounding Wire

Wire Connector (C)

Headless Screw

Mounting Strap Unit (A)

Green Grounding Screw

Canopy

Bolt Nut (D)

Lock Nut

Mounting Screw (B)

Lock Nut

Rubber Pad (E)

Fixture

Socket

Set Screw x 3

1. Remove the two bolt nuts, the mounting strap unit (A) from the canopy.

2. Attach the mounting strap unit (A) to the outlet box using two

mounting screws (B).

3. Pull out the source wires from the outlet box.

Make wire connections using wire connector (C) as follows:

• Connect the black wire from the fixture to the black wire

from the power source.

• Connect the white wire from the fixture to the white wire

from the power source.

• Attach the fixture grounding wire to the mounting strap unit (A)

with the green grounding screw, then connect it to the house

grounding wire with a wire connector (C).

Carefully put the wires back into the outlet box.

4. Attach the canopy to the mounting strap unit (A) by inserting

the headless screw, then secure it with two rubber pads (E)

and two bolt nuts (D).

5. Install the bulb (not included). Check relamping label at socket area

or packaging for maximum wattage allowed .

6. Attach the glass shade to the fixture, secure it with three set screws.

Turn off the power at fuse or circuit box

Turn on the power at fuse or circuit box

Installation Steps

Glass Shade

Bulb (not included)

Max.60W Type Vintage
