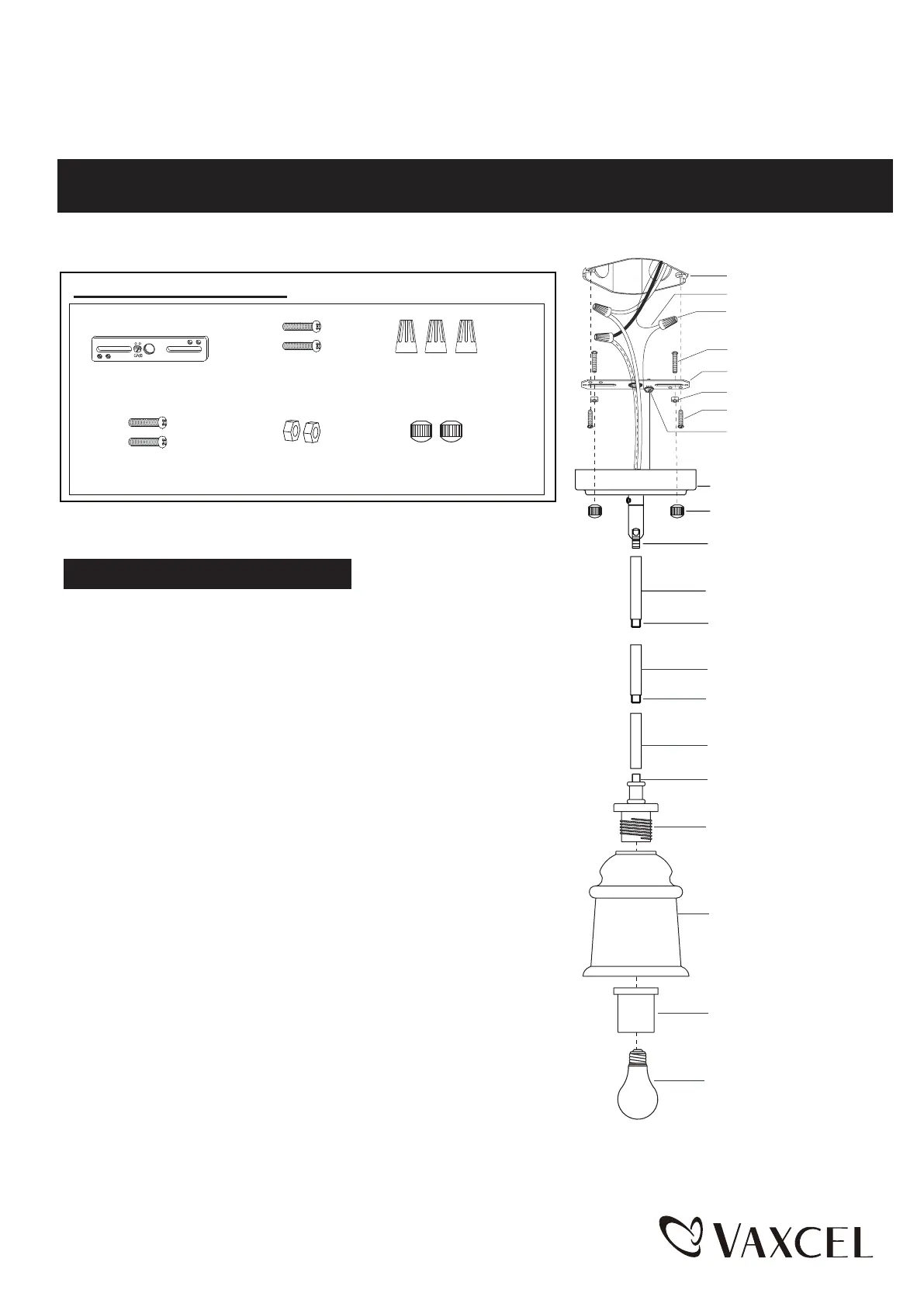

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0306
Hardware Package (included):
190724
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
Mounting Strap (A)
Mounting Screw (B)Wire Connector (C)
Fixture Mounting Screw (D)
Lock Nut (E)Ball Nut (F)
Fixture Canopy
Ball Nut (F)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Lower Rod
Socket
Glass Shade
Socket Ring
OutletBox
HouseGround Wire
Wire Connector (C)
Fixture Mounting Screw (D)
Mounting Strap (A)
Green Ground Screw
Lock Nut (E)
Mounting Screw (B)
Threaded Pipe
Threaded Pipe
Type A Max 60W
or ST Vintage Bulb
(not included)
1. Thread two fixture mounting screws (D) through the mounting strap (A),
then secure with two lock nuts (E). Adjust the length of the fixture
mounting screws (D) if necessary.
2. Attach the mounting strap (A) to the outlet box by using two mounting
screws (B).
3. Rod connections:
a. Thread the fixture wire from the fixture through the lower rod,
then secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the
upper rod onto the middle rod using the threaded pipe.
d. Thread the fixture wire through the canopy, then secure the
canopy onto the upper rod using the threaded pipe.
Note: Length dajustable from 10-1/4” to 55-1/4”. Use fewer rods
if shorter length is desired.
4. Pull out the source wires from the outlet box. Make wire connections
using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture ground wire to the mounting strap (A) with the
green ground screw, then connect it to the house ground wire
with a wire connector (C).
Carefully put the wires back into the outlet box.
