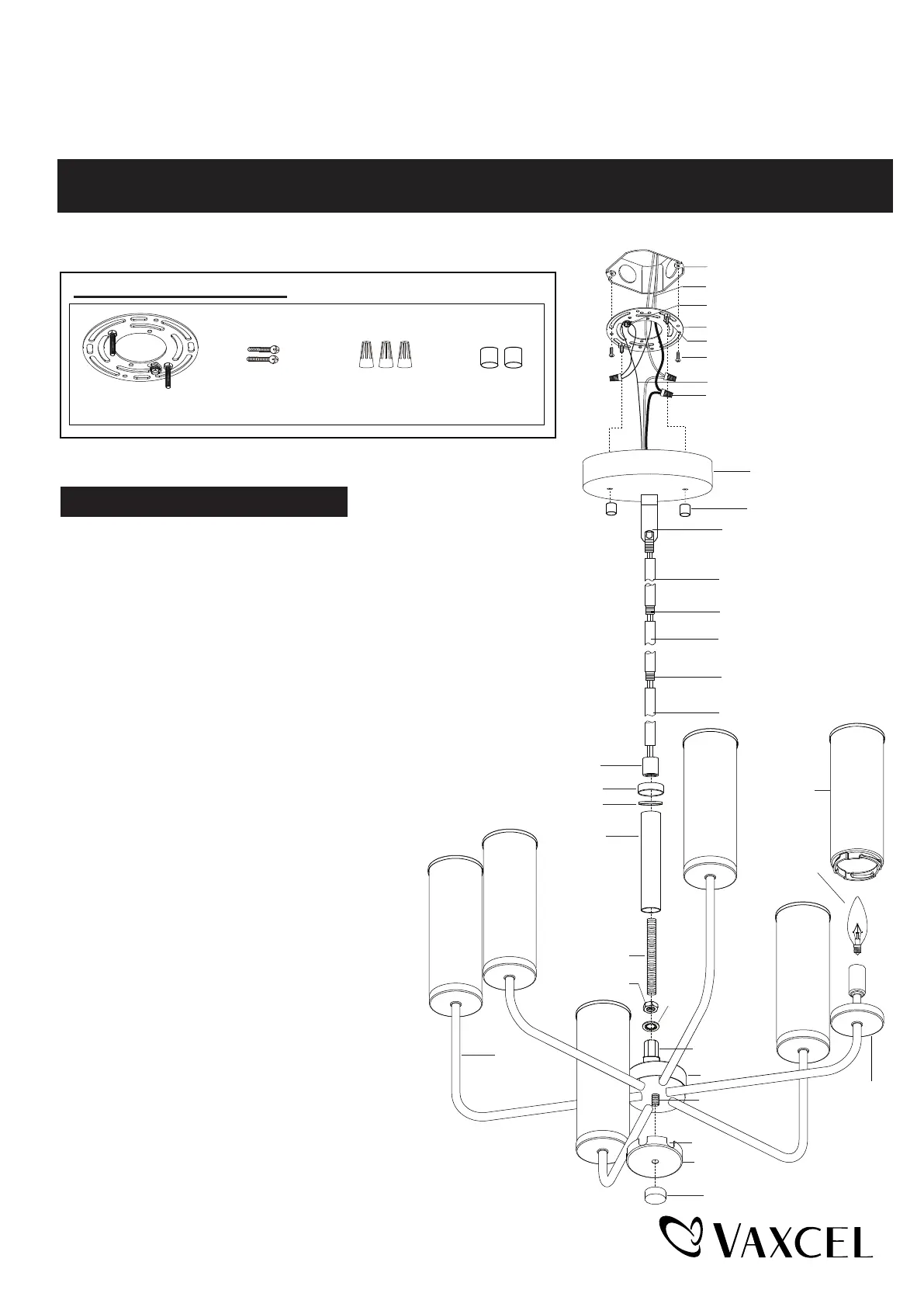

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0266
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps
1. Attach the mounting plate unit (A) to the outlet box by using two
mounting screws (B).
2. Attach the threaded pipe to the coupling of the main fixture,
secure it with a washer and hex nut. Adjust the length of the
threaded pipe if necessary.
3. Attach the tube, metal pad and cap onto the coupling by
inserting the threaded pipe, and then secure with the metal part.
4. Adjust the arms of the fixture to fit in six slots of decorative cup,
then put the decorative cup on the fixture by inserting the
threaded pipe-1, secure it with the finial.
5
. Rod Connections:
a. Thread the fixture wire from the fixture through
the lower rod, then secure the lower rod onto
fixture using the threaded pipe.
b. Thread the fixture wire through the middle
rod and then secure the middle rod onto the
lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod,
then secure the upper rod onto the middle rod
using the threaded pipe.
Note: Length adjustable from 21-3/4" to
72-3/4". Use fewer rods if shorter length is
desired.
6.
Thread the fixture wire through the canopy kit,
then secure the rod assembly to the set threaded
pipe of the canopy kit.
Threaded Pipe
Metal Part
Metal Pad
Cap
Tube
Glass Shade
Glass Holder
Max.60W
Type B Bulb
(not included)
Hex Nut
Coupling
Arm
Threaded Pipe-1
Fixture
Decorative Cup
Slot
Finial
Washer
Canopy Kit
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Set Threaded Pipe
Bolt Nut (D)
Mounting Screw (B)Wire Connector (C)Mounting Plate Unit (A)
Bolt Nut (D)
220228
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
