L SHOCK, BE SURE TO SHUT OFF

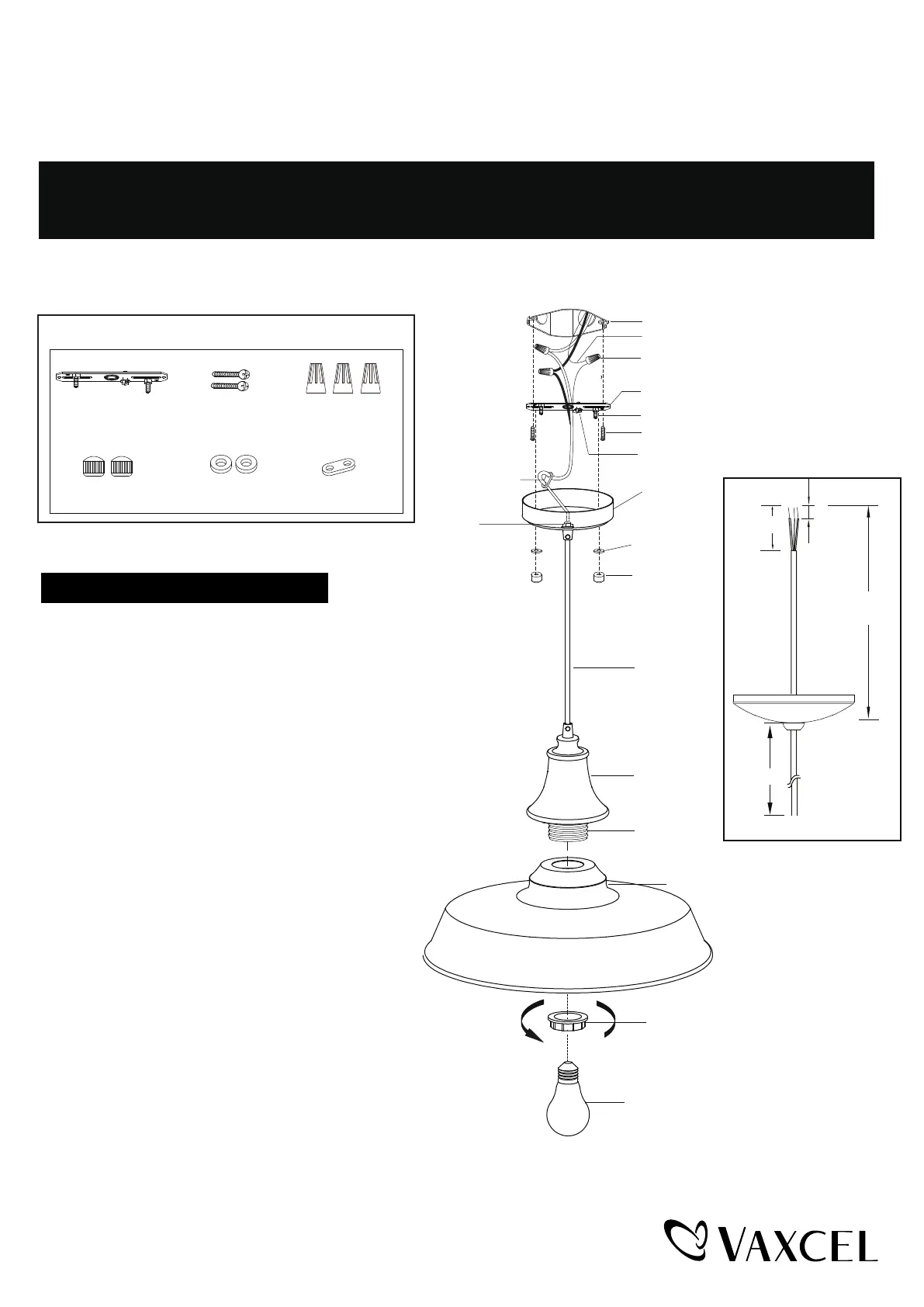

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
1. Measure the desired length of the cord (a) from the canopy
to the shade and leave additional 9" cord (b) above the
canopy (include the canopy). Then cut off the unnecessary
cord. (See Fig.1)
2. Adjust strain relief (F) at 9" position from the top of the cord.
3. Mark the 3" cord (c) from the top of the cord (b).
Use a knife to peel off the insulation of the cord
(c) carefully to show the 3 inside wires out.
(See Fig.1)
Caution : Cutting too deep may cut off three
inside wires and destroy the insulation surface
of the three inside wires.
4. Peel off the 3 wires from the top about 3/8" long (d)
to expose the copper for wiring.
5.
Attach the mounting strap unit
(A)
to outlet box by
using two mounting screws (B).
Bolt Nut (D)
Mounting Strap Unit (A)
Mounting Screw (B)
Wire Connector (C)
Rubber Pad (E)
Strain Relief (F)
Outlet Box
House Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Fixture Mounting Screw
Green Ground Screw
Mounting Screw (B)
Canopy
Bolt Nut (D)
Cord
Holder
Socket
Shade
Socket Ring
Max. 60W Type A Bulb
(not included)
Strain Relief (F)
Hex Nut
a
c (3")
d (3/8")
b (9")
Fig.1
Rubber Pad (E)
Page 1 / 2
T0373 / T0374 / T0485 / T0489
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
230321
