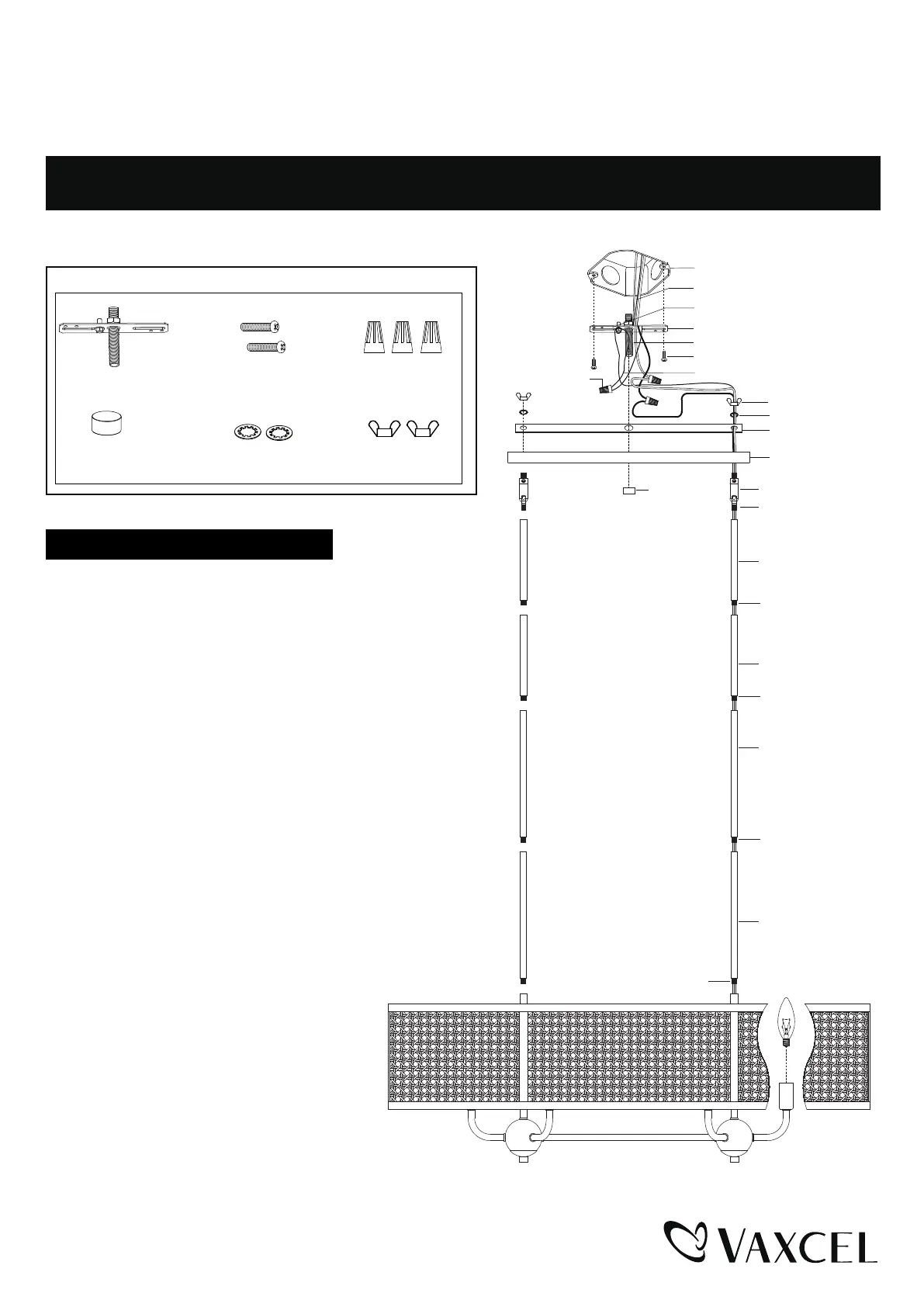

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0308
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Strap Unit (A)Mounting Screw (B)
Finial (D)
Wire Connector (C)
Papillon Nut (F) Washer (E)
1. Attach mounting strap unit (A) to outlet box by using
two mounting screws (B).
Note: The depth of threaded pipe on the mounting
strap unit may need to be adjusted to properly fit
the fixture.
2. Rod connections:
a. Thread the fixture wires from the fixture through the lower
rod, then secure the lower rod onto fixture using the threaded
pipe.
b. Thread the fixture wires through the middle rod, then
secure the middle rod onto the lower rod using the
threaded pipe.
c. Thread the fixture wires through the upper rod, then secure
the upper rod onto the middle rod using the threaded pipe.
d. Thread the fixture wires through the connection head, then
secure the connection head onto the upper rod using the
threaded pipe.
Repeat the rod connection for the other side
without wires.
Note: Length adjustable from 15-1/4" to 51-1/4". Use fewer
rods if shorter length is desired.
3. Thread the fixture wires through the plate,
cover, washer (E) and papillon nut (F),
secure the them onto the connection head by
tightening two papillon nuts (F).
4. Connect the smooth wire from the fixture
(marked) to black wire from the outlet box
(power), the ribbed wire from the fixture (unmarked)
to white wire from the outlet box (neutral) with the
wire connectors (C) provided.
Connect the copper wire from the fixture to the mounting strap unit (A) by securing it with the green ground screw,
then connect it to the house ground wire with wire connector (C).
Carefully put all the wires into outlet box.
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Papillon Nut (F)
Washer (E)
Finial (D)
Cover
Plate
Connection Head
Threaded Pipe
Threaded Pipe
Outlet Box
2
Upper Rod (6")
Threaded Pipe
Middle Rod (6")
Middle Rod (12")
Threaded Pipe
Threaded Pipe
Threaded Pipe
Lower Rod (12")
Max. 60W Candelabra base
bulb (not included)
Page 1 / 2
241028
