ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0269
Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

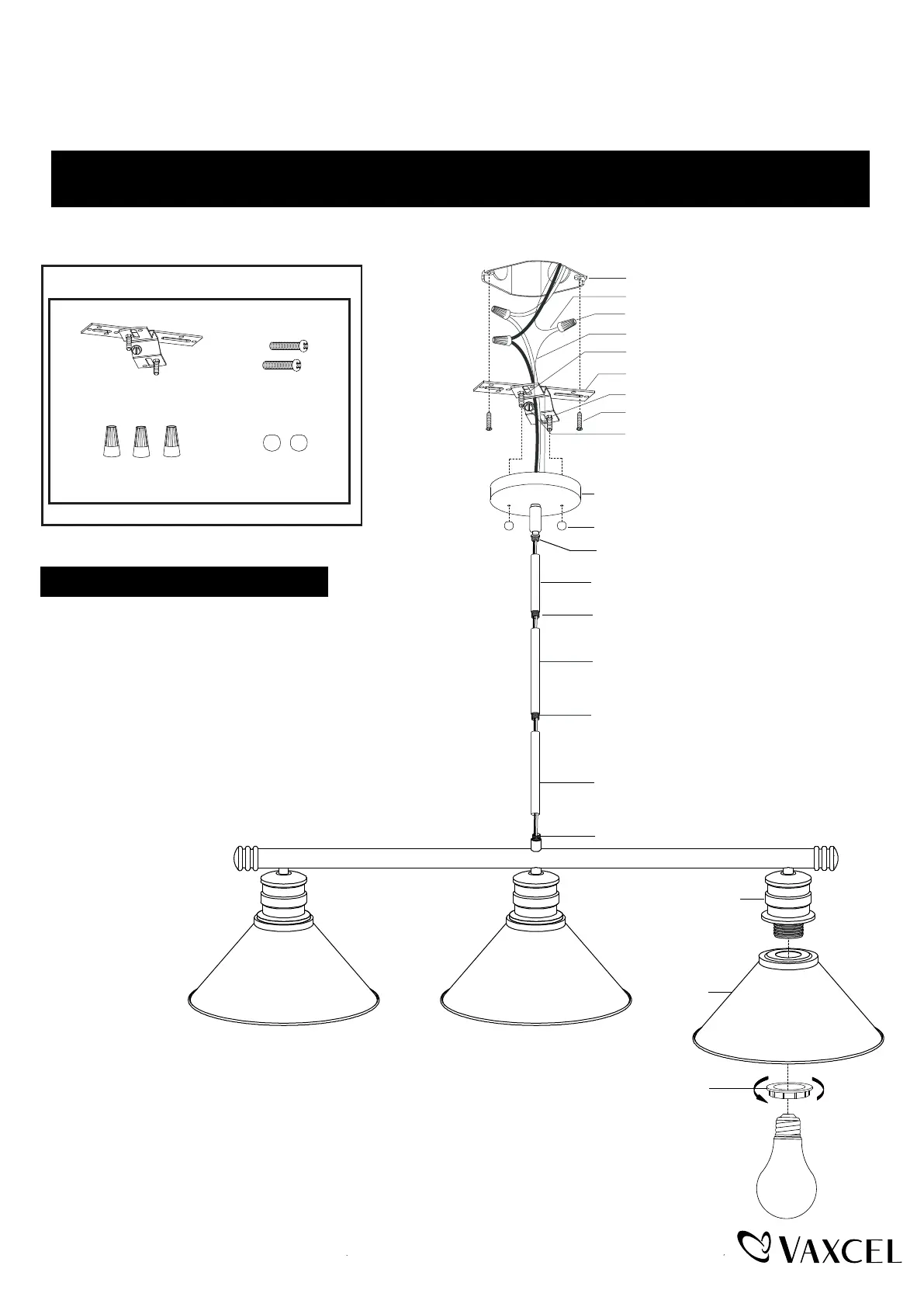

Mounting Screw (B)
Wire Connector (C)Bolt Nut (D)
Cross Bar Unit (A)
Canopy Kit
Bolt Nut (D)
OutletBox
HouseGround Wire
Wire Connector (C)
Fixture Ground Wire
Fixture Mounting Screw
Cross Bar Unit (A)
Green Ground Screw
Lock Nut
Mounting Screw (B)
Upper Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Threaded Pipe
Lower Rod
Threaded Pipe
Fixture
Shade
Socket Ring
Max.60W Type A Bulb
(not included)
1. Attach cross bar unit (A) to the outlet box using two
mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire from the fixture through the
lower rod, then secure the lower rod onto fixture using
the threaded pipe.
b. Thread the fixture wire through the middle rod and then
secure the middle rod onto the lower rod using the
threaded pipe.
c. Thread the fixture wire through the upper rod, then
secure the upper rod onto the middle rod using the
threaded pipe.
Note: Length
adjustable from
14-1/4" to 68-1/4". Use
fewer rods if shorter
length is desired.
3.
Thread the fixture wire through the canopy kit, then secure the
rod assembly to the set threaded pipe of the canopy kit.
Turn off the power at fuse or circuit box.
Installation Steps
220221
