ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

PD5024BN / PD5024OBB

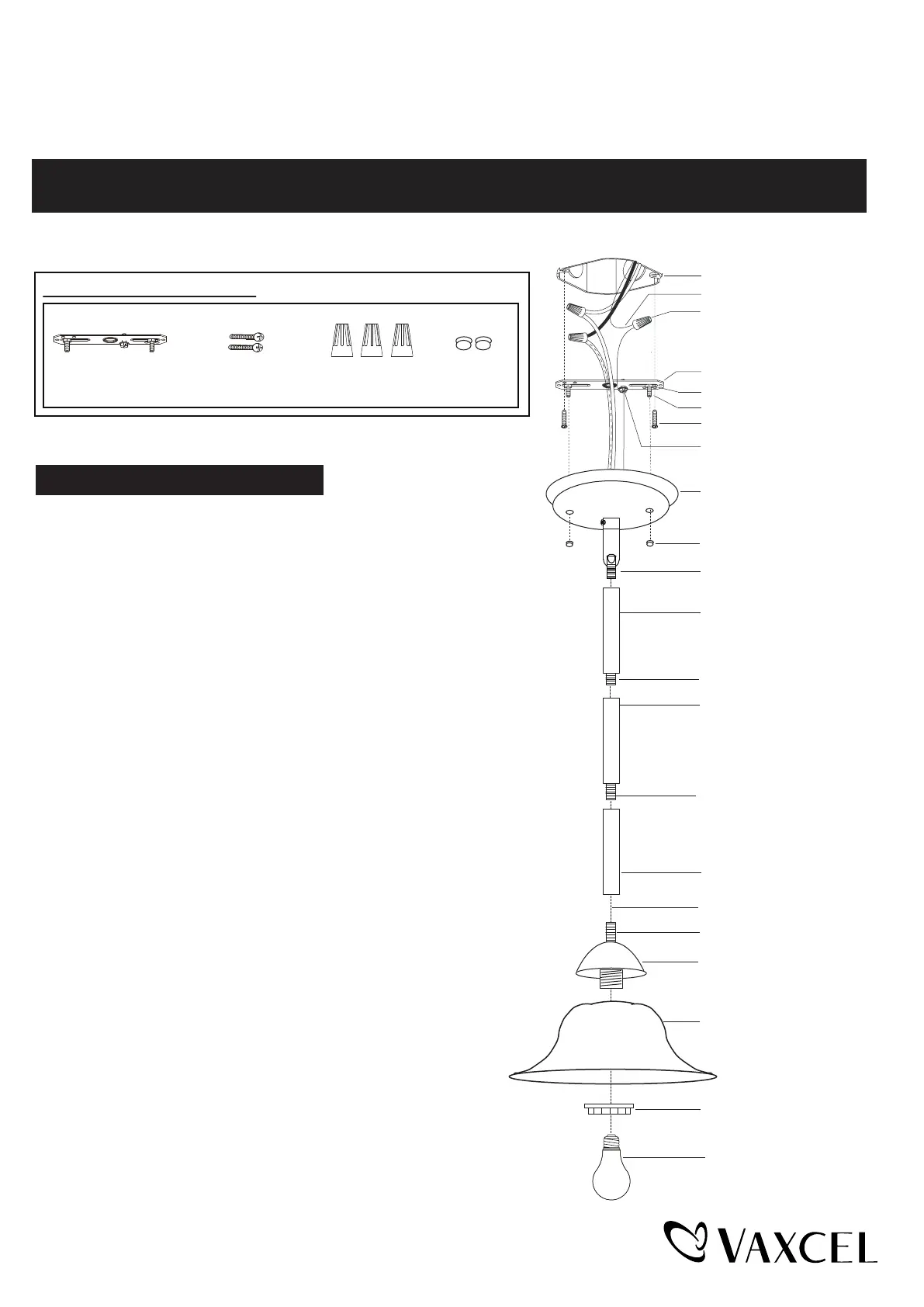

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Mounting Strap Unit (A)

Mounting Screw (B)Wire Connector (C)

Bolt Nut (D)

OutletBox

HouseGround Wire

Wire Connector (C)

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Lock Nut

Mounting Screw (B)

Canopy

Bolt Nut (D)

Upper Rod

Middle Rod

Low Rod

Fixture Wire

Socket Ring

Threaded Pipe

Threaded Pipe

Threaded Pipe

Threaded Pipe

Glass Holder

Glass Shade

Max. 100W Medium Base Bulb

(not included)

Turn off the power at fuse or circuit box

Installation Steps

1. Rod Connections:

a. Thread the fixture wire from the fixture through the lower rod, then

secure the lower rod onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod, and then secure the

middle rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, and then secure the

upper rod onto the middle rod using the threaded pipe.

Note: Length adjustable from 17" to 53-1/2". Use fewer rods if

shorter length is desired.

2.

Thread the fixture wire through the canopy kit, then secure the rod

assembly to the set threaded pipe of the canopy kit.

3.

Attach the

mounting strap unit (A)

to outlet box by using two mounting

screws

(B)

.

4. Pull out the source wires from the outlet box. Make wire connections

using wire connectors (C) as follows:

---Connect the smooth-coated wire (marked) from the fixture to the

black wire from the power source.

---Connect theribbed-coated wire (unmarked) from the fixture to the

white wire from the power source.

---Attach the fixture ground wire to the mounting strap unit (A) with

the green ground screw, then connect it to the house ground

wire with a wire connector (C).

Carefully put the wires back into the outlet box.

5. Attach the fixture canopy to the mounting strap unit (A) by

inserting the fixture mounting screws, then secure it with

two bolt nuts (D).

Page 1 / 2
