ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
C0300
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by
using two mounting screws (B).
2. Pull out the source wires from the outlet box. Make wire
connections using wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture
to the black wire from the power source.
---Connect the neutral wire (white insulation) from the
fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the
mounting plate unit (A) with the green ground screw,
then connect it to the house ground wire with the
wire connector (C) .
Carefully put the wires back into the outlet box.
3. Attach the fixture to the mounting strap unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
4. Install 1 x 60W Max. medium base bulb (not included). See
relamping label at socket area or packaging for maximum
wattage allowed.
231120

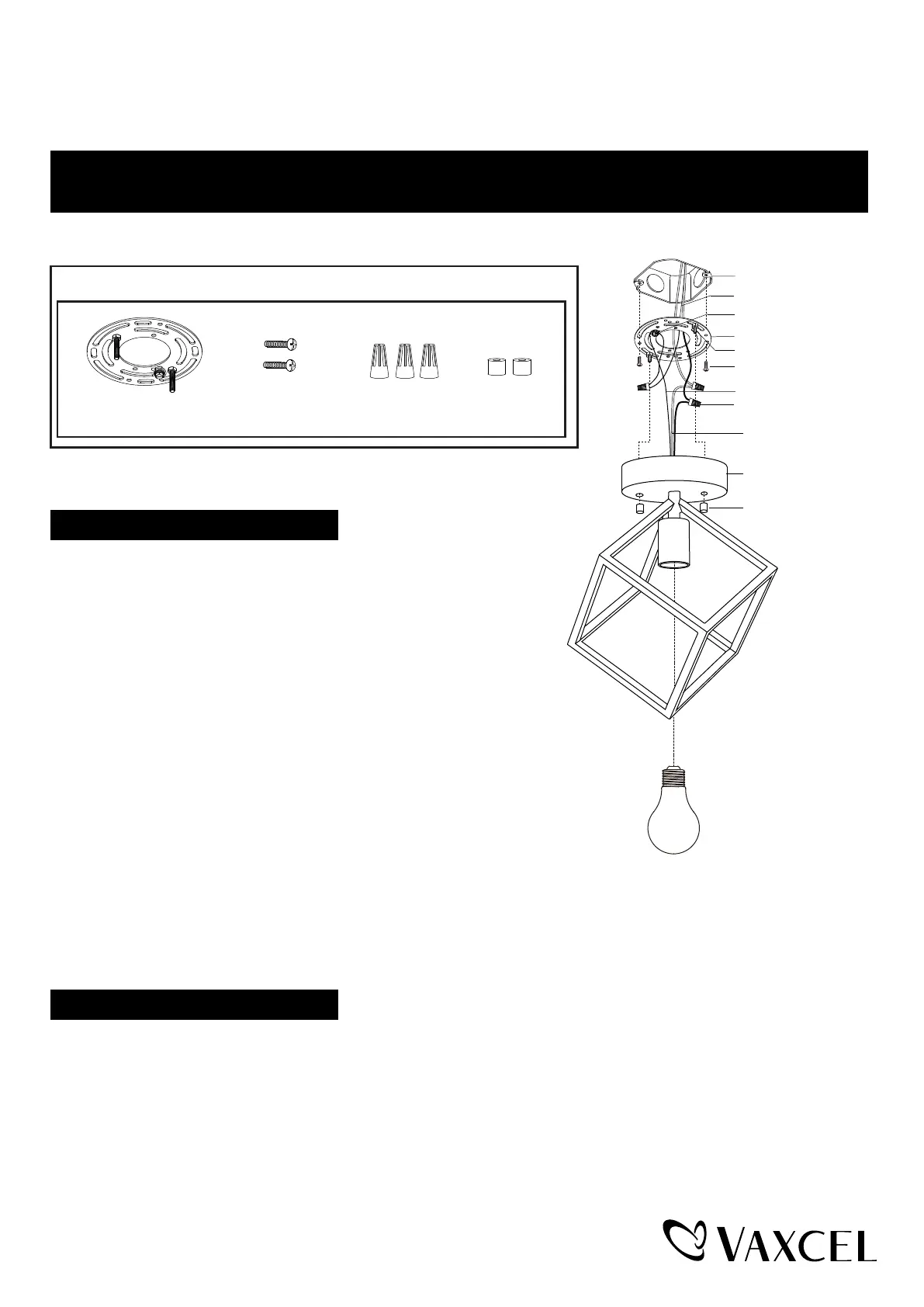

Wire Connector (C)Mounting Screw (B)
Mounting plate Unit (A)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Fixture
Fixture Wire
Fixture Mounting Screw
Mounting Plate Unit (A)
Bolt Nut (D)
Page 1 / 2
Max. 60W Medium Base Bulb
(not included)
