ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
C0273
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

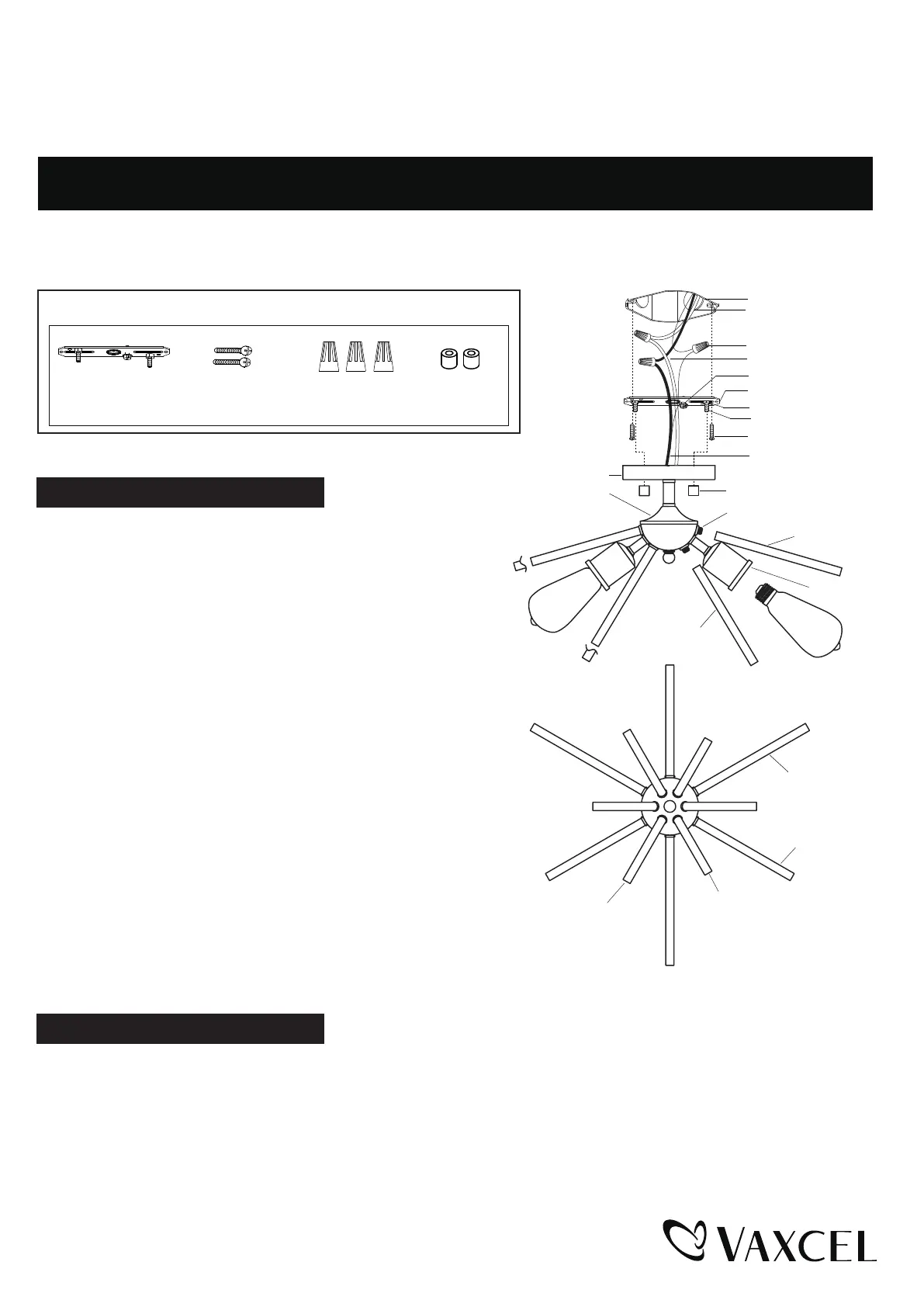

Hardware Package (included):
Bolt Nut (D)
Mounting Screw (B)
Mounting Strap Unit (A)
Wire Connector (C)
Outlet Box
House Ground Wire
Wire Connector (C)
Lock Nut
Mounting Strap (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Fixture Mounting Screw
Fixture Ground Wire
Bolt Nut (D)
Threaded Pipe
Fixture Canopy
Fixture
Long Rod
Socket
Rod
Long Rod
Max. 40W Type ST / Type A
Vintage Bulb
(not included)
Long Rod
Rod
Rod
Turn off the power at fuse or circuit box.
Turn ont he power at fuse or circuit box.
Installation Steps
1
.
Attach the
mounting strap unit (A)
to outlet box by using two
mounting screws
(B)
.
2. Screw 11" long rods and 8-1/2" rods to the other threaded
pipes of fixture.
3. Pull out the source wires from the outlet box. Make wire
connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from
the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting
strap unit (A) with the green ground screw. Then, depending
on local code, then connect it to the house ground wire with the
wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the fixture canopy to the mounting strap unit (A)
by inserting the fixture mounting screw, then secure it
with two bolt nuts (D).
5. Install 6 x 40W Max. medium base bulbs (not included).
Check relamping label at socket area or packaging for
maximum wattage allowed.
