Turn off the power at fuse or circuit box.
1. Attach the mounting strap
unit (A) to the outlet box by
using two mounting screws (B).
Note: The depth of threaded
pipe on the mounting strap
unit may need to be adjusted
to properly fit the fixture.

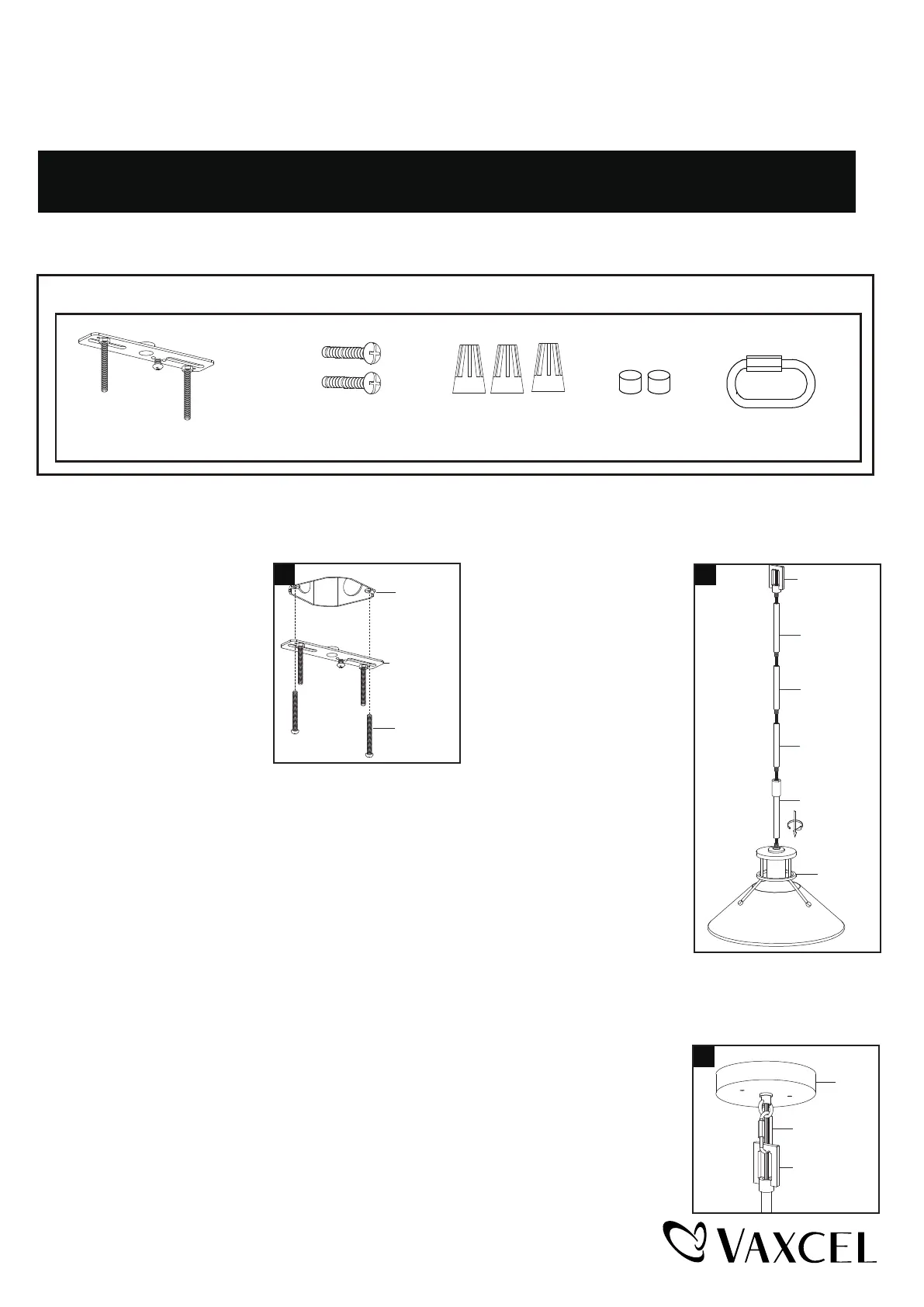

Page 1 of 2
Hardware Package (
included
):
Installation Steps
Mounting Strap Unit (A)Mounting Screw (B)
Wire Connector (C)
Bolt Nut (D)
Quick Link (E)
W
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
P0379
2. Rod connections:
a. Secure the bottom rod onto
the fixture using the
threaded pipe.
b. Thread the fixture wire
through the lower rod, then
secure the lower rod onto
the bottom rod using the
threaded pipe.
c. Thread the fixture wire
through the middle rod,
then secure the middle rod
onto the lower rod using
the threaded pipe.
d. Thread the fixture wire
through the upper rod, then
secure the upper rod onto
the middle rod using the
threaded pipe.
e. Thread the fixture wire
through the fixture loop,
then secure the fixture loop
onto the upper rod.
Note: The height can be adjusted to 63" by using the
rods. Use fewer rods if shorter height is desired.
3. Thread the fixture wires through the canopy, connect the fixture loop and canopy with the
quick link (E).
1
Mounting Strap
Unit (A)
Outlet Box
Mounting
Screw (B)
2
Bottom Rod
Fixture
Lower Rod
Middle Rod
Upper Rod
Fixture Loop
3
Fixture Loop
Quick Link (E)
Canopy
220602
