ASSEMBLY AND INSTALLATION

INSTRUCTIONS

C0264

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ

AND SAVE THESE INSTRUCTIONS.

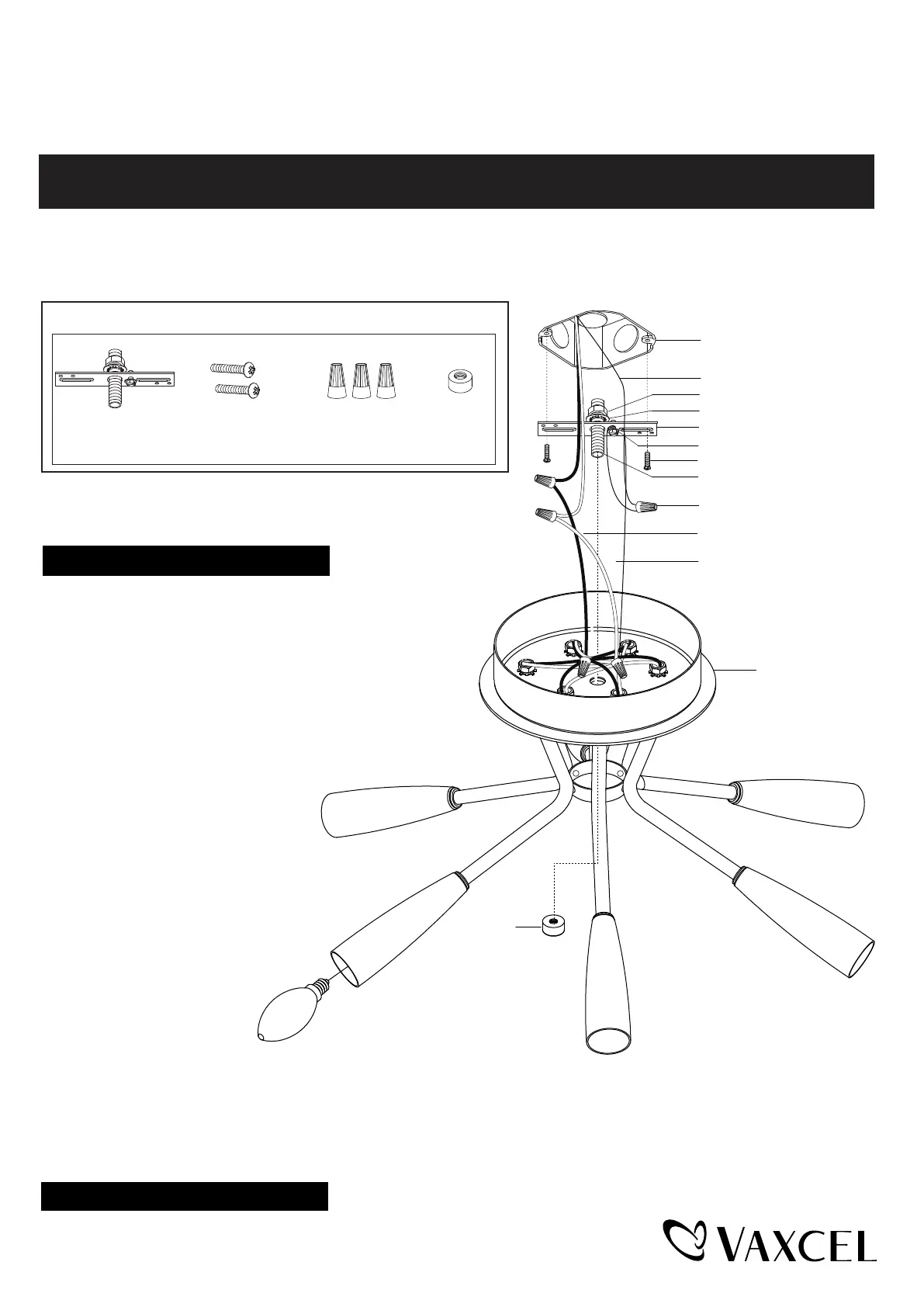

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Finial (D）Mounting Strap Unit (A)

Turn off the power at fuse or circuit box.

Installation Steps

1. Attach the mounting strap unit (A) to the

outlet box by using two mounting screws (B).

2. Pull out the source wires from the outlet box.

Make wire connections using wire connectors (C)

as follows:

• Connect the hot wire (black insulation) from the

fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from

the fixture to the white wire from the

power source.

• Attach the fixture ground wire

(bare wire) to the mounting strap

unit (A) with the green ground screw.

Then, depending on local code,

connect it to the house ground wire

with the wire connector (C).

Carefully put all of the wires back into

the outlet box.

3. Remove the finial (D) from the

mounting strap unit (A).

4. Attach the fixture to the

mounting strap unit (A) by

inserting the finial (D).

NOTE: Depth of threaded pipe may need to be adjusted to properly fit the finial.

5. Install 6 x 60W Max. candelabra base bulbs (not included). Check relamping label at socket area or packaging for

maximum wattage allowed.

Turn on the power at fuse or circuit box.

Mounting Screw (B)

Green Ground Screw

Wire Connector (C)

House Ground Wire

Fixture Ground Wire

Outlet Box

Fixture Wire

Threaded Pipe

Mounting Strap Unit (A)

Hex Nut

Washer

Fixture

Finial (D

)

Max.60W Type B Bulb

(not included)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

220228
